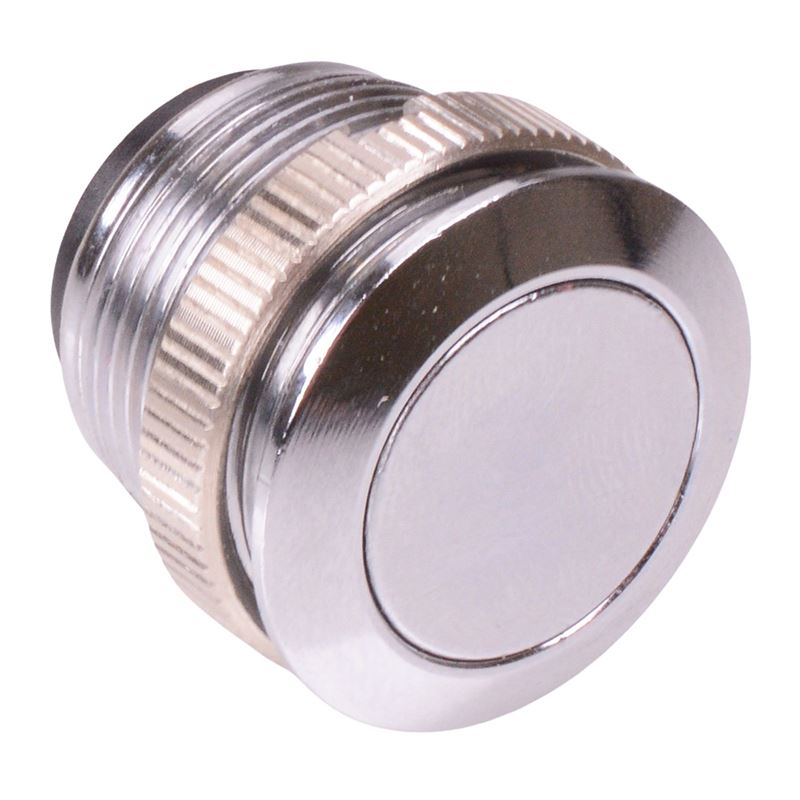

AV09C703D220K Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	0.05A 24VDC
Current Rating	0.05A
Illuminated	No
Material	Chrome Plated Brass
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +70°C
Panel Cut Out	19.2mm
Panel Thickness	1-6mm
Product Series	AV
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	24VDC

Description

The AV09C703D220K is a 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a chrome plated brass body and is suitable for a wide range of applications.

Off-(On) momentary function

SPST contacts

Chrome plated brass body

Tactile feedback

Panel cut-out: 19.2mm

Panel thickness: 1-6mm

Solder terminals

Rating: 50mA 24VDC
