AV09C703D290 Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST

AV09C703D290 Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST
AV09C703D290 Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST
0 reviews - Write a review
from
$21.71
Ex Tax: $21.71
10 or more $19.33
25 or more $18.24
50 or more $17.16
100 or more $16.29
  • Stock: In Stock
  • Model: SCJ013866
  • SKU: SCJ013866
Products Sold: 0
Product Views: 37
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPST
Contact MaterialGold Plated
Contact Rating0.05A 24VDC
Current Rating0.05A
IlluminatedNo
MaterialBrass
Mounting StylePanel
Number of Poles1
Number of Positions2
Operating Temperature-30°C to +70°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating24VDC
  • Description

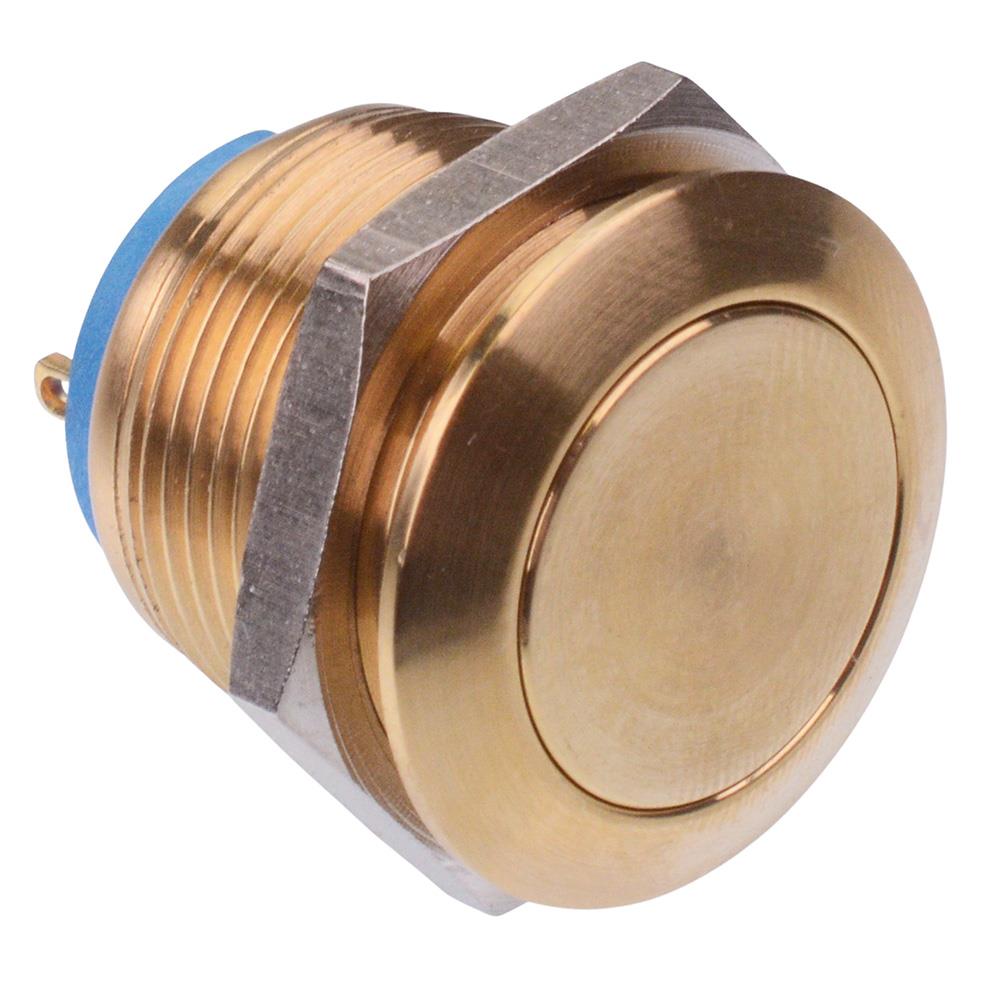

The AV09C703D290 is a 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a brass body and is suitable for a wide range of applications.

  • Off-(On) momentary function
  • SPST contacts
  • Brass body
  • Tactile feedback
  • Panel cut-out: 19.2mm
  • Panel thickness: 1-6mm
  • Solder terminals
  • Rating: 50mA 24VDC

    • AV09C703D290 Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST
