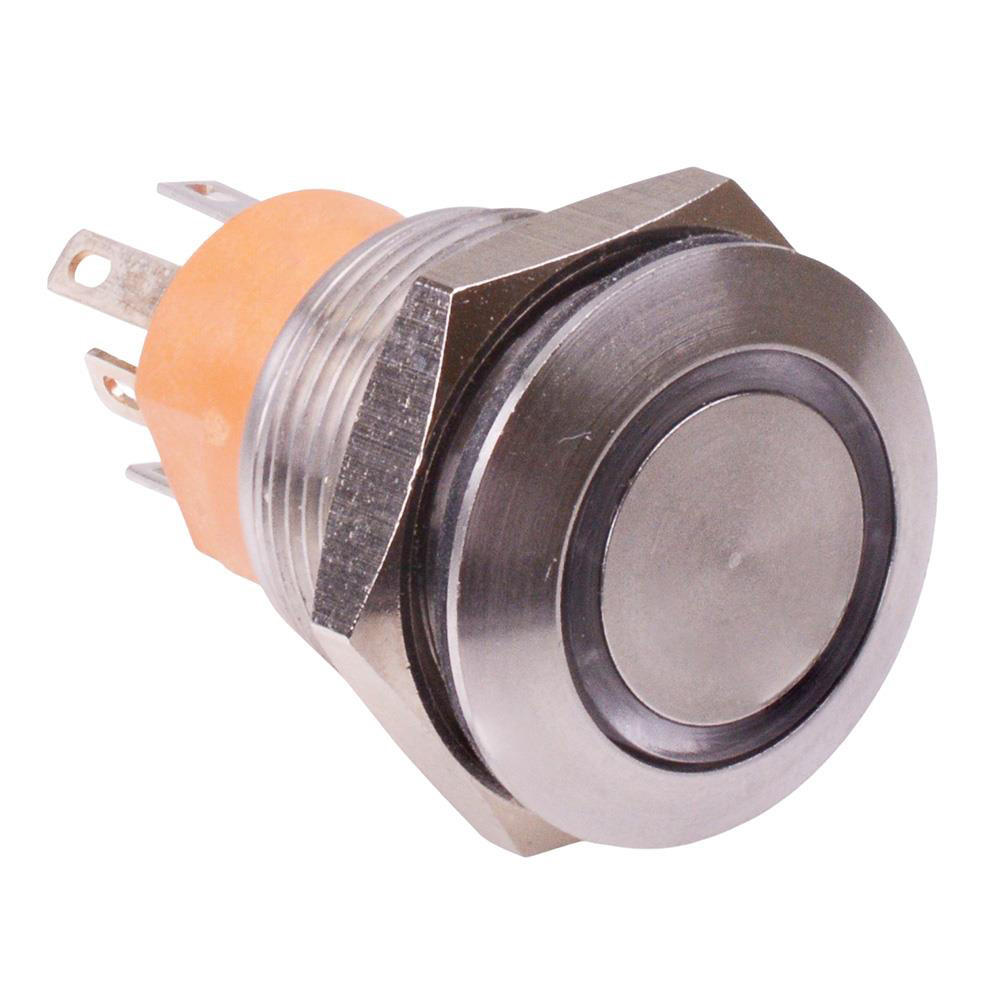

AV990220000840K Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC

AV990220000840K Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC
AV990220000840K Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC
0 reviews - Write a review
from
$26.09
Ex Tax: $26.09
10 or more $23.22
25 or more $21.92
50 or more $20.61
100 or more $19.56
  • Stock: In Stock
  • Model: SCJ013862
  • SKU: SCJ013862
Products Sold: 0
Product Views: 33
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
ColourAmber
Contact ConfigurationSPDT
Contact MaterialSilver
Contact Rating1A 30VDC
Current Rating1A
IlluminatedYes
Electrical Life250,000 Cycles
Illumination ColourAmber
Illumination Voltage2.3V
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force5N
Operating Temperature-30°C to +85°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Terminal TypeQuick Connect
Voltage Rating30VDC
  • Description
The AV990220000840K is an illuminated ring 19mm anti vandal push button switch featuring IP67 sealing and NO/NC contacts. The switch features an attractive and durable stainless steel design making it suitable for a wide range of applications including security.

  • NO/NC contacts
  • Momentary function
  • Amber 2.3V 20mA LED
  • Panel cut-out: 19.2mm
  • Solder/quick connect terminals
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Material: stainless steel
  • Protection level: IP67

    • AV990220000840K Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC
