AV9SLD2086002 Red LED Off-(On) Momentary 19mm Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	0.05A 24VDC
Current Rating	0.05A
Illuminated	Yes
Illumination Colour	Red
Material	Nickel Plated Brass
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to +70°C
Panel Cut Out	19.2mm
Panel Thickness	1-6mm
Product Series	AV
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	24VDC

Description

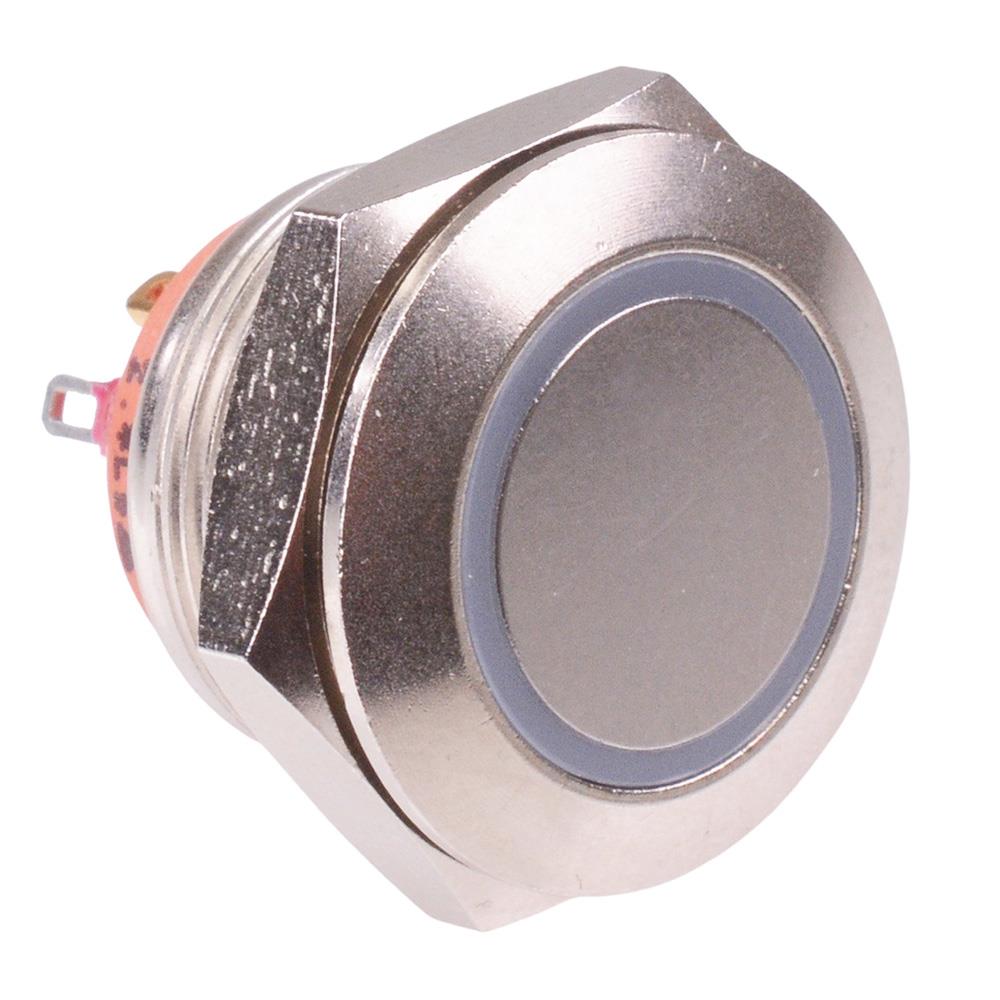

The AV9SLD2086002 is a red illuminated 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a chrome plated body and is suitable for a wide range of applications.

Red 2V LED

Off-(On) momentary function

SPST contacts

Nickel plated brass body

Tactile feedback

Panel cut-out: 19.2mm

Solder terminals

Rating: 50mA 24VDC
