AV9V12F1020840K Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67

AV9V12F1020840K Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67
AV9V12F1020840K Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67
0 reviews - Write a review
from
$43.99
Ex Tax: $43.99
10 or more $39.15
25 or more $36.95
50 or more $34.76
100 or more $32.99
  • Stock: In Stock
  • Model: SCJ013820
  • SKU: SCJ013820
Products Sold: 0
Product Views: 39
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
Contact ConfigurationSPDT
Contact Rating1A 30VDC
Current Rating1A
IlluminatedNo
Electrical Life250,000 Cycles
Illumination ColourNon Illuminated
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Force5N
Operating Temperature-30°C to +85°C
Panel Cut Out19.2mm
Panel Thickness1-6mm
Product SeriesAV
Terminal TypeWires
Voltage Rating30VDC
  • Description

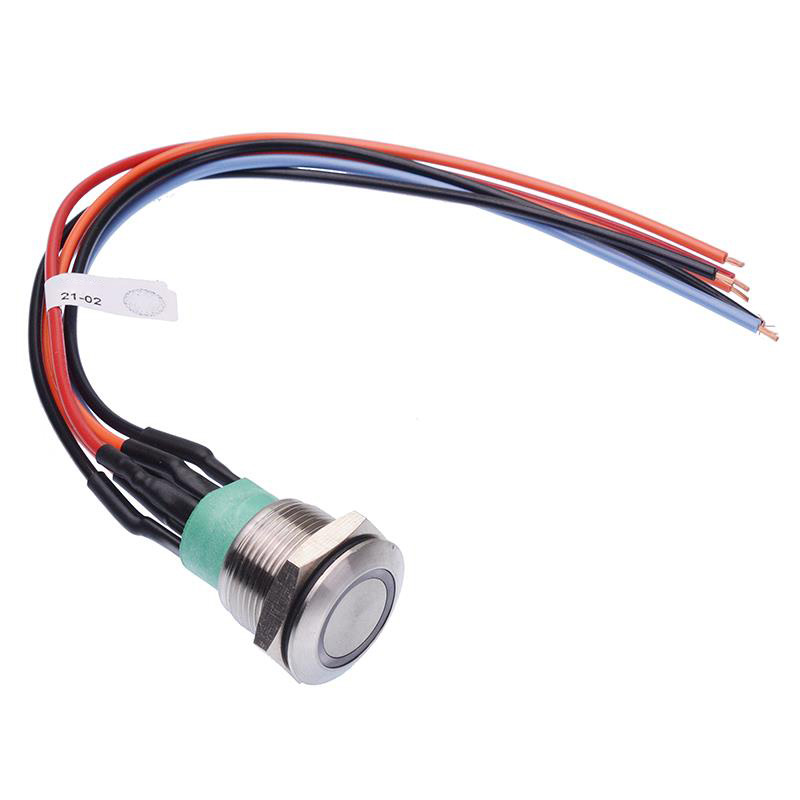

The AV9V12F1020840K is a security vandal resistant push button switch with green illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Green illuminated ring LED
  • 12V illumination voltage
  • Flat actuator
  • Long life
  • 20cm flying leads
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Dimensions: 25.9 x 22mm (length x diameter)

    • AV9V12F1020840K Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67
