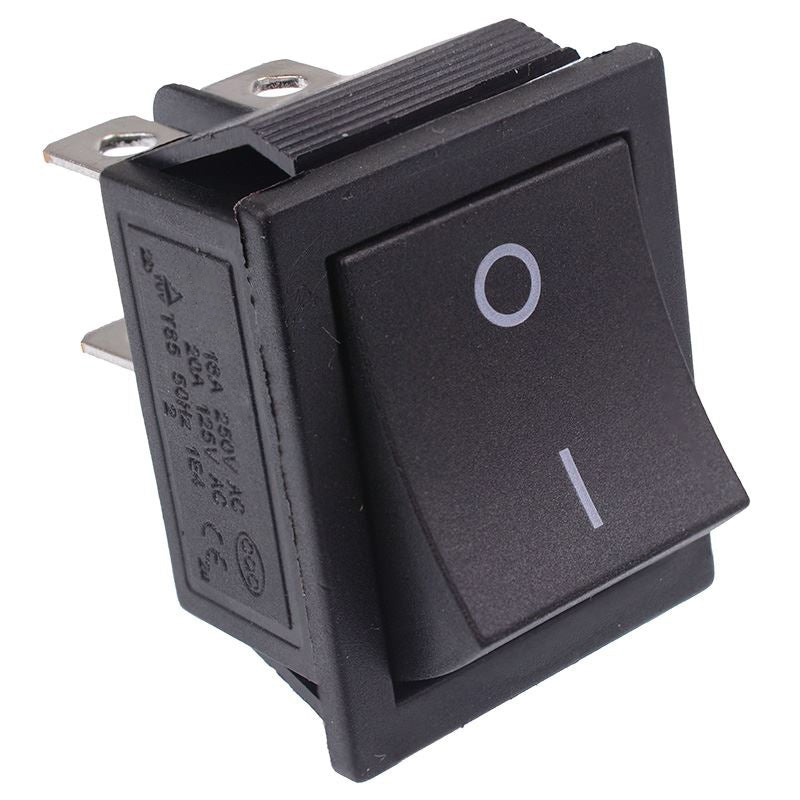

Black Large On-Off Rectangle Rocker Switch DPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	DPST
Contact Rating	15A 250VAC
Current Rating	15A
Illuminated	No
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	28.5 x 21.5mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.

On-off action

DPST contacts

6.3mm quick connect terminals

28.5 x 21.5mm panel cut-out

Maximum current: 15A

Maximum voltage: 250VAC

Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
