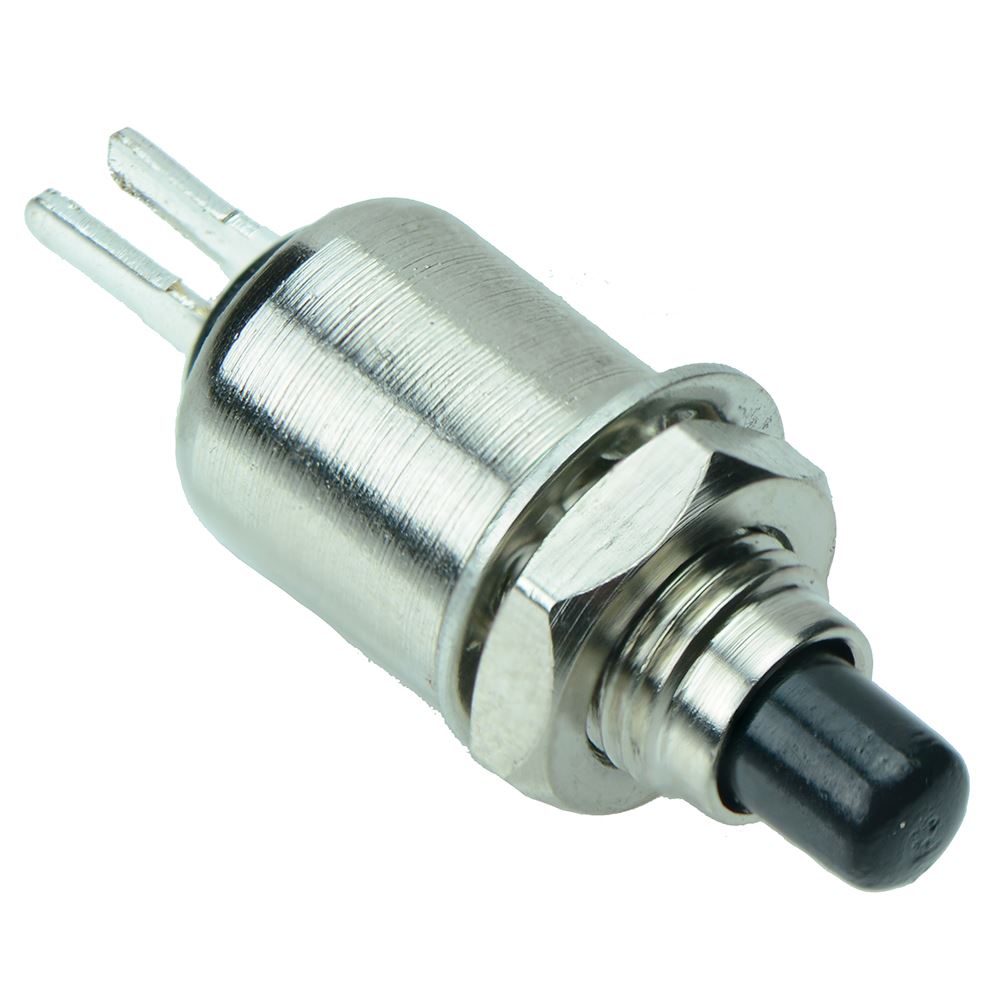

Black Microminiature 5mm Momentary Off-(On) Push Button SPST 0.5A

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	0.5A 125VAC
Current Rating	0.5A
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Material	Nickel Plated Brass
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	5mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	125VAC

Description

Microminiature push button switch suitable for low current applications where small dimensions are required.

Aluminium body housing with black button colour

0.5A Current Rating

SPST Off-(On)

5mm Panel Cut Out
