Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST

Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
0 reviews - Write a review
from
$4.47
Ex Tax: $4.47
10 or more $3.98
25 or more $3.75
50 or more $3.53
100 or more $3.35
  • Stock: In Stock
  • Model: SCJ014332
  • SKU: SCJ014332
Products Sold: 0
Product Views: 40
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
ColourBlack
Contact ConfigurationSPST
Contact Rating3A 250VAC
Current Rating3A
IlluminatedNo
Electrical Life50,000 Cycles
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +65°C
Panel Cut Out16mm
Panel Thickness4mm Max
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating250VAC
  • Description

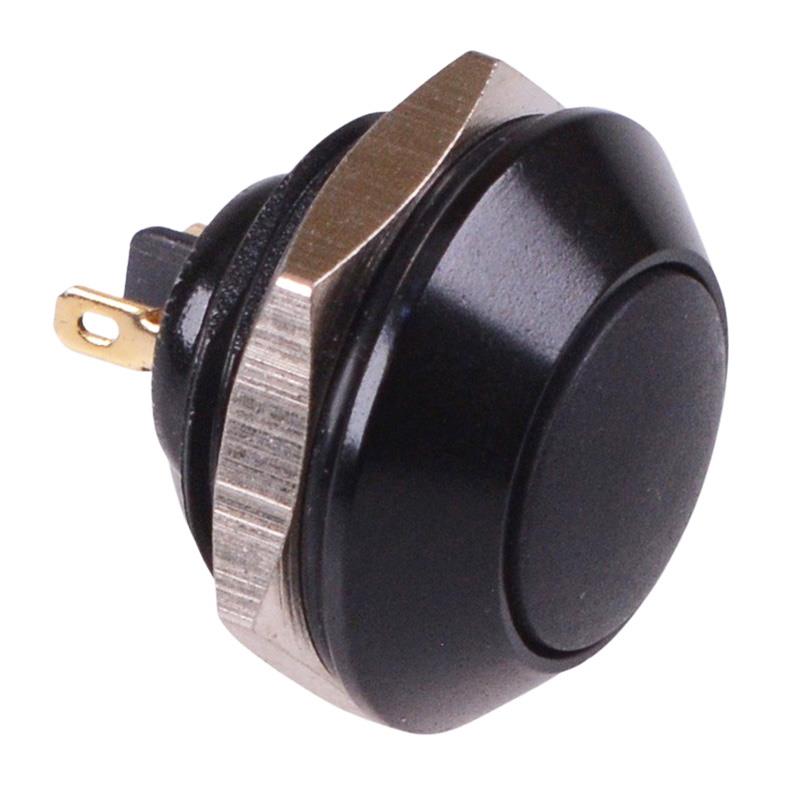

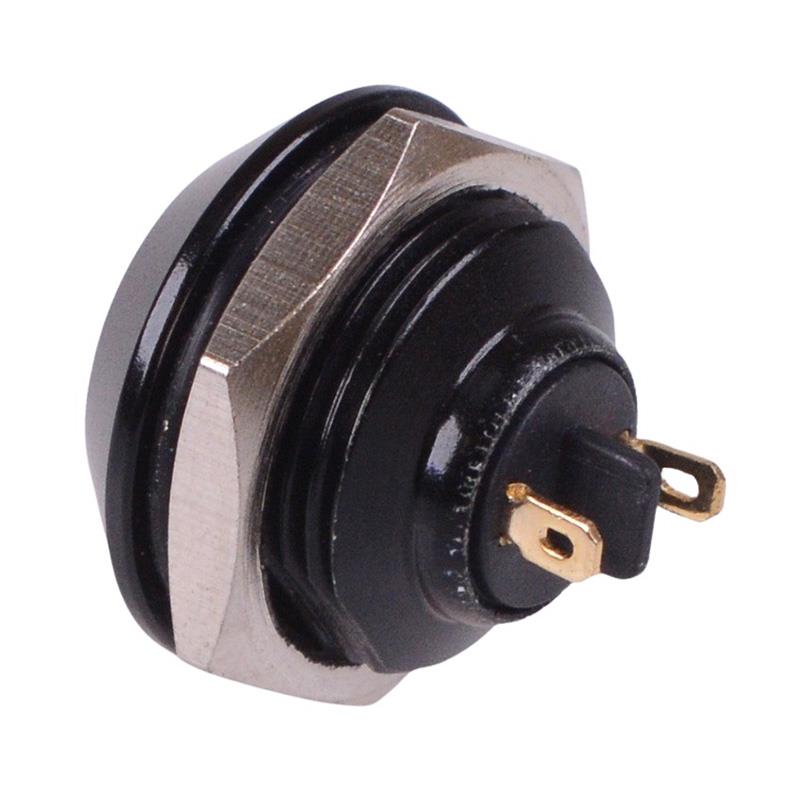

Black momentary push button switch featuring a round actuator and normally open contacts. The switch features a stainless steel housing and is suitable for mounting in 16mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

  • Momentary operation
  • SPST-NO contacts
  • IP65 protection rating
  • Solder terminals
  • Panel cut-out: 16mm
  • Panel thickness: 4mm max
  • Rating: 3A 250V
  • Dimensions: 20.0 x 19.8mm (height x diameter)

    • Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
