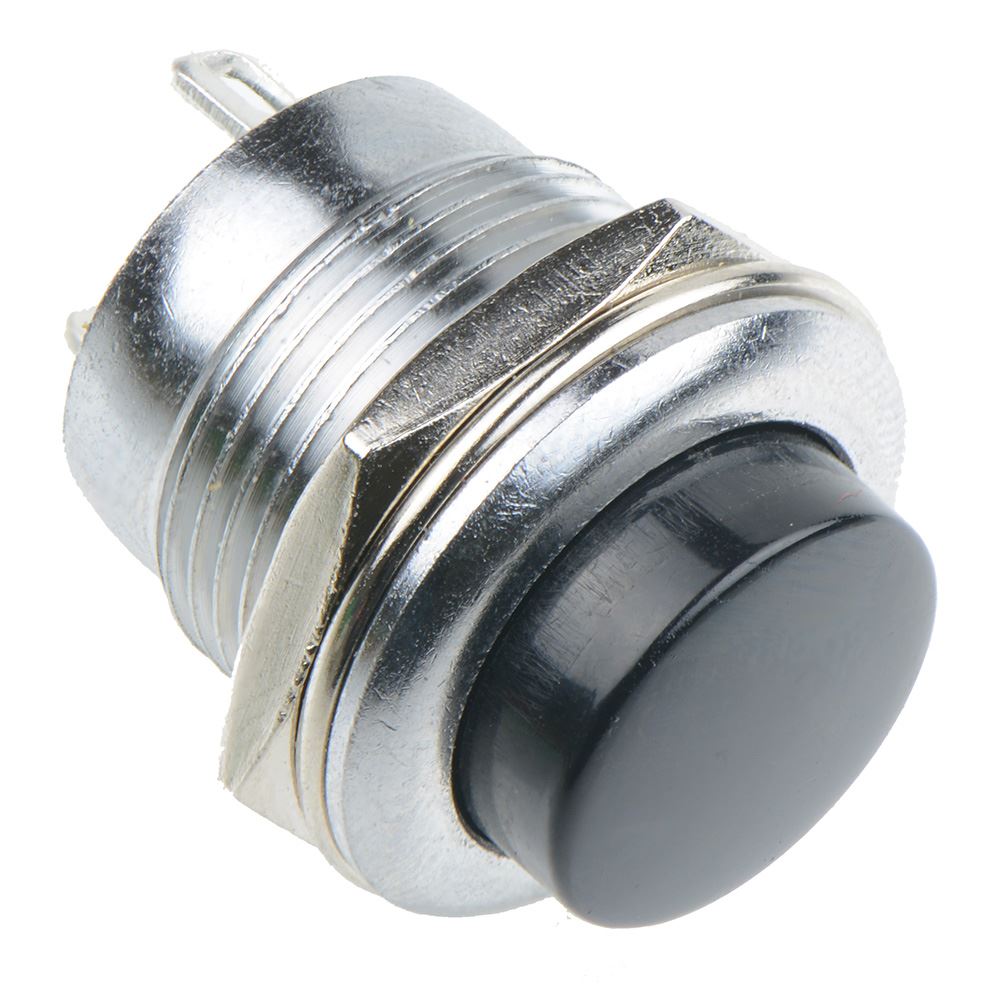

Black Off-(On) Metal Low Profile 16mm Round Momentary Push Button Switch 3A SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	6A 125VAC, 3A 250VAC
Current Rating	6A @ 125VAC
Illuminated	No
Electrical Life	10000 Cycles Min
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	0°C to +85°C
Panel Cut Out	16mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	250VAC

Description

High quality metal push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a nickel plated brass body and locking nut. Can be used for a wide variety of applications.

Colour: Black Button

Rating: 6A 125VAC, 3A 250VAC

Off-(On) momentary action

Nickel Plated Metal Housing

16mm Panel Cut Out

12.9mm Button Diameter

Solder Lug Terminals

SPST contacts

6mm maximum panel thickness
