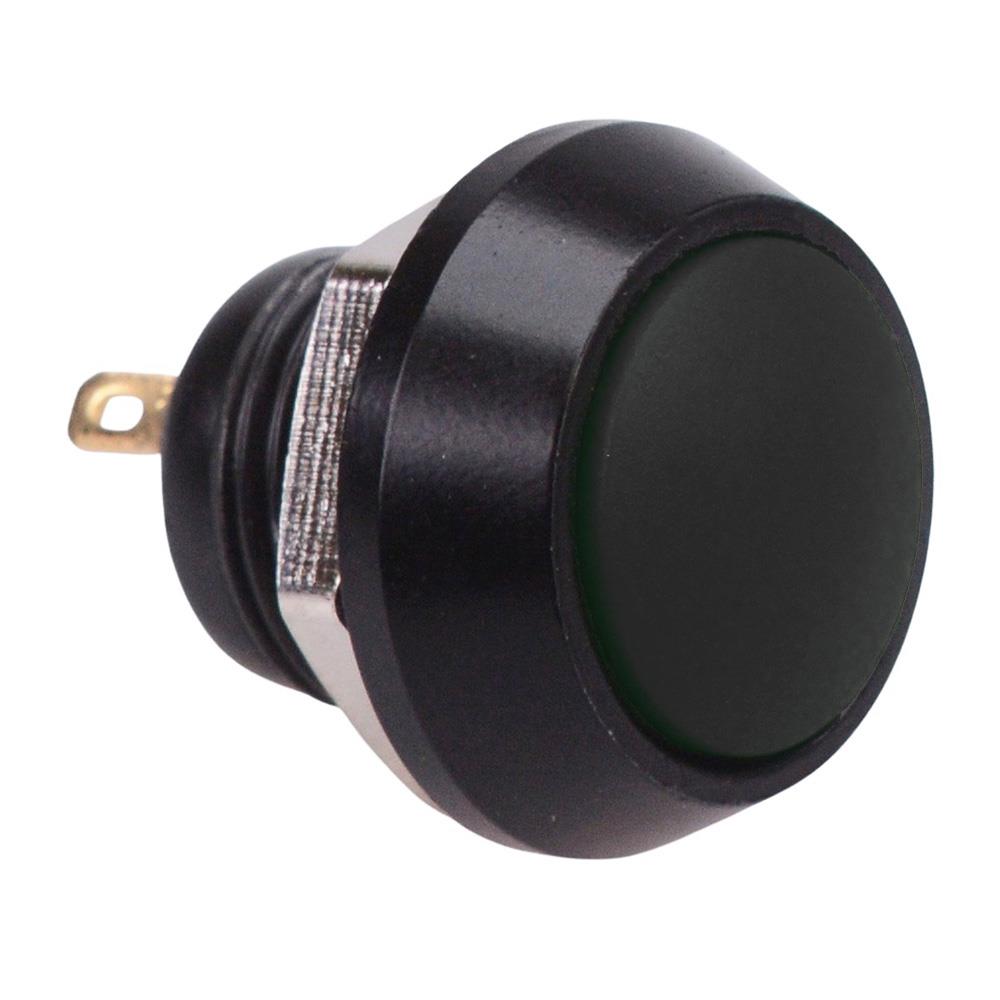

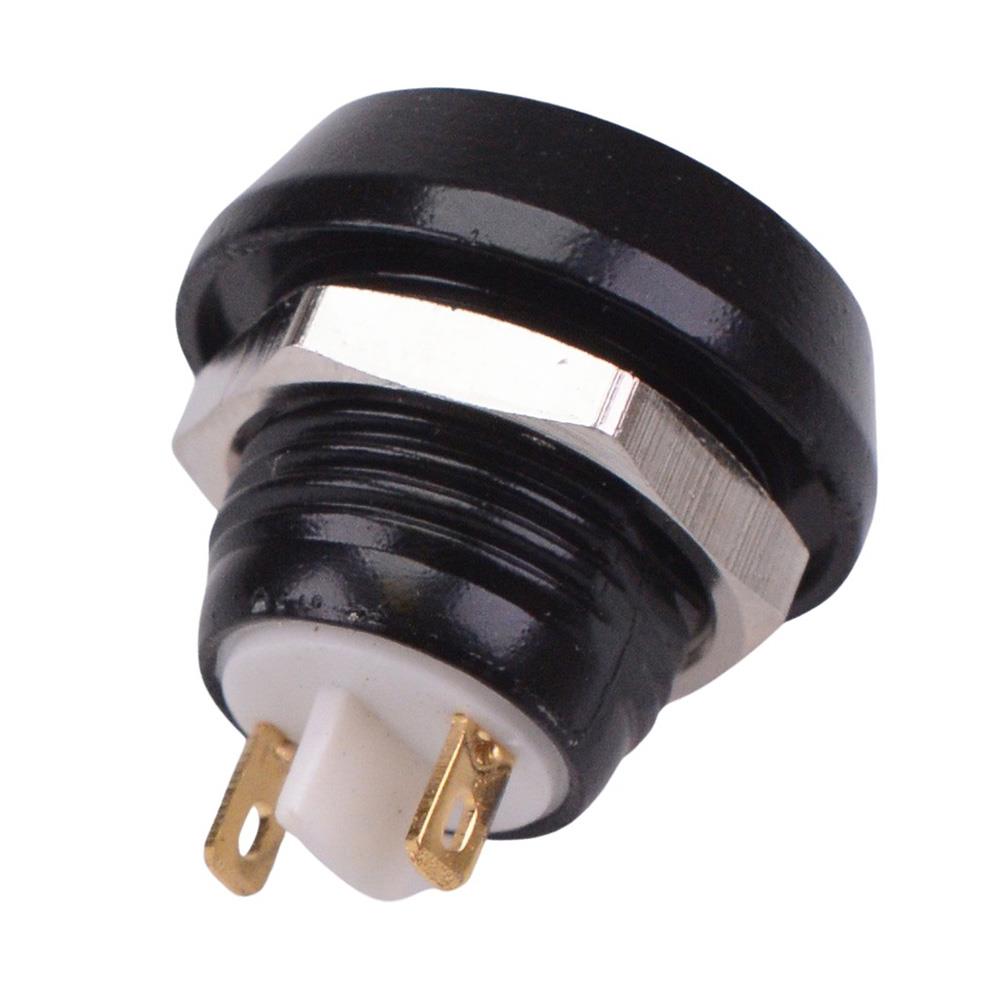

Black Off-(On) Momentary Vandal Resistant Push Button Switch 2A SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	2A 48VDC
Current Rating	2A
Illuminated	No
Electrical Life	200,000 Cycles
Illumination Colour	Non Illuminated
Material	Zinc Alloy
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-20°C to +55°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	48VDC

Description

Black vandal resistant push button switch featuring a round actuator and robust zinc alloy body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.

Momentary Off-(On) action

SPST contacts

Zinc alloy body material

12mm panel cut-out

2A 48VDC rating

Solder terminals

1,000,000 mechanical cycles

Dimensions: 19.3 x 17.5mm (height x diameter)
