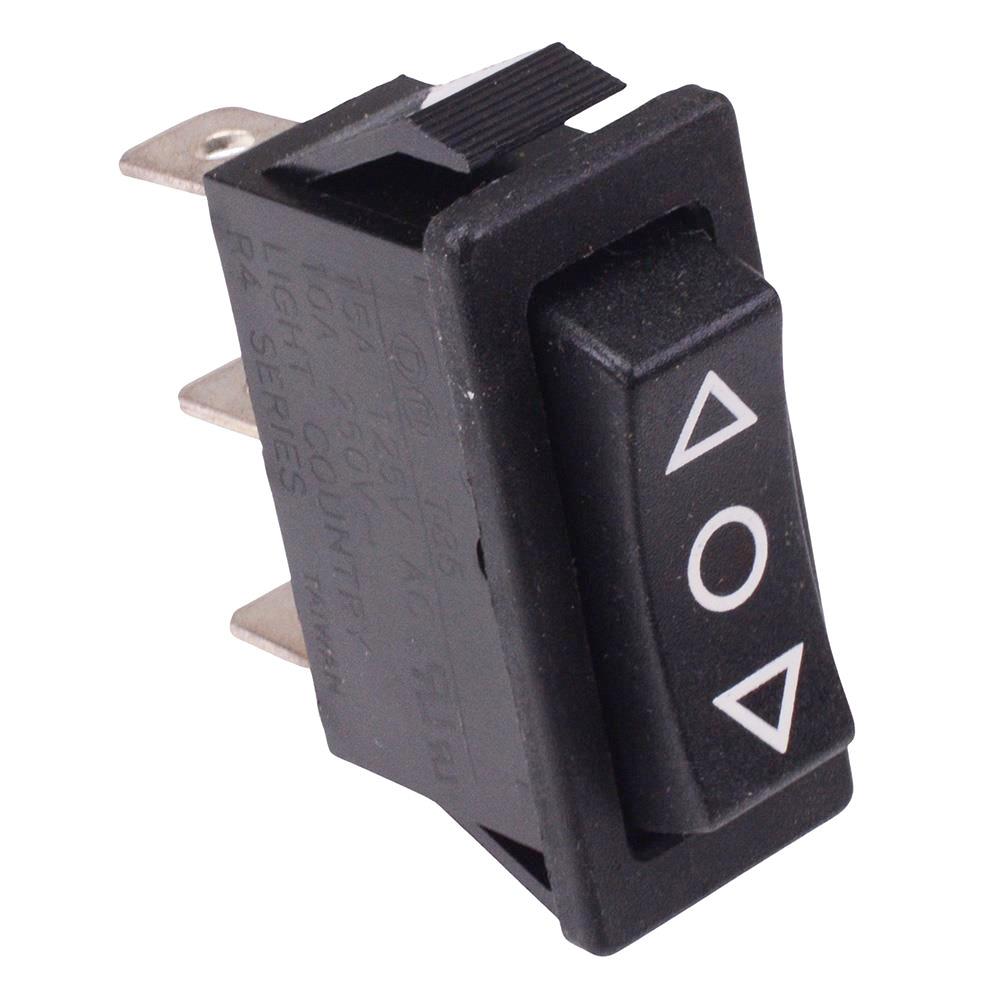

Black (On)-Off-(On) Momentary Rocker Switch 30 x 11mm SPDT 16A

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Material	Silver Alloy
Contact Rating	16A 250VAC
Current Rating	16A
Illuminated	No
Electrical Life	10,000 Cycles
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-20°C to +85°C
Panel Cut Out	30 x 11mm
Panel Thickness	0.7-3mm
Switch Operation	(On)-Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Black (On)-Off-(On) momentary rocker switch featuring 30 x 11mm panel cut-out and SPDT contacts. The switch features a 16A 250VAC rating and quick connect terminals, suitable for a wide range of applications.

SPDT contacts

(On)-Off-(On) momentary function

Rating: 16A 250VAC

Panel cut-out: 11 x 30mm

6.35mm quick connect terminals
