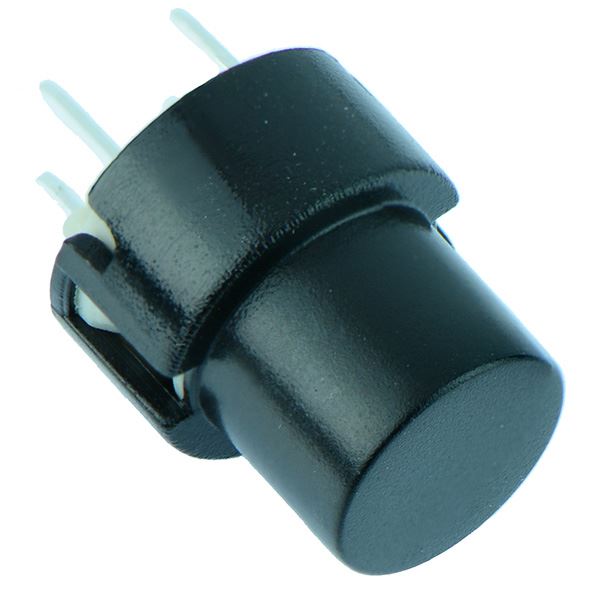

Black Round PCB Keyboard Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Black
Contact Configuration	SPST
Contact Rating	30mA 30VDC
Current Rating	30mA
Illumination Colour	Non Illuminated
Mounting Style	PCB
Number of Positions	2
Operating Force	200gf
Operating Temperature	+10°C to +60°C
Pitch	5.2mm
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	30VDC

Description

Black round miniature keyboard switch featuring SPST contacts suitable for direct PCB mounting.

Colour: black

Voltage rating: 30V DC

Current rating: 30mA

Button height: 7.0mm

Button travel: 0.7mm

Operating force: 200±50gf

Dimensions: 17.8 x 12.0mm (height x diameter)
