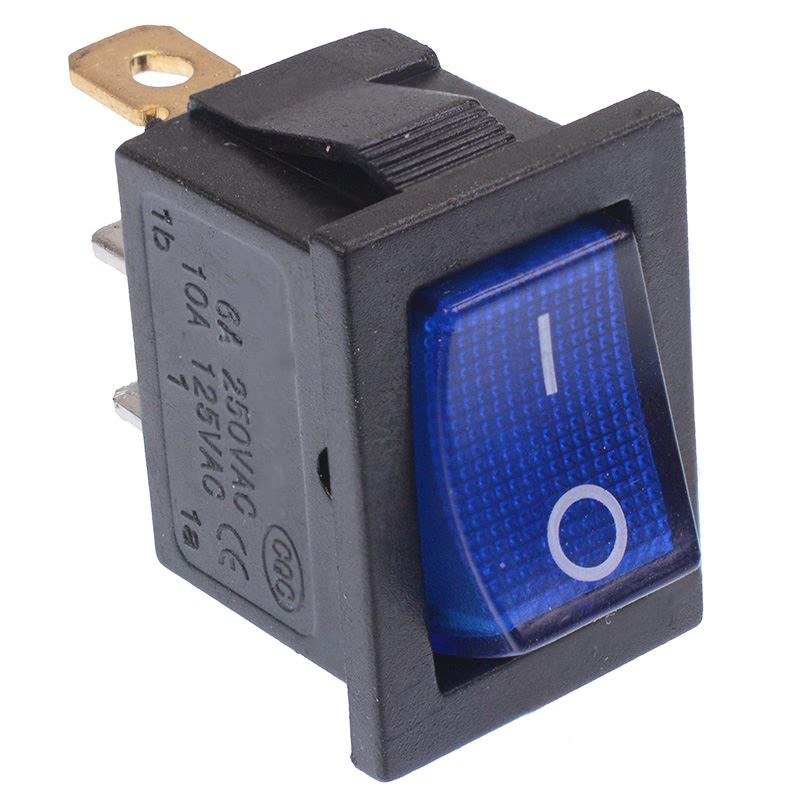

Blue illuminated On-Off Rectangle Rocker Switch 12V SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Blue
Contact Configuration	SPST
Contact Rating	6A 250VAC
Current Rating	6A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Blue
Illumination Voltage	12VDC
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	19.2 x 13mm
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

illuminated rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

On-off action

SPST contacts

12V illumination

4.8mm quick connect terminals

Panel cut-out: 19.2 x 13mm

Dimensions: 25 x 21 x 15mm (Height x Length x Width)

Maximum current: 6A

Maximum voltage: 250VAC
