Blue LED 24V On-On Latching 19mm Vandal Push Button Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Blue
Contact Configuration	SPDT
Contact Rating	5A 250VAC
Current Rating	5A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Blue
Illumination Voltage	24VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	19mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

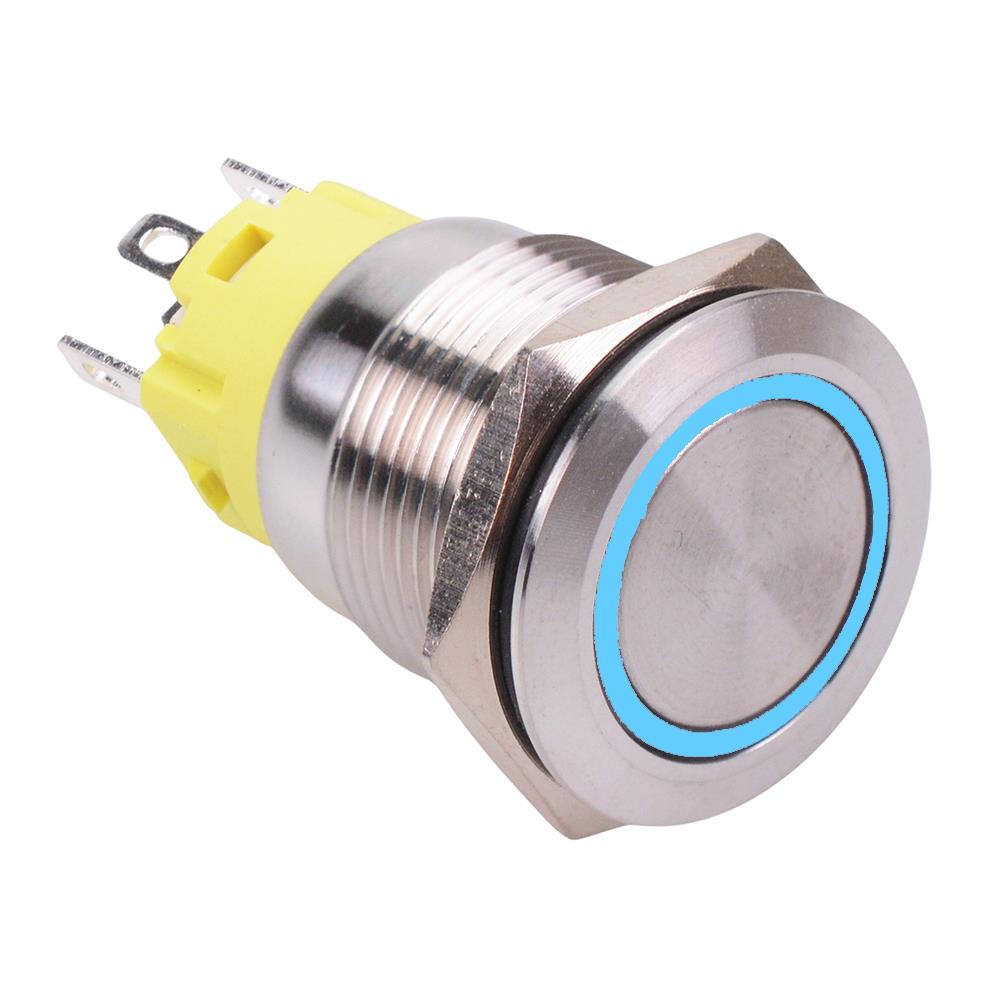

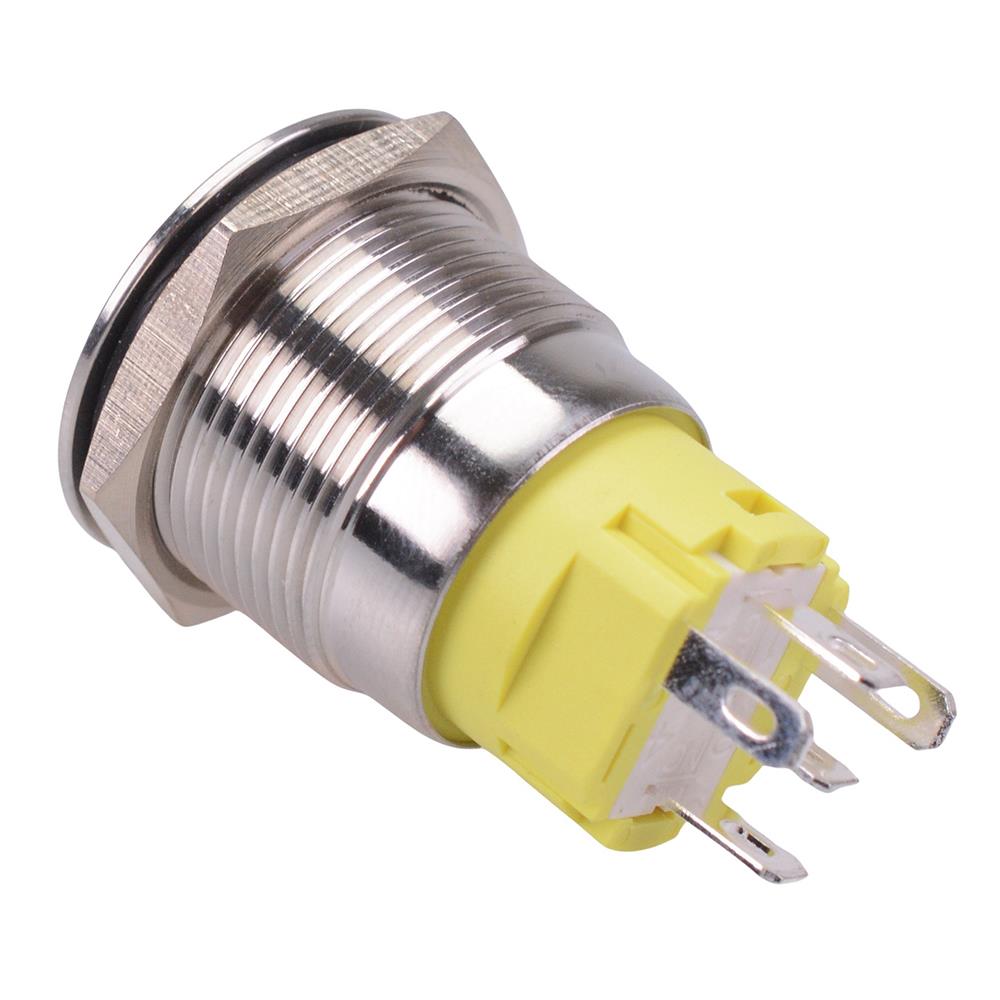

Latching vandal resistant 19mm push button switch featuring a blue 24V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 24V applications.

Latching action

Blue LED

24V illumination voltage

IP65 protection rating

19mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 5A 250VAC

Dimensions: 35.1 x 22mm (length x diameter)
