Blue LED 3V On-(On) Momentary 16mm Vandal Push Button Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Blue
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Blue
Illumination Voltage	3VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	16mm
Switch Operation	On-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

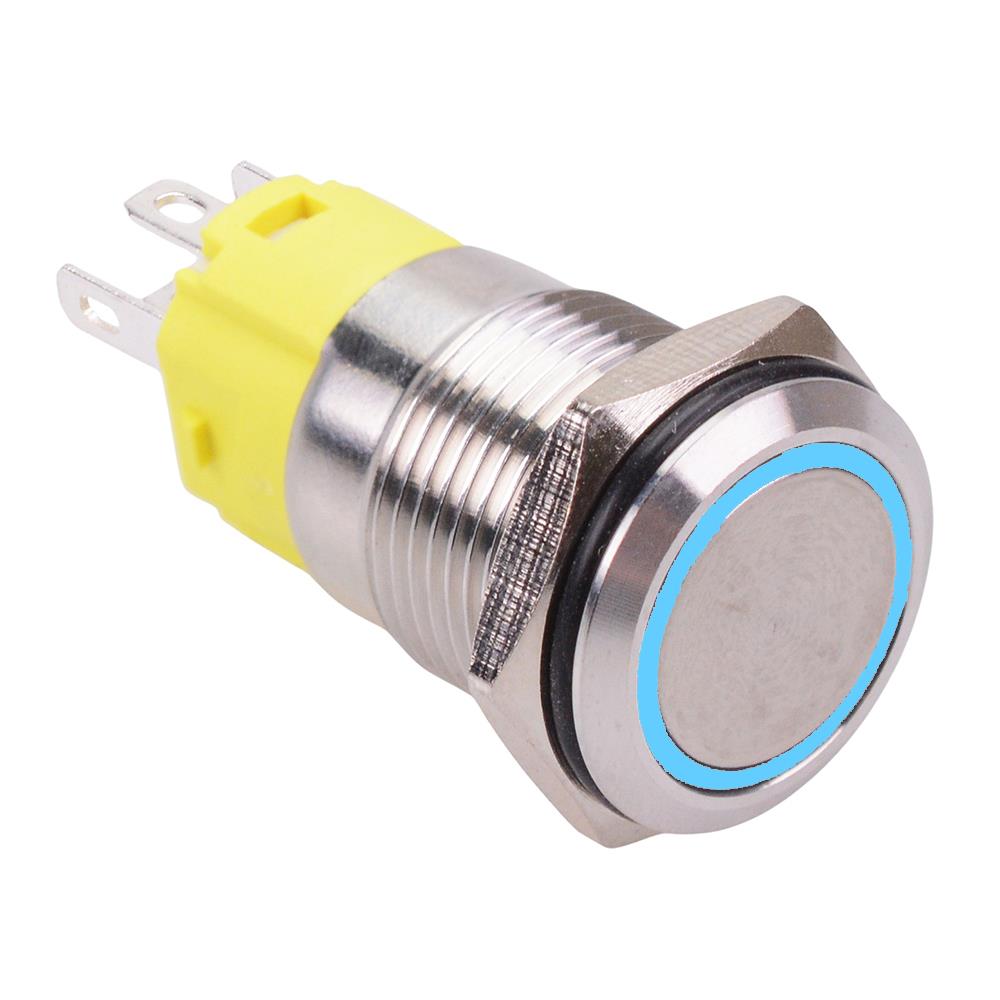

Momentary vandal resistant push button switch featuring a blue 3V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of low voltage applications.

Momentary action

Blue LED

3V illumination voltage

IP65 protection rating

16mm panel cut-out diameter

NO/NC contacts

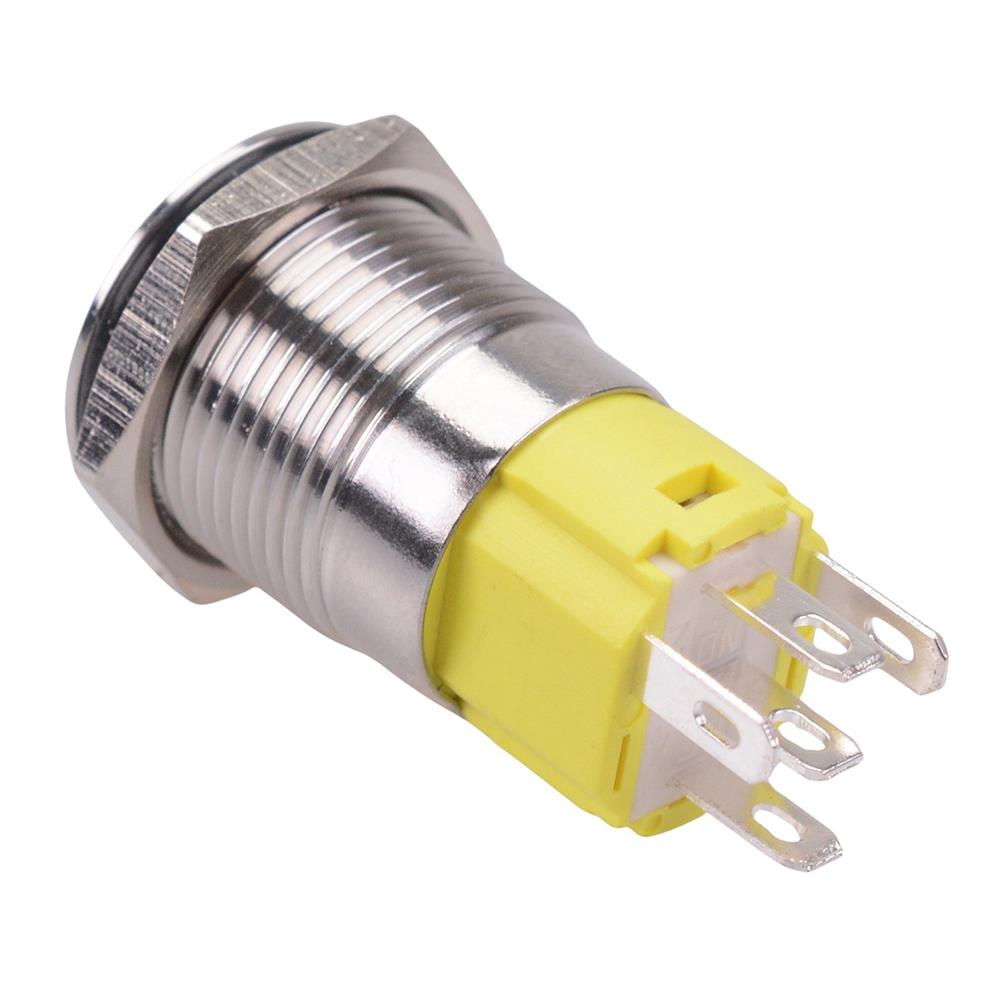

2.8mm terminals

Rating: 3A 250VAC

Dimensions: 36.7 x 18mm (length x diameter)
