Blue LED Off-(On) Momentary 12mm Vandal Resistant Push Button Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Blue
Contact Configuration	SPDT
Contact Rating	2A 36VDC
Current Rating	2A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Blue
Illumination Voltage	12VDC
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	36VDC

Description

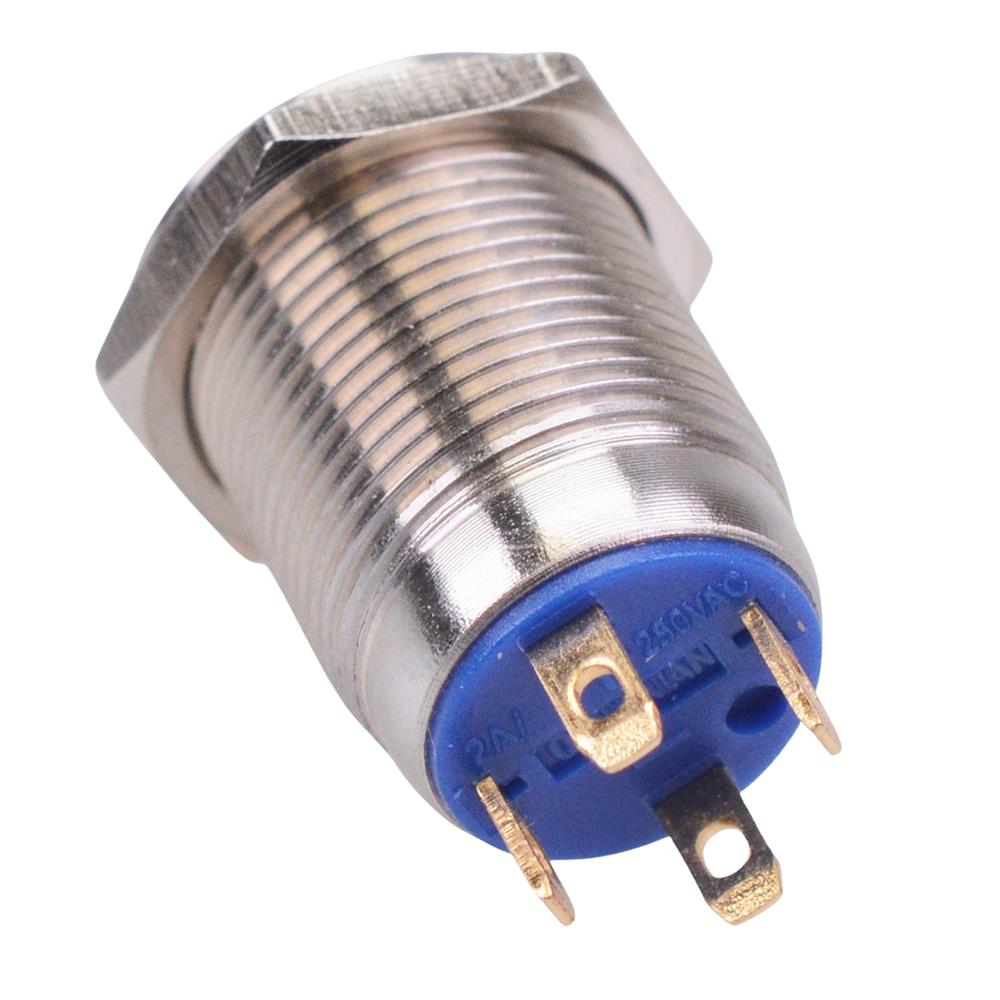

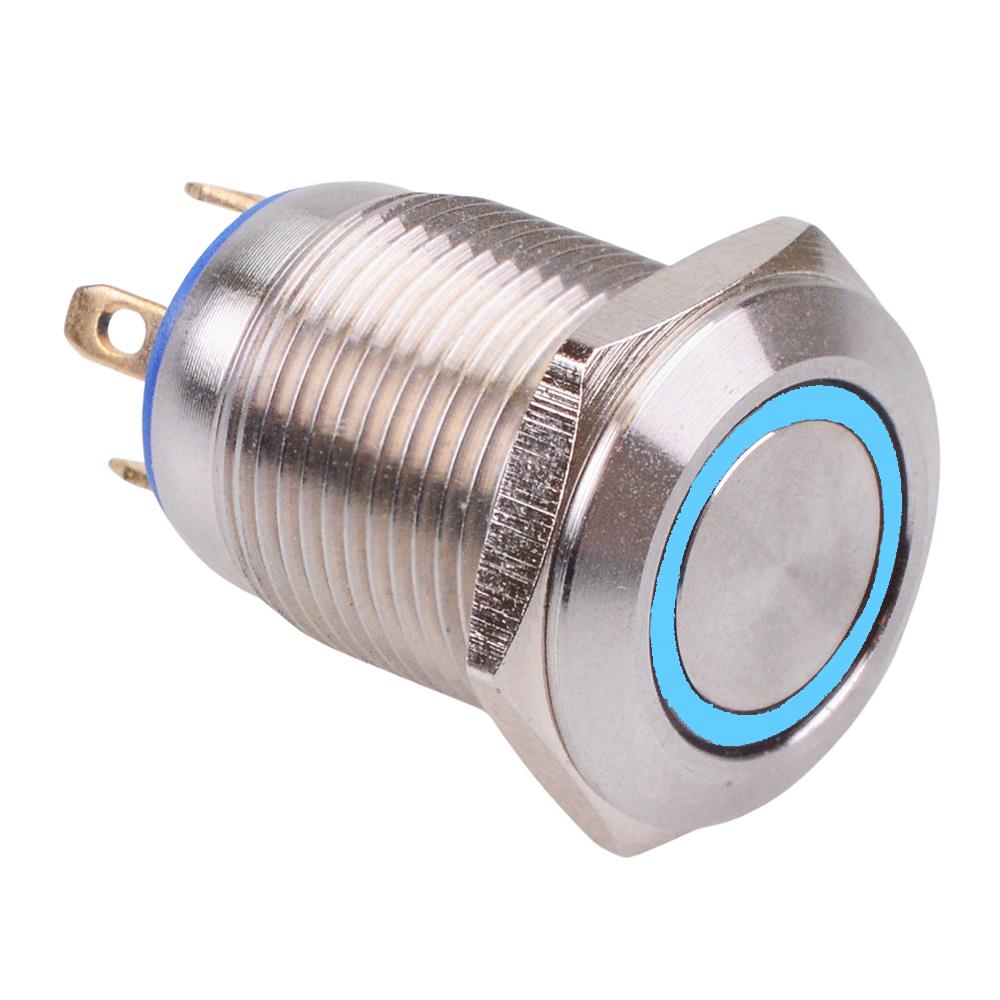

Momentary vandal resistant push button switch featuring a blue 12V LED and SPST normally open contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

Momentary Off-(On) action

SPST-NO contacts

Blue LED

12V illumination voltage

IP65 protection rating

12mm panel cut-out diameter

Solder terminals

Rating: 2A 36VDC
