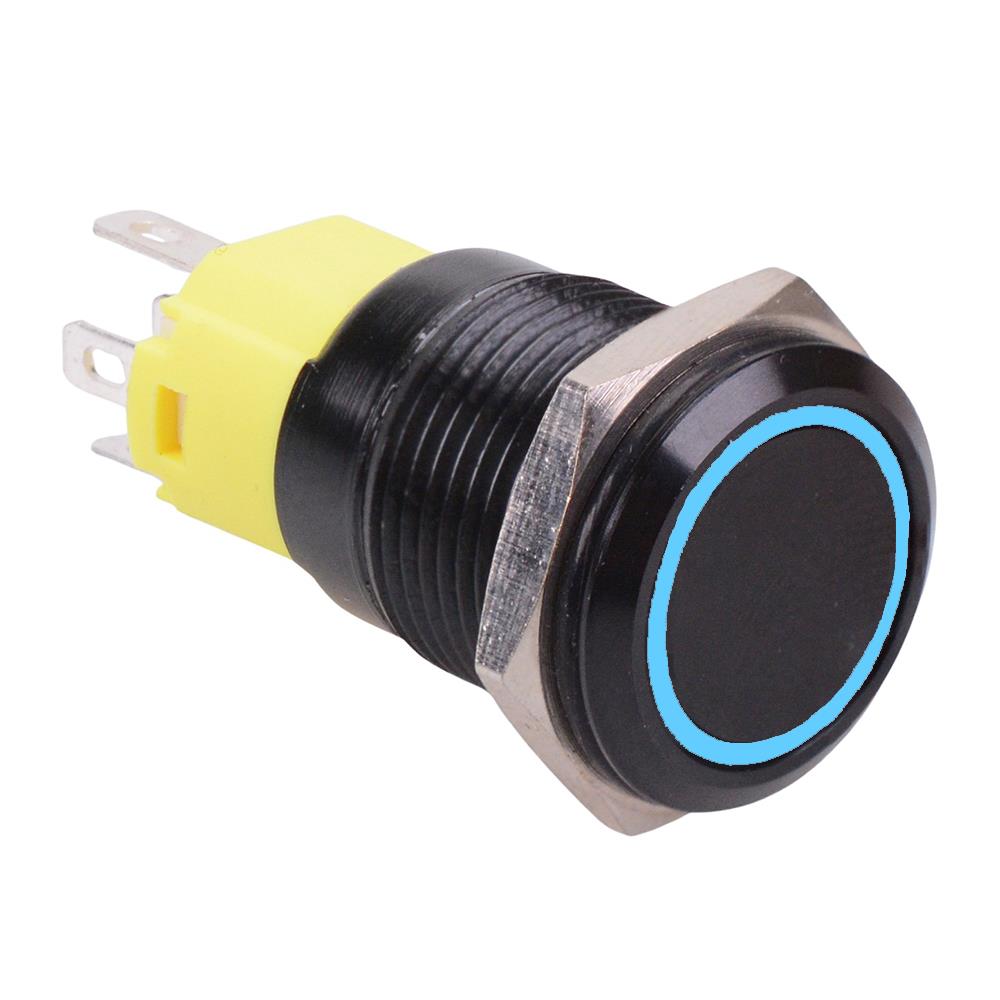

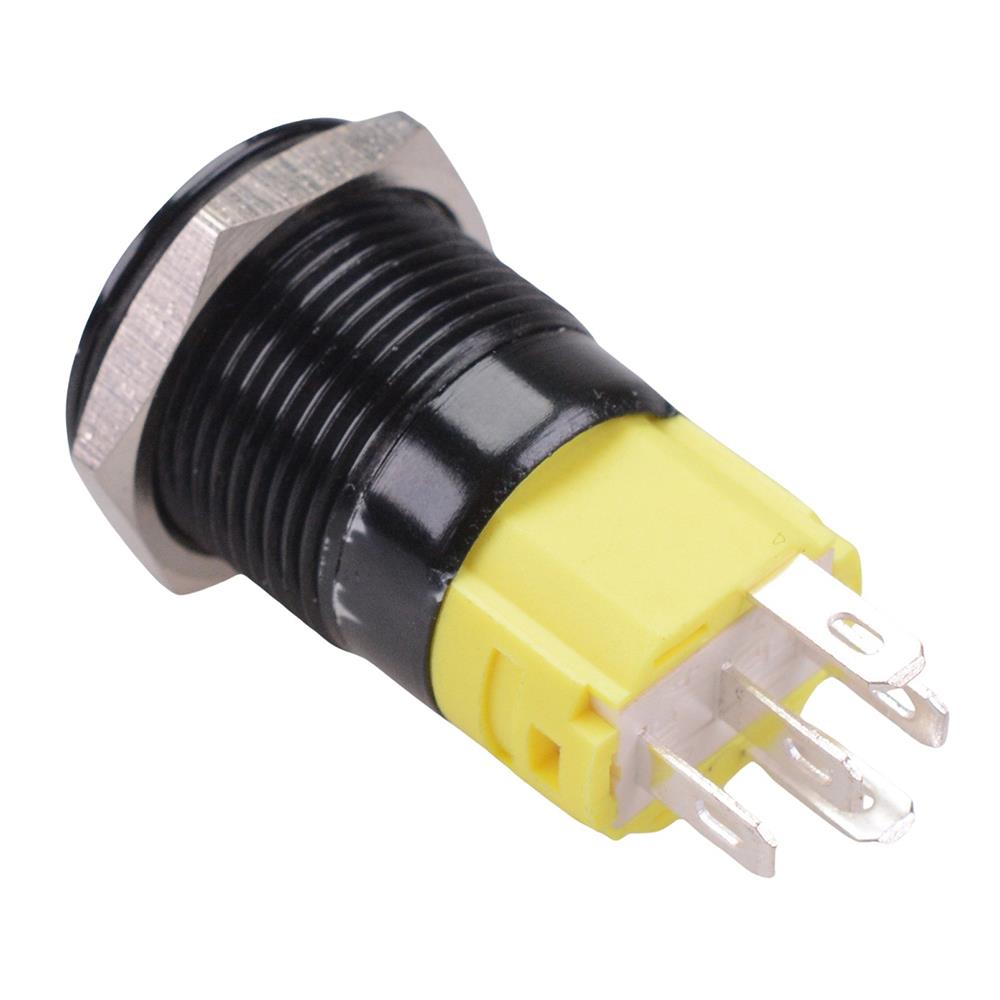

Blue LED On-On Latching 16mm Black Vandal Resistant Push Button Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Blue
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Illuminated	Yes
Electrical Life	50,000 Cycles
Illumination Colour	Blue
Illumination Voltage	12VDC
Material	Zinc Alloy
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +85°C
Panel Cut Out	16mm
Switch Operation	On-On
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Latching vandal resistant push button switch featuring a blue 12V LED and SPDT contacts. The switch is manufactured from zinc and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

Latching action

Blue LED

12V illumination voltage

IP65 protection rating

16mm panel cut-out diameter

NO/NC contacts

2.8mm terminals

Rating: 3A 250VAC

Dimensions: 36.7 x 18mm (length x diameter)
