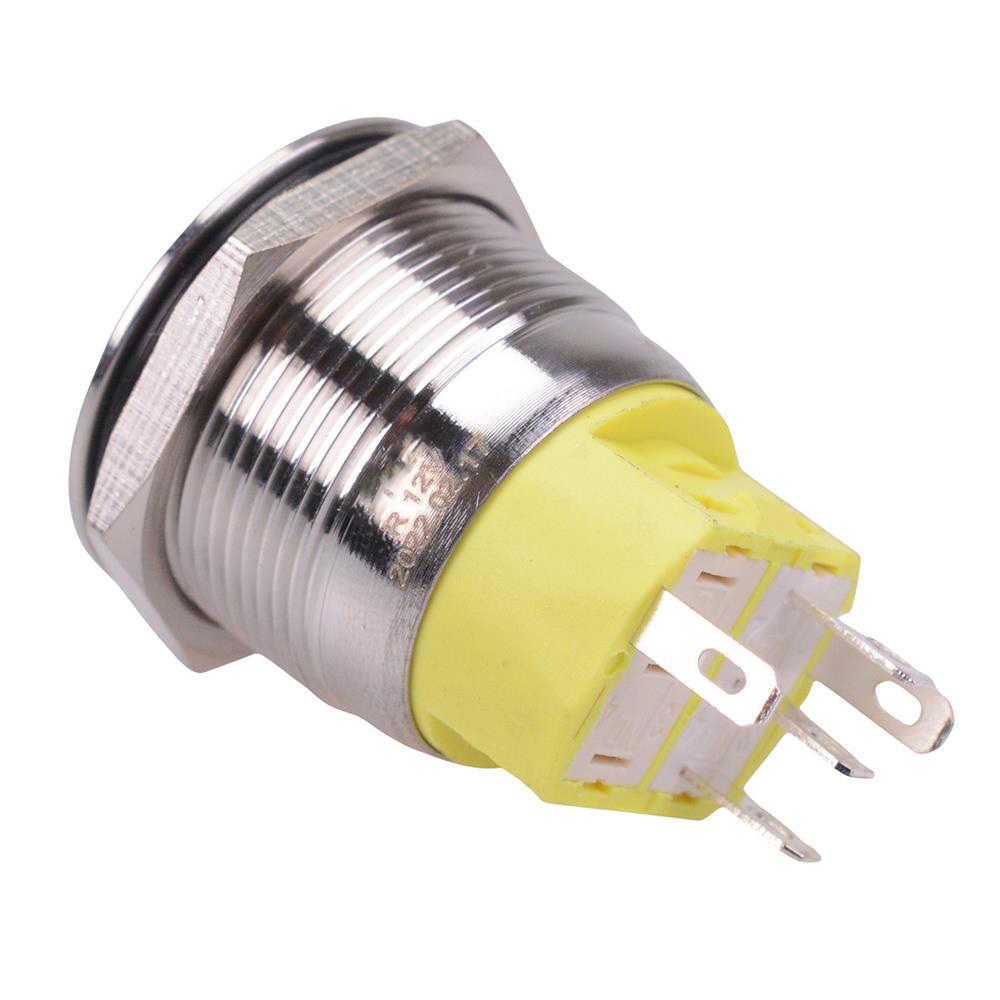

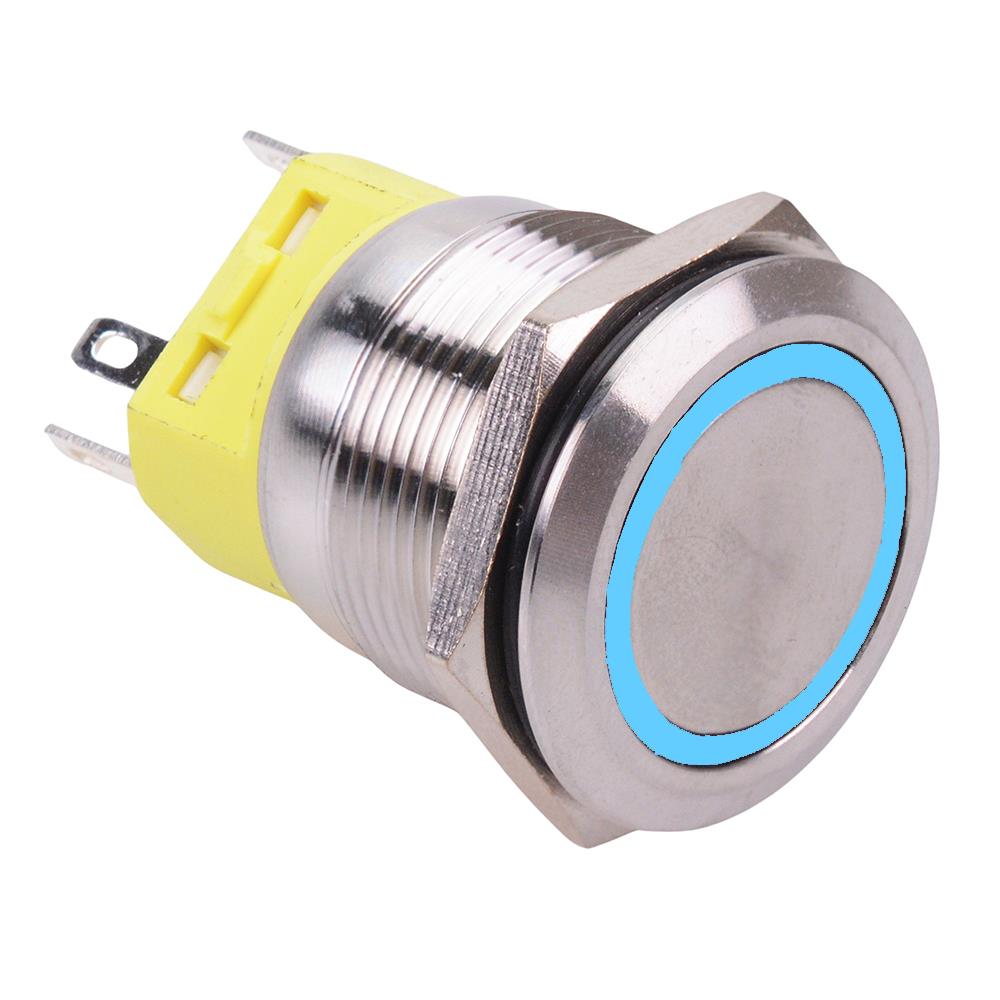

Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT

Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
from
$11.77
Ex Tax: $11.77
10 or more $10.48
25 or more $9.90
50 or more $9.30
100 or more $8.83
  • Stock: In Stock
  • Model: SCJ013741
  • SKU: SCJ013741
Products Sold: 0
Product Views: 36
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationSPDT
Contact Rating5A 250VAC
Current Rating5A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourBlue
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out22mm
Switch OperationOn-On
Terminal TypeSolder
Voltage Rating250VAC
  • Description
Latching vandal resistant 22mm push button switch featuring a blue 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Blue LED
  • 12V illumination voltage
  • IP67 protection rating
  • 22mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.4 x 25mm (length x diameter)
  • Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT

    Blue LED On-On Latching 22mm Vandal Resistant Push Button Switch SPDT
