Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT

Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
from
$9.01
Ex Tax: $9.01
10 or more $8.02
25 or more $7.58
50 or more $7.12
100 or more $6.76
  • Stock: In Stock
  • Model: SCJ013724
  • SKU: SCJ013724
Products Sold: 0
Product Views: 33
  • Specifications
Attributes List
ActuationMomentary
ColourBlue
Contact ConfigurationSPDT
Contact Rating5A 250VAC
Current Rating5A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourBlue
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out19mm
Switch OperationOn-(On)
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description

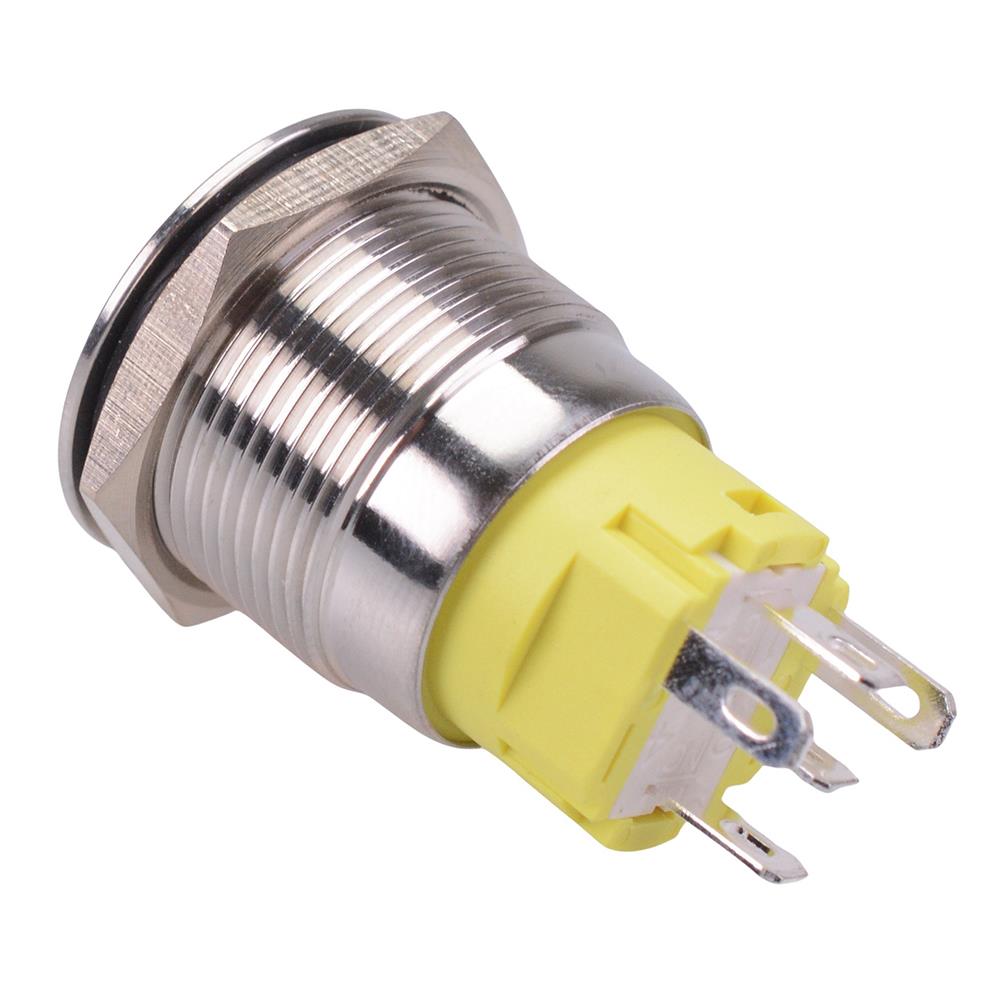

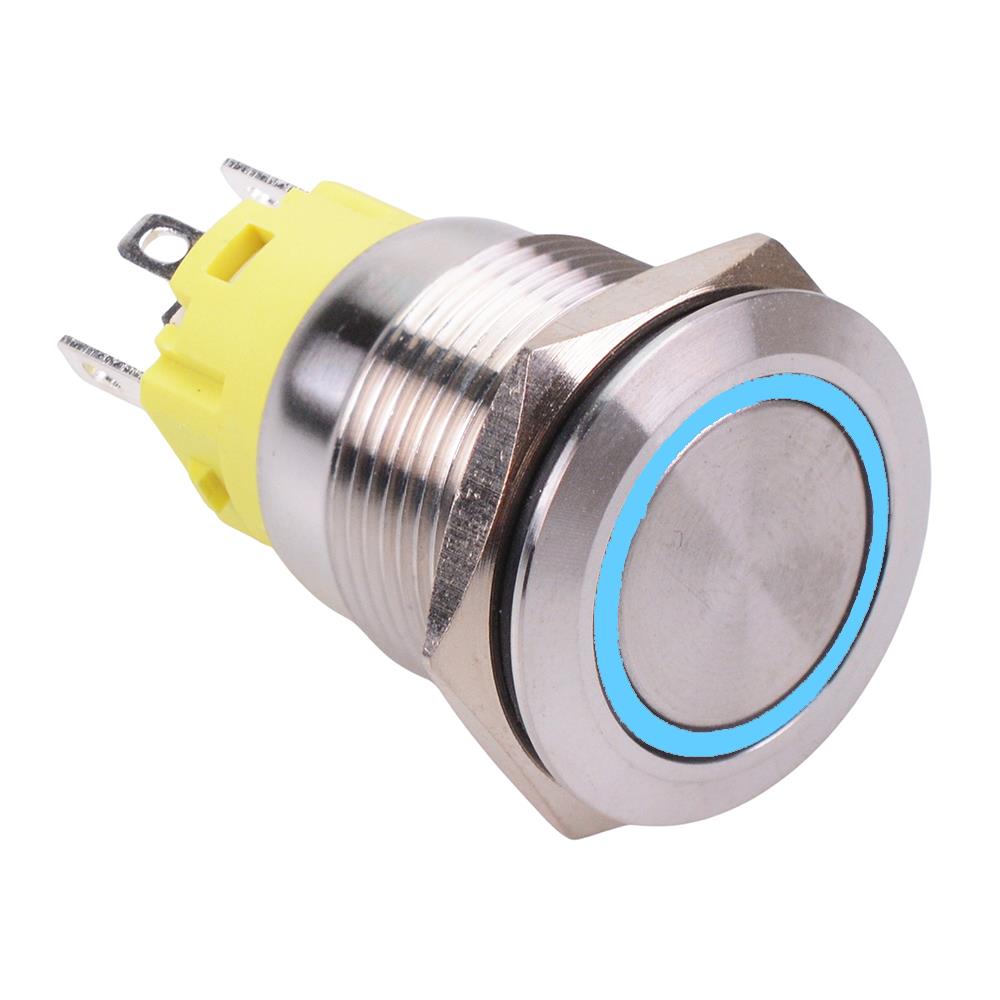

Momentary vandal resistant 19mm push button switch featuring a blue 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Momentary action
  • Blue LED
  • 12V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.1 x 22mm (length x diameter)
  • Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT

    Blue LED On-(On) Momentary 19mm Vandal Resistant Push Button Switch SPDT
