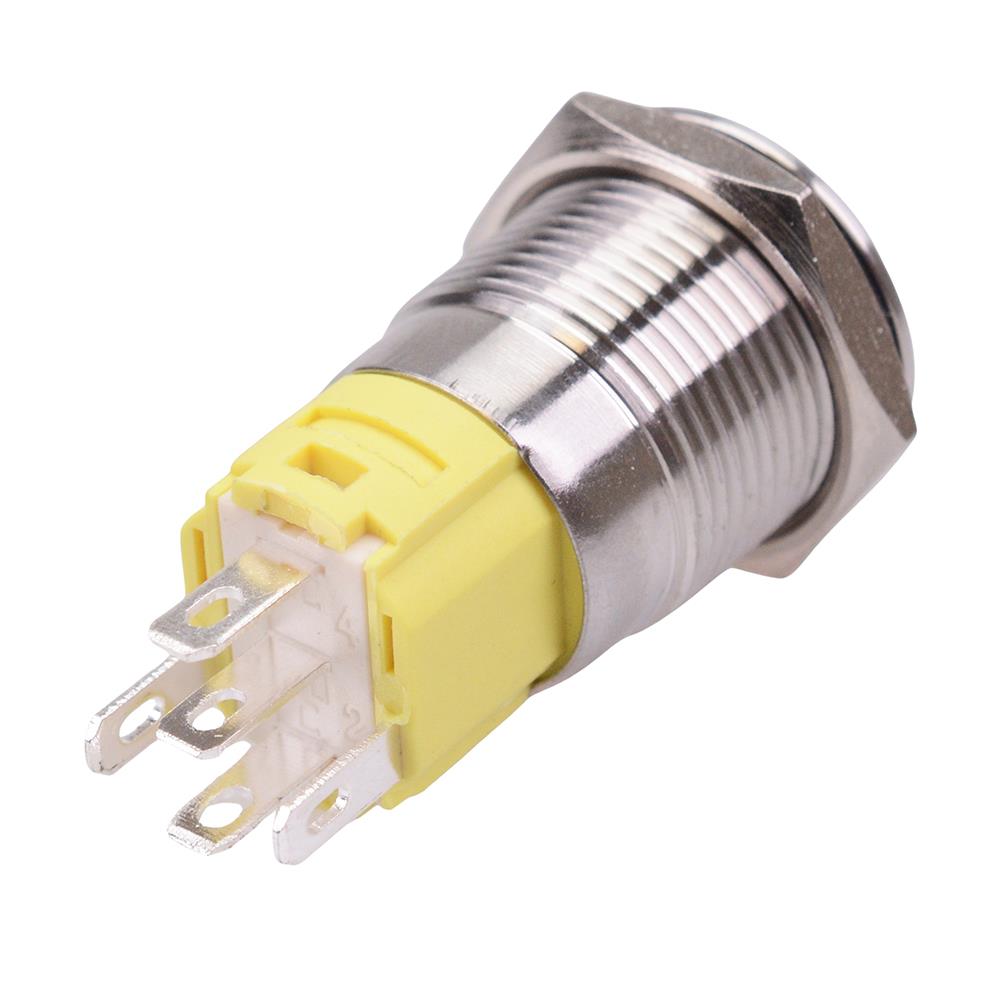

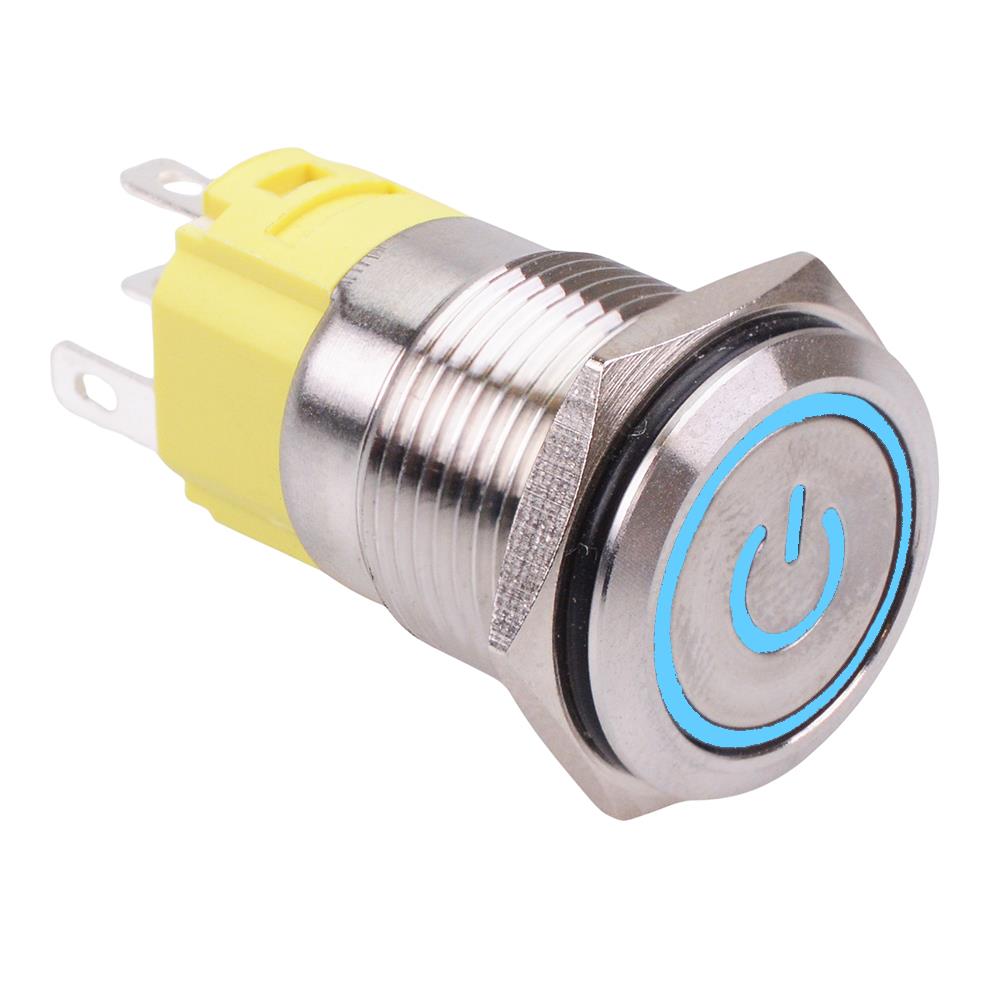

Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT

Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
from
$8.61
Ex Tax: $8.61
10 or more $7.66
25 or more $7.23
50 or more $6.81
100 or more $6.46
  • Stock: In Stock
  • Model: SCJ013697
  • SKU: SCJ013697
Products Sold: 0
Product Views: 36
  • Specifications
Attributes List
ActuationLatching
ColourBlue
Contact ConfigurationSPDT
Contact Rating3A 250VAC
Current Rating3A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourBlue
Illumination Voltage12VDC
MaterialStainless Steel
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +85°C
Panel Cut Out16mm
Switch OperationOn-On
Terminal TypeQuick Connect
Voltage Rating250VAC
  • Description
Latching vandal resistant push button switch featuring a blue 12V LED power symbol and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Blue LED
  • 12V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Dimensions: 36.7 x 18mm (length x diameter)
  • Blue LED Power On-On Latching 16mm Vandal Push Button Switch SPDT
