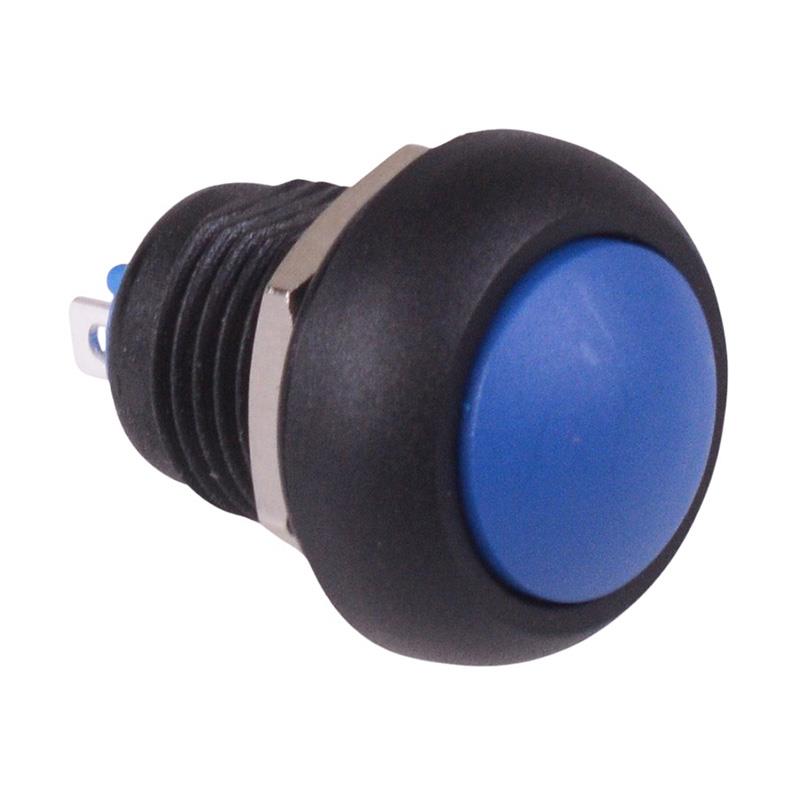

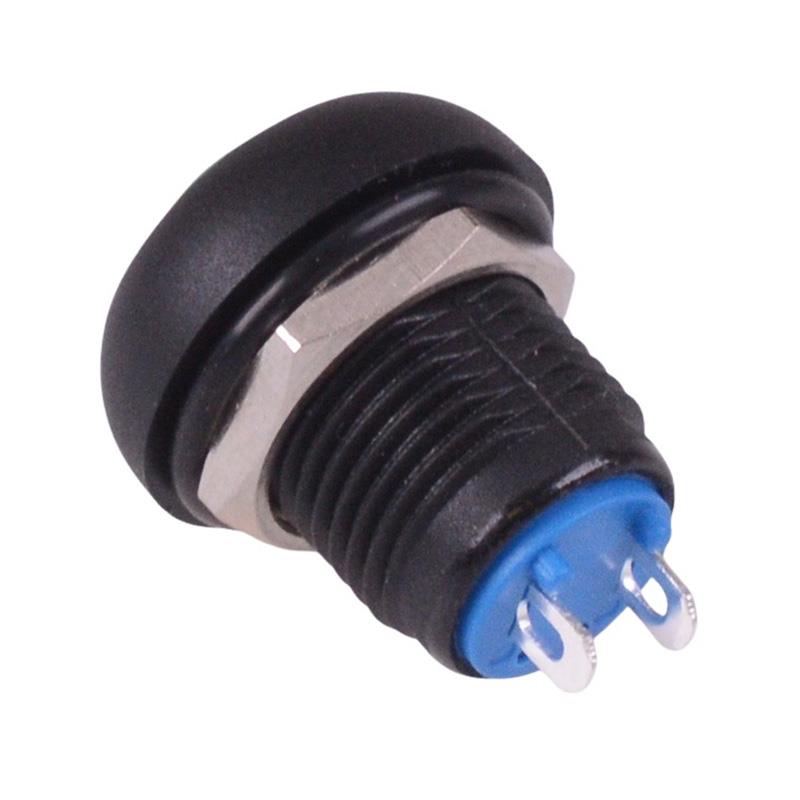

Blue On-Off Latching 12mm Waterproof Push Button Switch IP65 SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	1
Colour	Blue
Contact Configuration	SPST
Contact Rating	2A 250VAC
Current Rating	2A
Illuminated	No
Electrical Life	50,000 Cycles
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +65°C
Panel Cut Out	12mm
Panel Thickness	6mm Max
Switch Operation	On-Off
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Blue latching push button switch featuring a round actuator and SPST contacts. The switch features IP65 protection rating and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.

Latching operation

SPST contacts

IP65 protection rating

2.8x0.5mm quick connect terminals

Panel cut-out: 12mm

Panel thickness: 6mm max

Rating: 2A 250V

Dimensions: 24.75 x 18mm (height x diameter)
