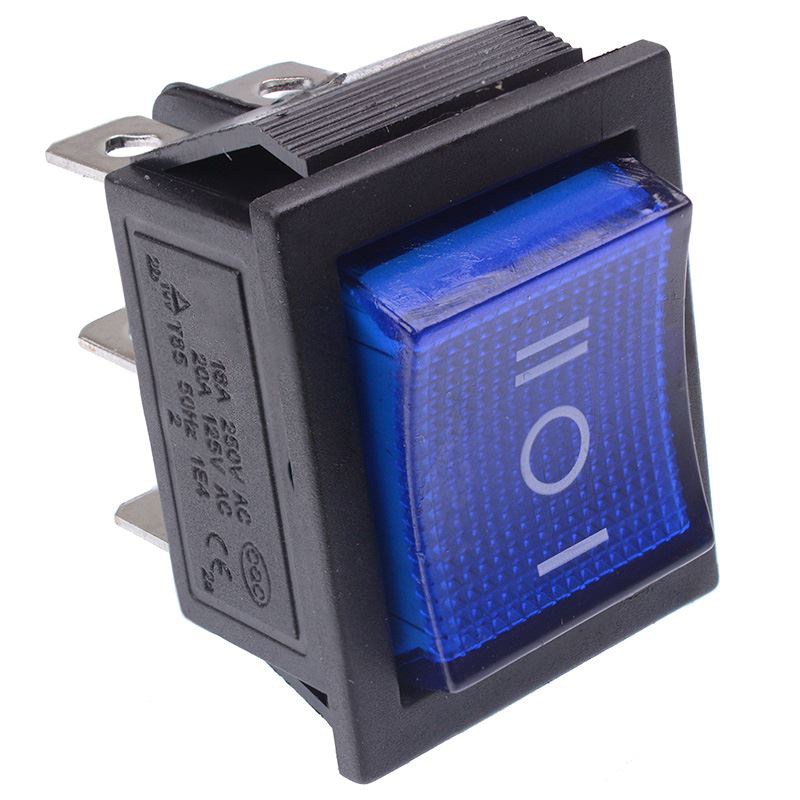

Blue On-Off-On illuminated Rectangle Rocker Switch DPDT 230V

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Blue
Contact Configuration	DPDT
Contact Rating	16A 250VAC, 20A 125VAC
Current Rating	20A
Illuminated	Yes
Electrical Life	10,000 Cycles
Illumination Colour	Blue
Illumination Voltage	230VAC
Material	PA66
Mounting Style	Panel
Number of Poles	2
Number of Positions	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	28.5 x 21.5mm
Switch Operation	On-Off-On
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Blue illuminated rectangle rocker switch featuring DPDT contacts and On-Off-On action. The switch features quick connect terminals and is suitable for domestic, industrial and commercial applications.

Blue illumination

On-off-on action

DPDT contacts

220VAC illumination

6.3mm quick connect terminals

28.5 x 21.5mm panel cut-out

Rating: 20A 125VAC, 16A 250VAC

Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
