Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V

Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
from
$16.32
Ex Tax: $16.32
10 or more $14.52
25 or more $13.71
50 or more $12.89
100 or more $12.24
  • Stock: In Stock
  • Model: SCJ013703
  • SKU: SCJ013703
Products Sold: 0
Product Views: 35
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationSPDT
Contact Rating5A 250VAC
Current Rating5A
IlluminatedYes
Electrical Life50,000 Cycles
Illumination ColourBlue
Illumination Voltage12VDC
MaterialZinc
Mounting StylePanel
Number of Poles2
Number of Positions2
Protection LevelIP67
Operating Temperature-20°C to +85°C
Panel Cut Out25mm
Switch OperationOn-On
  • Description

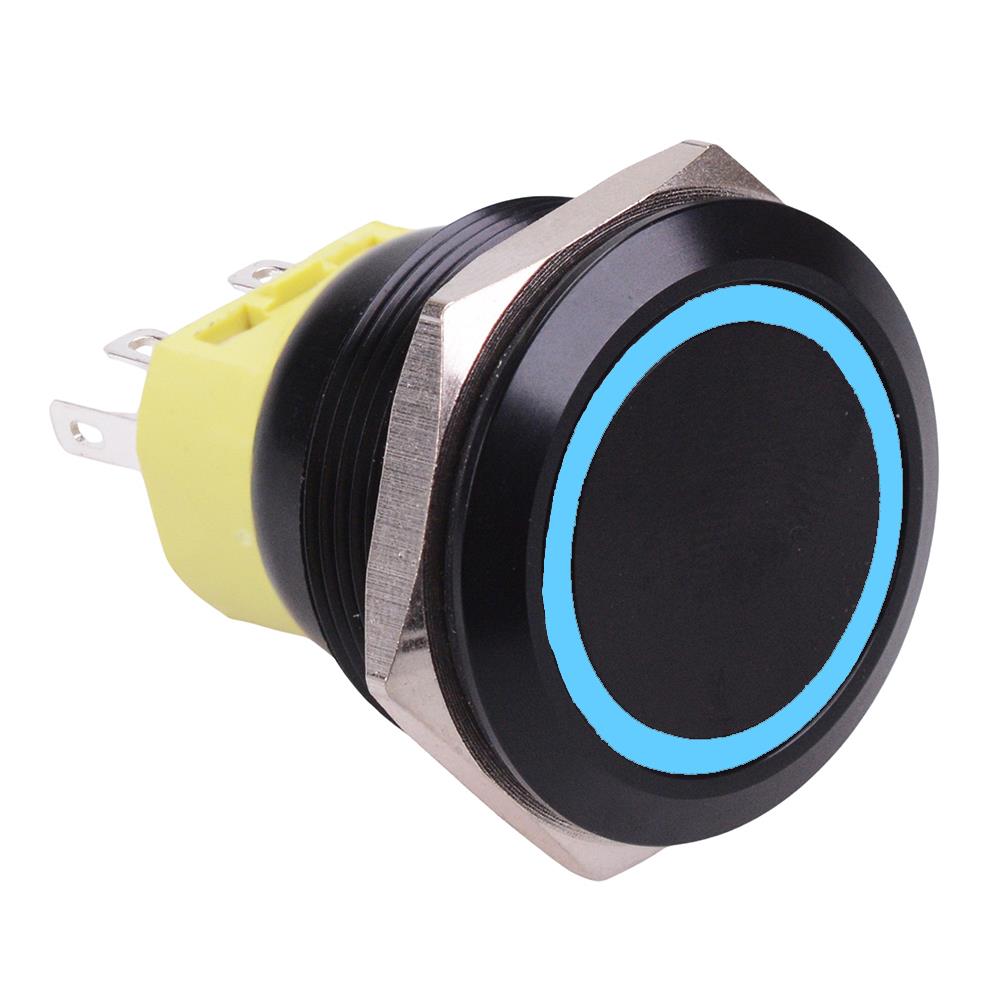

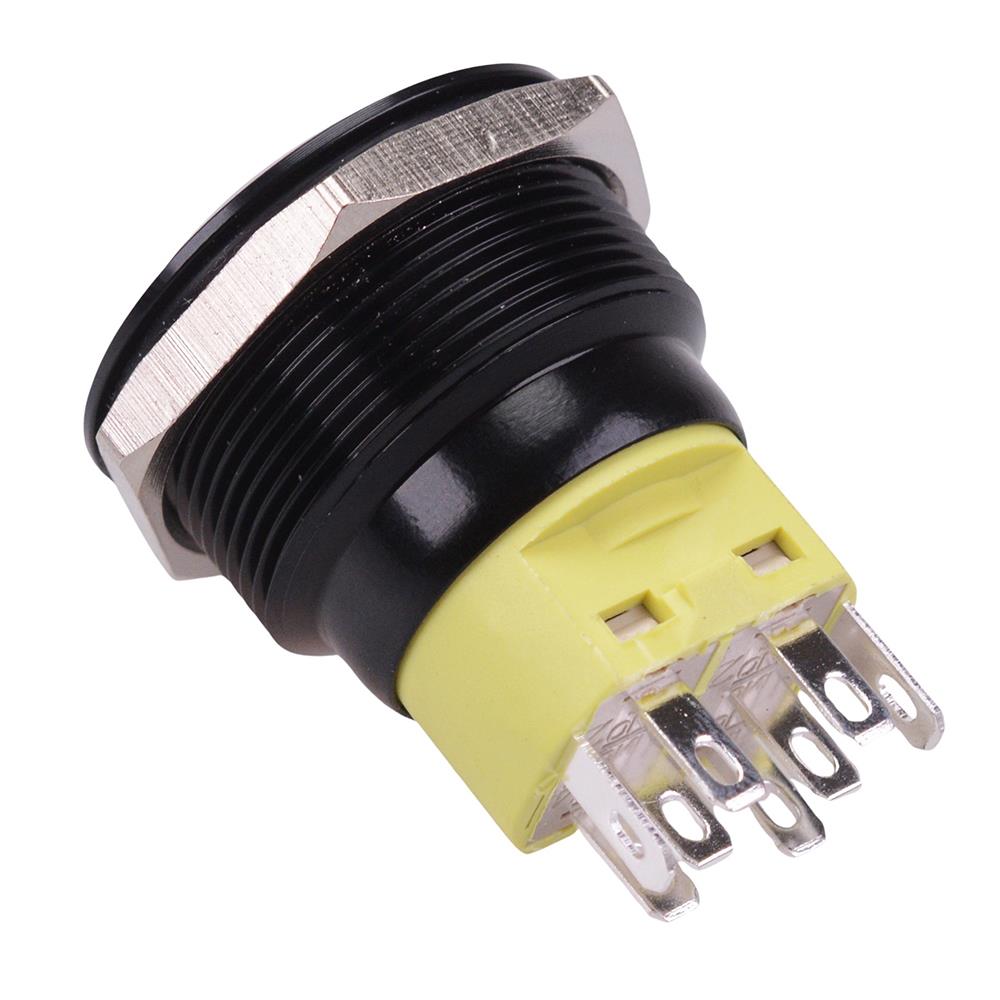

Latching vandal resistant 25mm push button switch featuring a blue 12V LED and DPDT contacts. The switch is manufactured from zinc and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Blue LED
  • 12V illumination voltage
  • IP67 protection rating
  • 25mm panel cut-out diameter
  • 2NO/2NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.6 x 28mm (length x diameter)
  • Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V

    Blue On-On 25mm Black Vandal Latching Push Button Switch DPDT 12V
