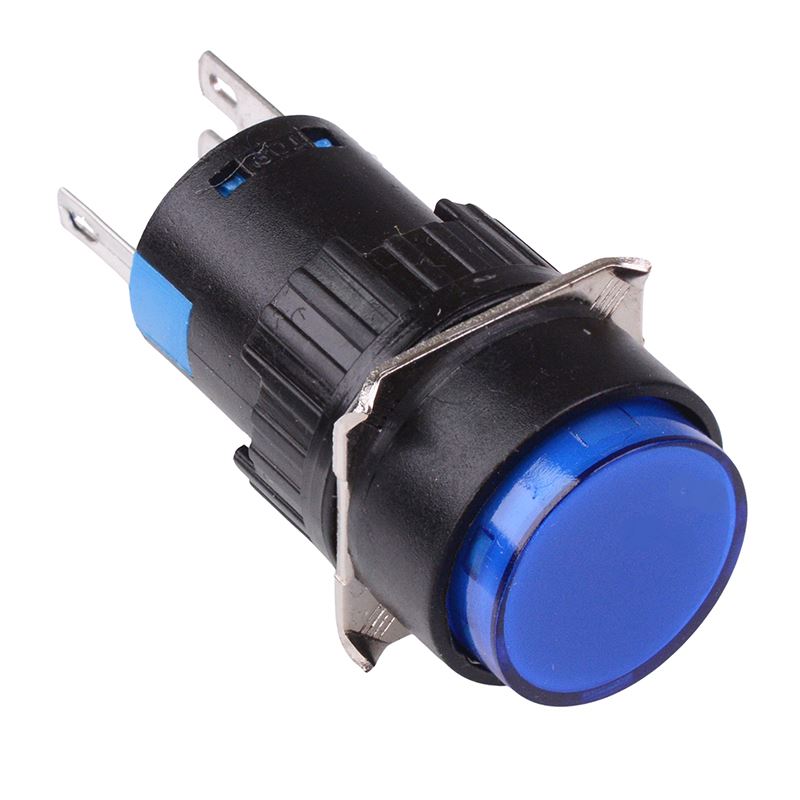

Blue Round Latching 16mm Push Button Switch NO/NC 230V

Blue Round Latching 16mm Push Button Switch NO/NC 230V
Blue Round Latching 16mm Push Button Switch NO/NC 230V
from
$4.31
Ex Tax: $4.31
10 or more $3.84
25 or more $3.62
50 or more $3.40
100 or more $3.23
  • Stock: In Stock
  • Model: SCJ014096
  • SKU: SCJ014096
Products Sold: 0
Product Views: 39
  • Specifications
Attributes List
ActuationLatching
ColourBlue
Contact ConfigurationSPST
Contact MaterialSilver Plated
Contact Rating5A 250VAC/DC
Current Rating5A
IlluminatedYes
Electrical Life100,000 Cycles
Illumination ColourBlue
Illumination Voltage230VAC
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +55°C
Panel Cut Out16mm
Switch OperationOn-Off
Terminal TypeSolder
Voltage Rating250VAC
  • Description
Blue latching push button switch featuring a round illuminated actuator and IP65 protection rating. The switch features NO and NC contacts and fits standard 16mm panel cut-outs. The switch is suitable for a wide range of applications including industrial, prototyping, domestic, appliances etc.

  • Blue 230V illumination
  • NO/NC contacts
  • Solder terminals
  • Maximum voltage: 250VAC/DC
  • Maximum current: 5A
  • Panel cut-out: 16mm
  • Protection level: IP65
  • Button size: 15.4mm
  • Dimensions: 40.3 x 18mm
  • Blue Round Latching 16mm Push Button Switch NO/NC 230V
