Blue Round Off-(On) Momentary 12mm Metal Push Button Switch Screw IP65 SPST
from
$3.89
Ex Tax: $3.89
10 or more $3.46
25 or more $3.27
50 or more $3.08
100 or more $2.91
- Stock: In Stock
- Model: SCJ013926
- SKU: SCJ013926
Products Sold: 0
Product Views: 36
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
MOQ | 1 |
Colour | Blue |
Contact Configuration | SPST |
Contact Material | Silver Alloy |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Illuminated | No |
Electrical Life | 50,000 Cycles |
Material | Zinc Alloy |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Temperature | -25°C to +65°C |
Panel Cut Out | 12mm |
Panel Thickness | 5mm Max |
Switch Operation | Off-(On) |
Terminal Type | Screw |
Voltage Rating | 250VAC |
- Description

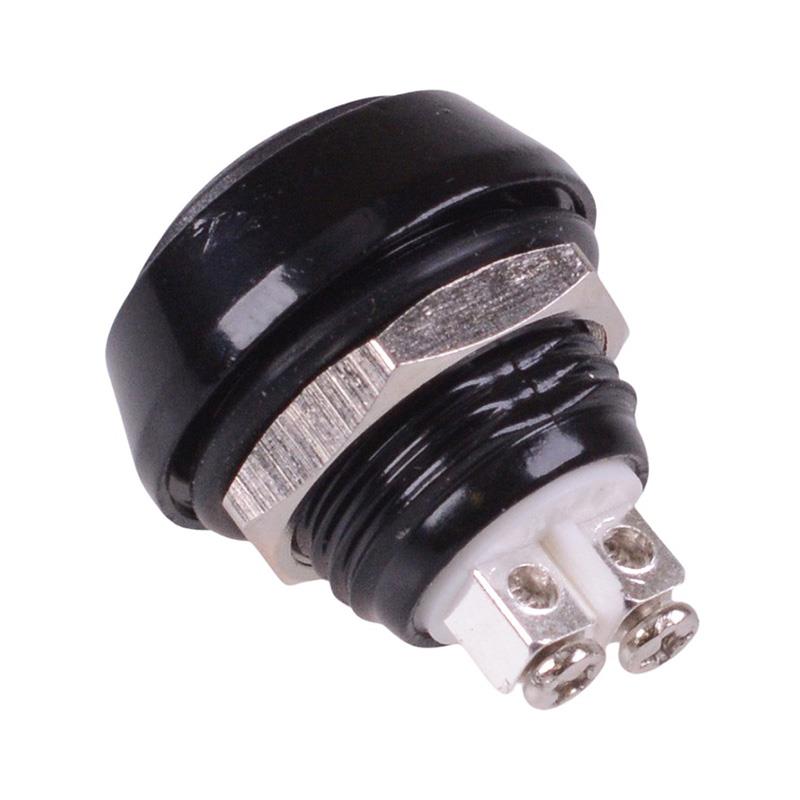

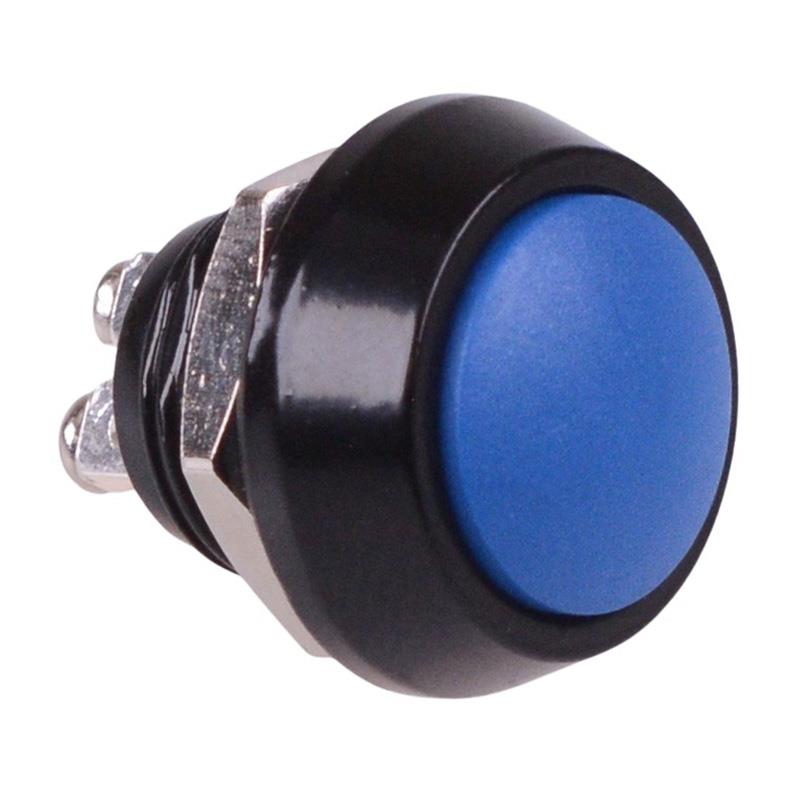

Blue momentary push button switch featuring a round actuator and normally open contacts. The switch features a zinc alloy housing and is suitable for mounting in 12mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating Screw terminals Panel cut-out: 12mm Panel thickness: 5mm max Rating: 3A 250V Dimensions: 19.5 x 17.5mm (height x diameter)
