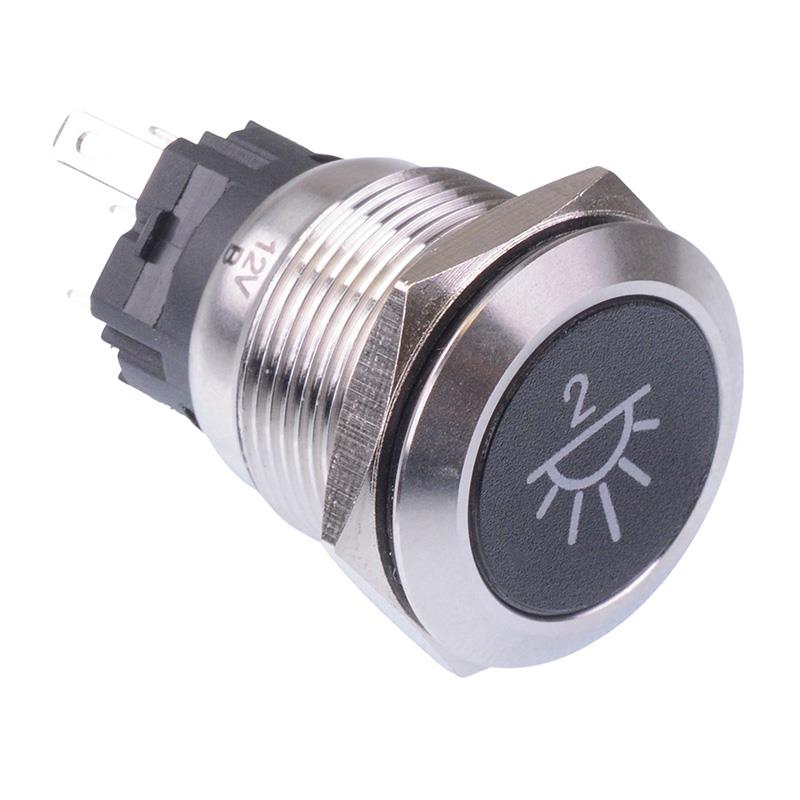

Cockpit / Cabin Light 2' White LED Latching 19mm Vandal Push Button Switch SPDT 12V
from
$12.93
Ex Tax: $12.93
5 or more $11.51
10 or more $10.74
25 or more $10.09
50 or more $9.57
- Stock: In Stock
- Model: SCJ011140
- SKU: SCJ011140
Products Sold: 0
Product Views: 37
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Latching |
Contact Configuration | SPDT |
Contact Rating | 3A 250VAC |
Current Rating | 3A |
Illuminated | Yes |
Electrical Life | 30,000 Cycles |
Illumination Colour | White |
Illumination Voltage | 12VDC |
Material | Stainless Steel |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Force | 5N |
Operating Temperature | -20°C to +55°C |
Panel Cut Out | 19mm |
Panel Thickness | 1-10mm |
Switch Operation | On-On |
- Description
Latching vandal resistant push button switch featuring a white LED requiring 12V supply voltage and 19mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Latching action White 12V LED Panel cut-out: 19mm Panel thickness: 1-10mm Current rating: 3A Protection level: IP65 Contacts: NO/NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 37 x 22mm (height x diameter)
