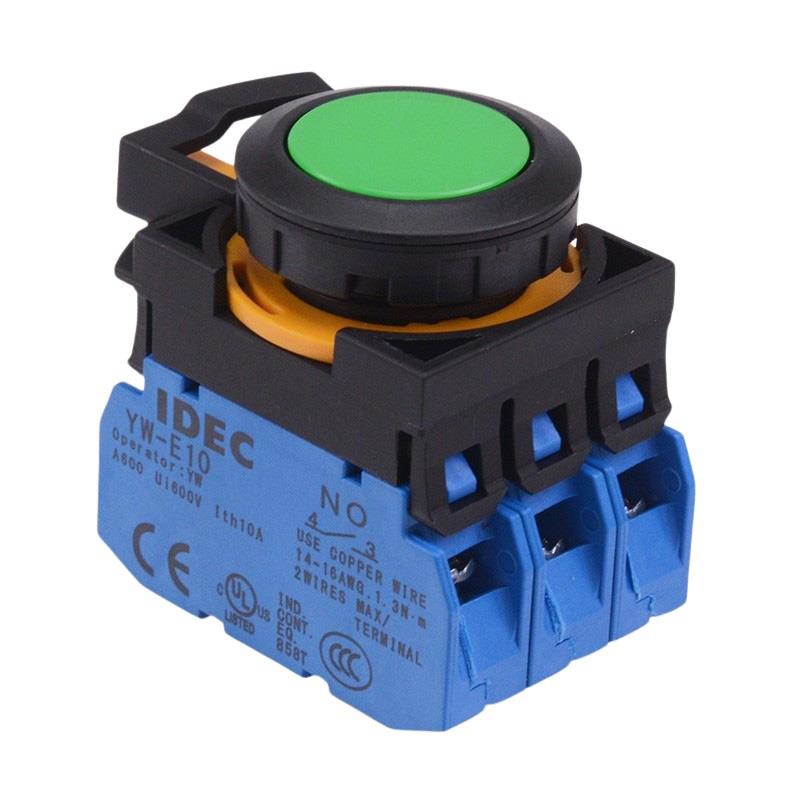

CW1B-M1E30G Green Momentary Push Button Switch 3NO IP65
from
$28.41
Ex Tax: $28.41
5 or more $25.29
10 or more $23.58
25 or more $22.16
50 or more $21.02
- Stock: In Stock
- Model: SCJ013075
- SKU: SCJ013075
Products Sold: 0
Product Views: 32
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Momentary |
Colour | Green |
Contact Configuration | 3NO |
Head Type | Flush |
Contact Rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
Current Rating | 10A |
Illuminated | No |
Rated Thermal Current | 10A |
Mounting Style | Panel |
Number of Positions | 2 |
Protection Level | IP65 |
Operating Temperature | -25°C to +60°C |
Panel Cut Out | 22.3mm |
Product Series | CW |
Terminal Type | Screw |
Voltage Rating | 300V |
- Description
The CW1B-M1E30G is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
Green button 3NO contacts Screw contact blocks Momentary operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
