CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67

CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
from
$72.53
Ex Tax: $72.53
  • Stock: In Stock
  • Model: SCJ013427
  • SKU: SCJ013427
Products Sold: 0
Product Views: 34
  • Specifications
Attributes List
ColourBlue / White
Head TypeFlush
Contact Rating40mA 24VDC
Current Rating40mA
IlluminatedYes
Illumination ColourBlue / White
Mounting StylePanel
Protection LevelIP67
Operating Temperature-25°C to +55°C
Panel Cut Out22.3mm
Product SeriesCW
Terminal TypeConnector
Voltage Rating24VDC
  • Description

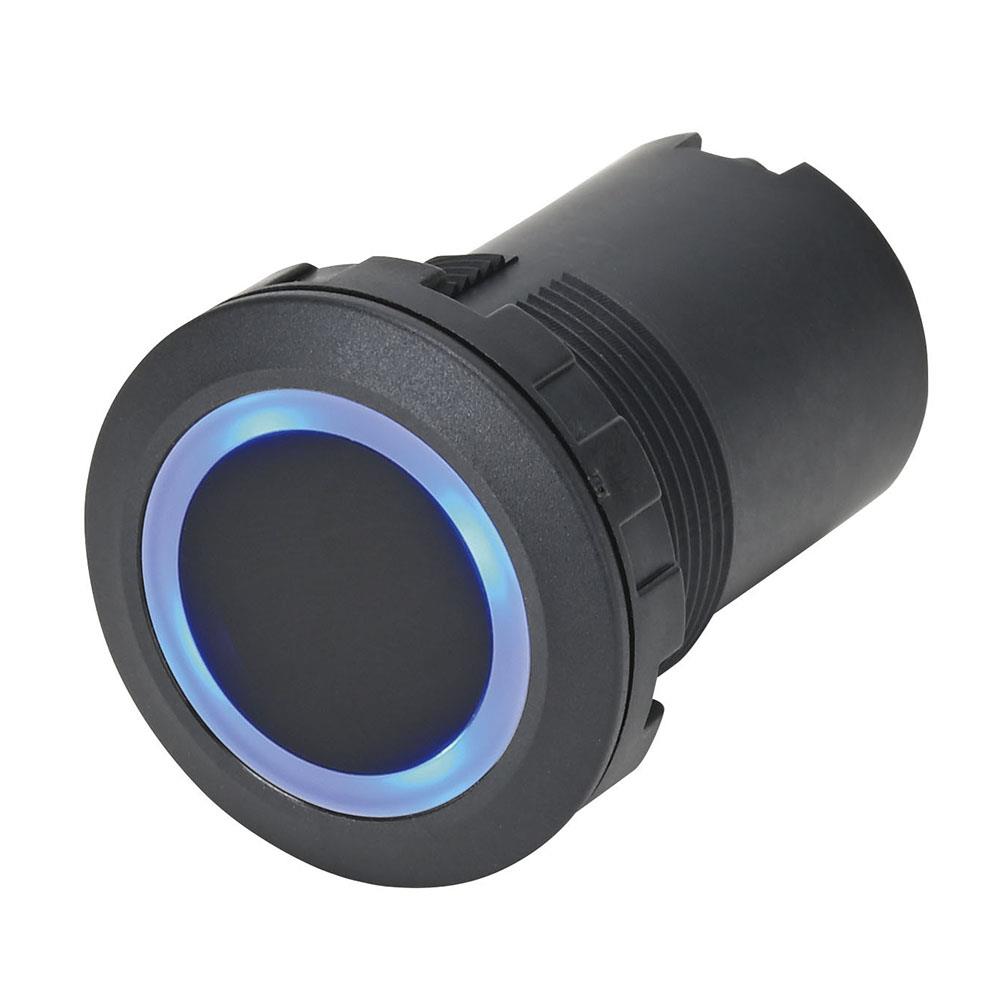

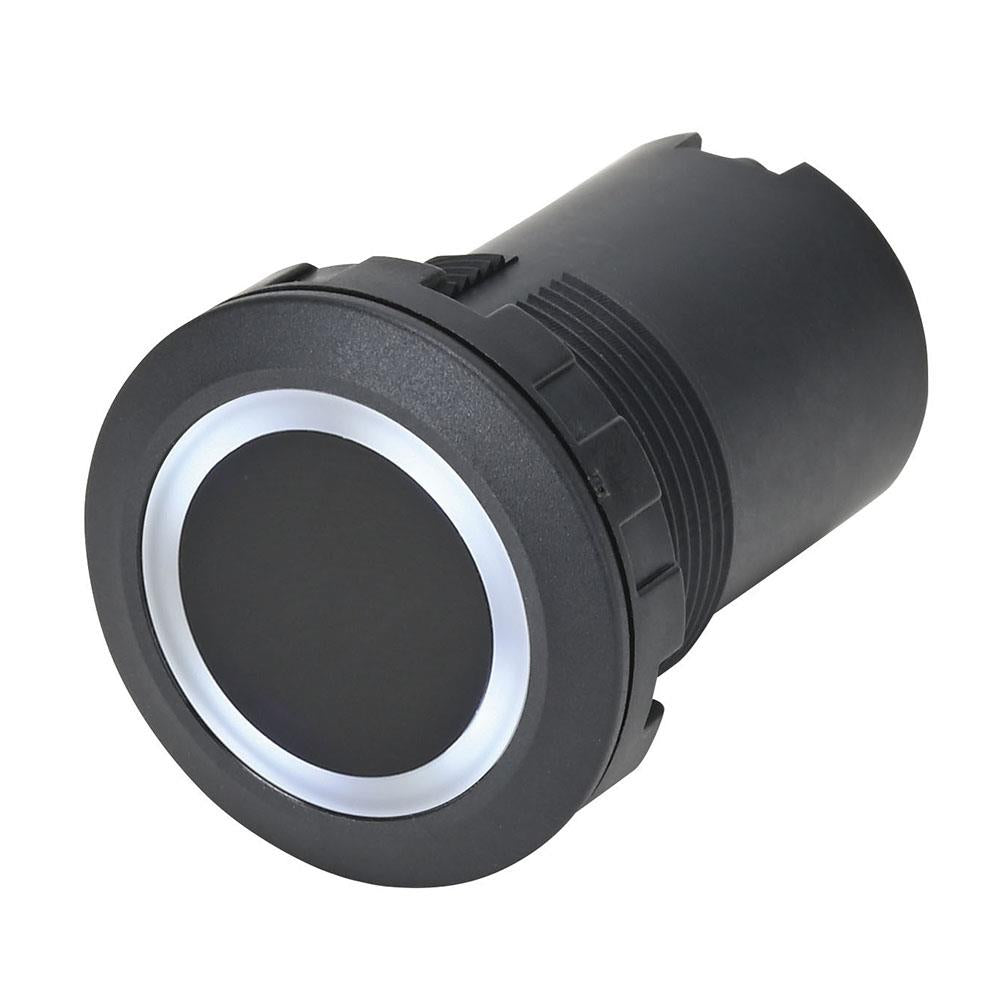

The CW1H-DM1NSPW-C is a flush 22mm touchless switch manufactured by socoje. The switch features a black plastic bezel and blue / white illumination with PNP control method. The switch can be operated by just waving your hand and it has a maximum sensing range from 70mm to 270mm, adjustable with the rear sensitivity control.
The switch features the functions of a photoelectric sensor and two indiciator lights integrated into a single switch. The touchless CW series is suitable for replacing existing mechanical switches and reduces the risk of viruses and bacteria spreading in applications with frequent access. Due to the innovative and durable design the switch is suitable for a wide range of applications including use in public facilities, parking garages, warehousing, production lines, human sensing etc.

  • Blue / white LED illumination
  • Panel cut-out: 22.3mm
  • PNP control method
  • Black plastic bezel
  • Sensing method: diffuse-reflective
  • Adjustable maximum sensing range: 70mm to 270mm
  • Rated voltage: 12-24VDC
  • Current draw: 40mA maximum (main circuit), 20mA maximum (illumination part)
  • Dimensions: 37 x 28mm (height x diameter)
  • CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67

    CW1H-DM1NSPW-C Blue / White LED Flush Black Touchless Switch IP67
