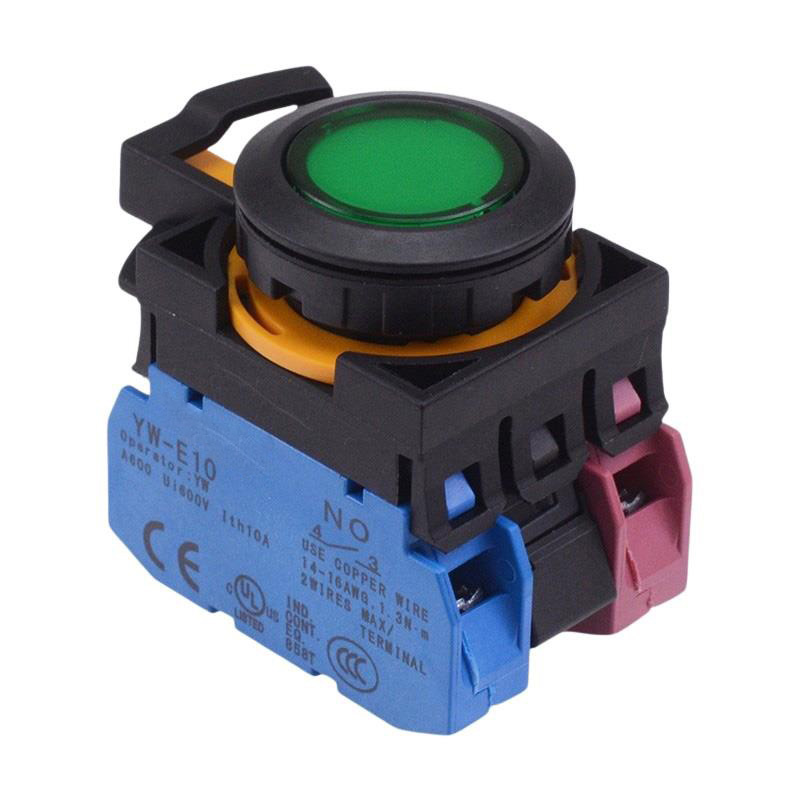

CW1L-A1E11Q4G Green 24V illuminated Maintained Push Button Switch 1NO-1NC IP65

CW1L-A1E11Q4G Green 24V illuminated Maintained Push Button Switch 1NO-1NC IP65
CW1L-A1E11Q4G Green 24V illuminated Maintained Push Button Switch 1NO-1NC IP65
from
$51.34
Ex Tax: $51.34
5 or more $45.69
10 or more $42.61
25 or more $40.05
50 or more $37.99
  • Stock: In Stock
  • Model: SCJ012278
  • SKU: SCJ012278
Products Sold: 0
Product Views: 36
  • Specifications
Attributes List
ActuationMaintained
ColourGreen
Contact Configuration1NO-1NC
Head TypeFlush
Contact Rating8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating10A
IlluminatedYes
Illumination ColourGreen
Illumination Voltage24V
Rated Thermal Current10A
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +55°C
Panel Cut Out22.3mm
Product SeriesCW
Terminal TypeScrew
Voltage Rating300V
  • Description
The CW1L-A1E11Q4G is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • Green button
  • 24V LED illumination
  • 1NO-1NC contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • CW1L-A1E11Q4G Green 24V illuminated Maintained Push Button Switch 1NO-1NC IP65
