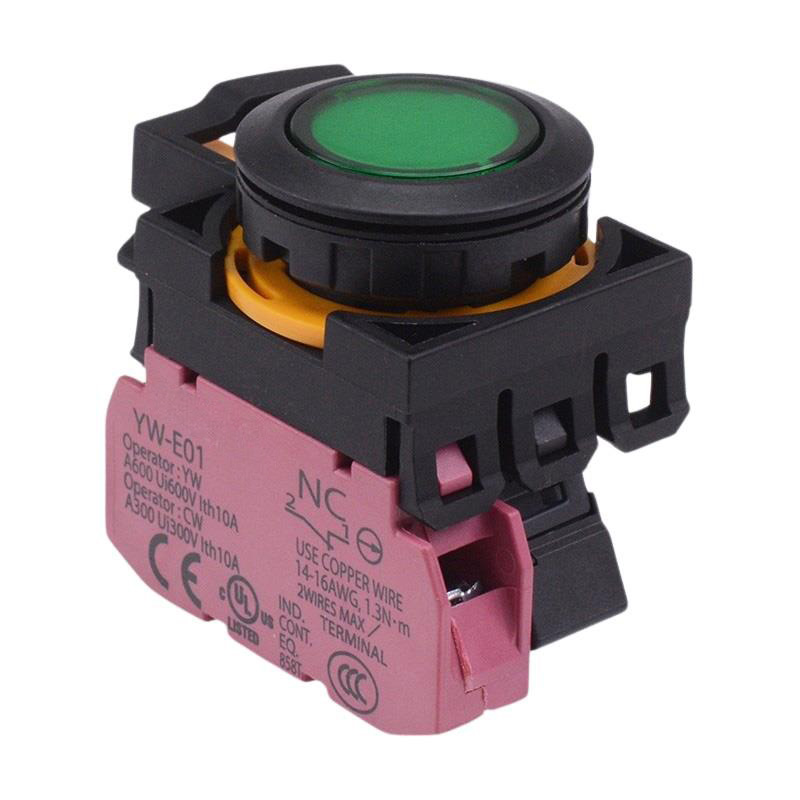

CW1L-M1E01Q4G Green 24V illuminated Momentary Push Button Switch 1NC IP65

CW1L-M1E01Q4G Green 24V illuminated Momentary Push Button Switch 1NC IP65
CW1L-M1E01Q4G Green 24V illuminated Momentary Push Button Switch 1NC IP65
from
$32.56
Ex Tax: $32.56
5 or more $28.99
10 or more $27.03
25 or more $25.40
50 or more $24.10
  • Stock: In Stock
  • Model: SCJ012245
  • SKU: SCJ012245
Products Sold: 0
Product Views: 39
  • Specifications
Attributes List
ActuationMomentary
ColourGreen
Contact Configuration1NC
Head TypeFlush
Contact Rating8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating10A
IlluminatedYes
Illumination ColourGreen
Illumination Voltage24V
Rated Thermal Current10A
Mounting StylePanel
Number of Positions2
Protection LevelIP65
Operating Temperature-25°C to +55°C
Panel Cut Out22.3mm
Product SeriesCW
Terminal TypeScrew
Voltage Rating300V
  • Description
The CW1L-M1E01Q4G is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • Green button
  • 24V LED illumination
  • 1NC contacts
  • Screw contact blocks
  • Momentary operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • CW1L-M1E01Q4G Green 24V illuminated Momentary Push Button Switch 1NC IP65
