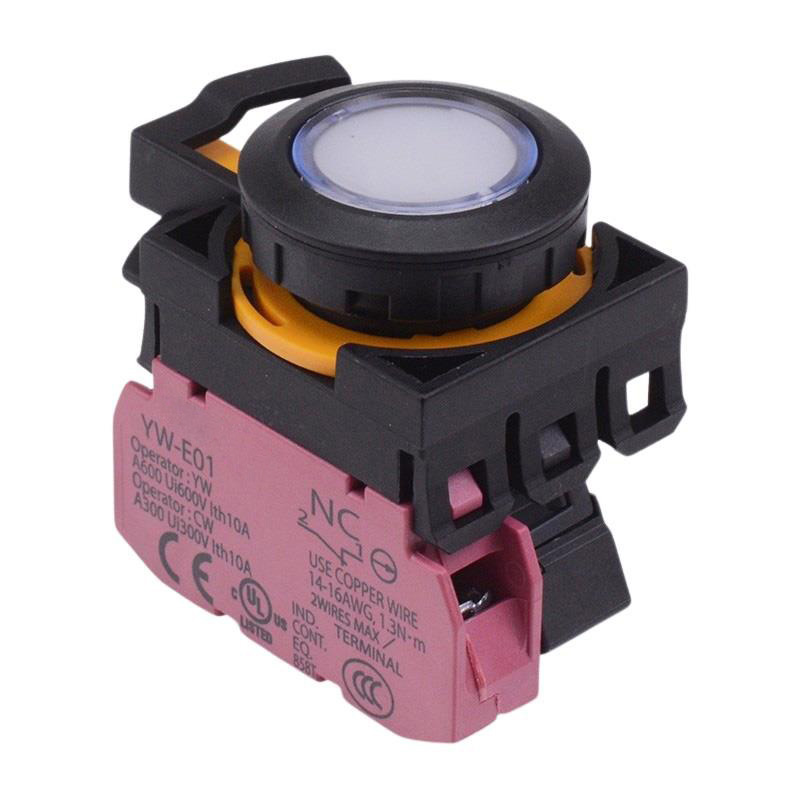

CW1L-M1E01Q4PW White 24V illuminated Momentary Push Button Switch 1NC IP65

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	White
Contact Configuration	1NC
Head Type	Flush
Contact Rating	8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating	10A
Illuminated	Yes
Illumination Colour	White
Illumination Voltage	24V
Rated Thermal Current	10A
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +55°C
Panel Cut Out	22.3mm
Product Series	CW
Terminal Type	Screw
Voltage Rating	300V

Description

The CW1L-M1E01Q4PW is a flush mount industrial push button switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

White button

24V LED illumination

1NC contacts

Screw contact blocks

Momentary operation

22.3mm mounting hole

IP65 protection level

2.5mm thick bezel

39.9mm depth behind the panel

Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
