CW1S-3E02N1 3 Position Selector Switch 2NC IP65

CW1S-3E02N1 3 Position Selector Switch 2NC IP65
CW1S-3E02N1 3 Position Selector Switch 2NC IP65
from
$27.24
Ex Tax: $27.24
5 or more $24.24
10 or more $22.61
25 or more $21.24
50 or more $20.15
  • Stock: In Stock
  • Model: SCJ013337
  • SKU: SCJ013337
Products Sold: 0
Product Views: 35
  • Specifications
Attributes List
ActuationMaintained
Contact Configuration2NC
Head TypeSelector
Contact Rating8A 24VDC, 10A 120VAC, 6A 240VAC
Current Rating10A
IlluminatedNo
Rated Thermal Current10A
Mounting StylePanel
Number of Positions3
Protection LevelIP65
Operating Temperature-25°C to +60°C
Panel Cut Out22.3mm
Product SeriesCW
Terminal TypeScrew
Voltage Rating300V
  • Description

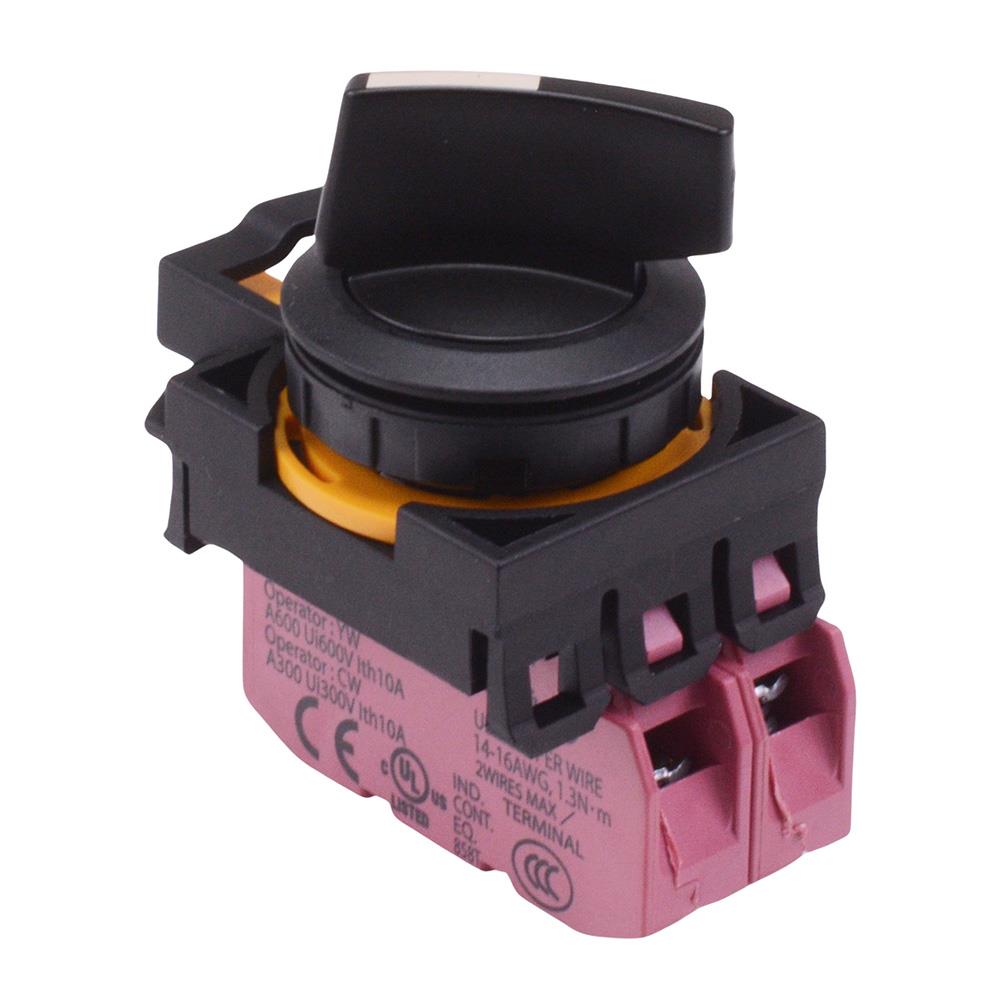

CW1S-3E02N1 3 Position Selector Switch 2NC IP65
The CW1S-3E02N1 is an industrial selector switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.

  • 3 positions
  • 2NC contacts
  • Screw contact blocks
  • Maintained operation
  • 22.3mm mounting hole
  • IP65 protection level
  • 2.5mm thick bezel
  • 39.9mm depth behind the panel
  • Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
  • CW1S-3E02N1 3 Position Selector Switch 2NC IP65
