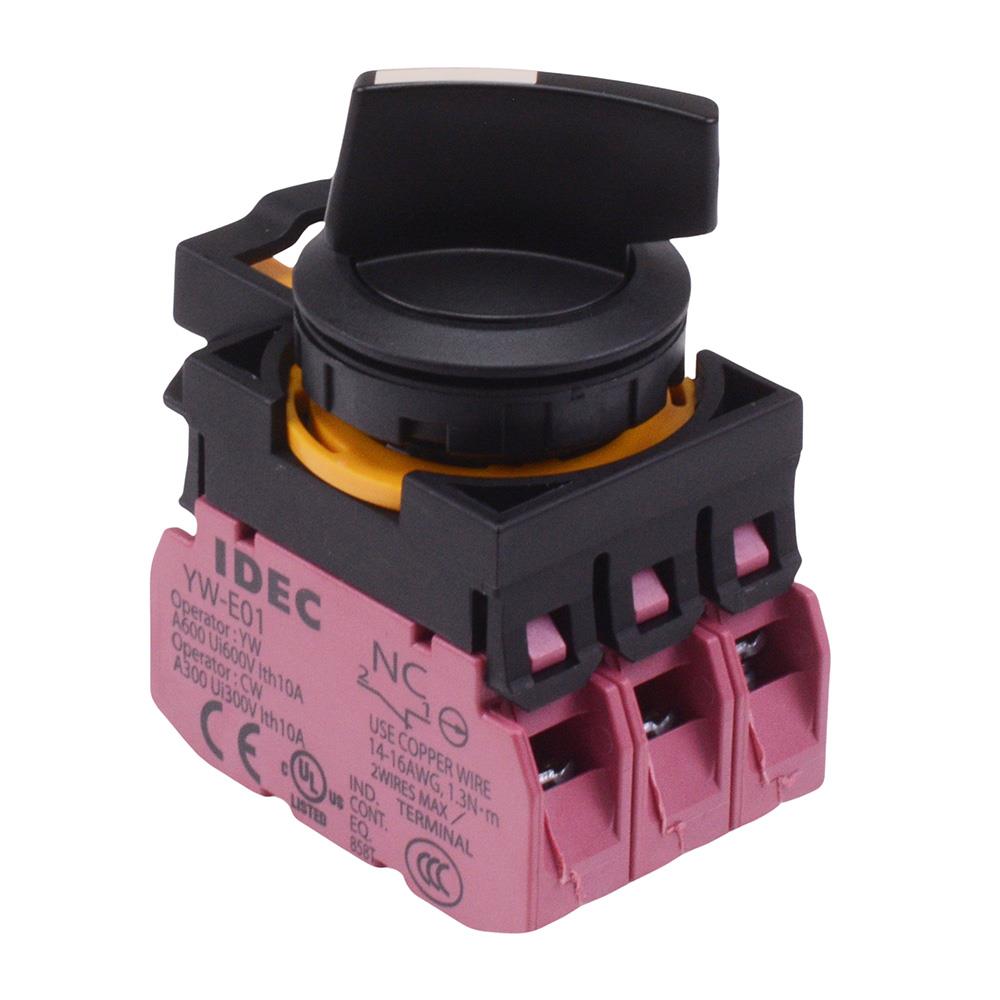

CW1S-3E03 3 Position Selector Switch 3NC IP65
from
$32.12
Ex Tax: $32.12
5 or more $28.59
10 or more $26.66
25 or more $25.05
50 or more $23.77
- Stock: In Stock
- Model: SCJ013341
- SKU: SCJ013341
Products Sold: 0
Product Views: 36
Ask a Question About This Product
- Specifications
Attributes List | |
Actuation | Maintained |
Contact Configuration | 3NC |
Head Type | Selector |
Contact Rating | 8A 24VDC, 10A 120VAC, 6A 240VAC |
Current Rating | 10A |
Illuminated | No |
Rated Thermal Current | 10A |
Mounting Style | Panel |
Number of Positions | 3 |
Protection Level | IP65 |
Operating Temperature | -25°C to +60°C |
Panel Cut Out | 22.3mm |
Product Series | CW |
Terminal Type | Screw |
Voltage Rating | 300V |
- Description
CW1S-3E03 3 Position Selector Switch 3NC IP65
The CW1S-3E03 is an industrial selector switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
3 positions 3NC contacts Screw contact blocks Maintained operation 22.3mm mounting hole IP65 protection level 2.5mm thick bezel 39.9mm depth behind the panel Rating: 120VAC 10A, 240VAC 6A, 8A 24VDC
The CW1S-3E03 is an industrial selector switch featuring a sleek and compact design with only 39.9mm behind the panel. The switch incorporates socoje's third-generation safety construction reducing labor and enhances level of safety. The design reduces the chance of unexpected operation and is also cleaner with less dust build-up. The sleek design makes the switch perfect for use with industrial machines and control panels.
