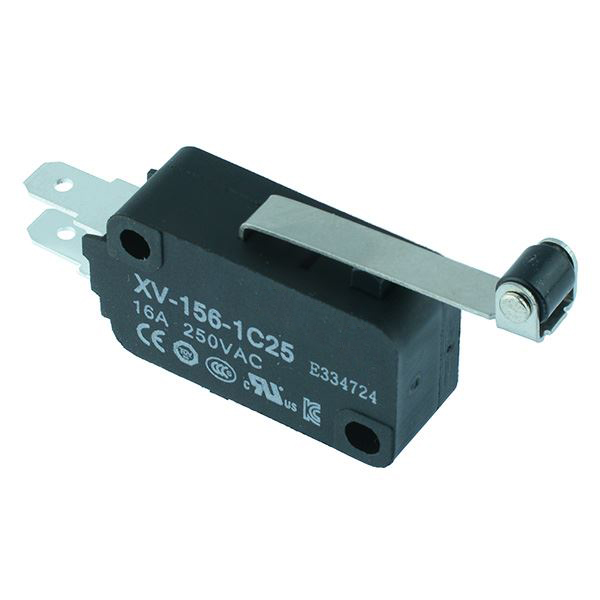

Medium Roller V3 Microswitch SPDT 16A 250VAC

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	16A 250VAC
Current Rating	16A
Electrical Life	100,000 Cycles
Release Force	14g
Number of Positions	2
Protection Level	IP40
Operating Force	125g
Operating Temperature	-25°C to +80°C
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Standard size V3 microswitch featuring a medium roller lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.

Roller lever actuator

Rating: 15A 250VAC

NO / NC contacts

4.8mm quick connect terminals

1,000,000 operation life

125g operating force

14g release force
