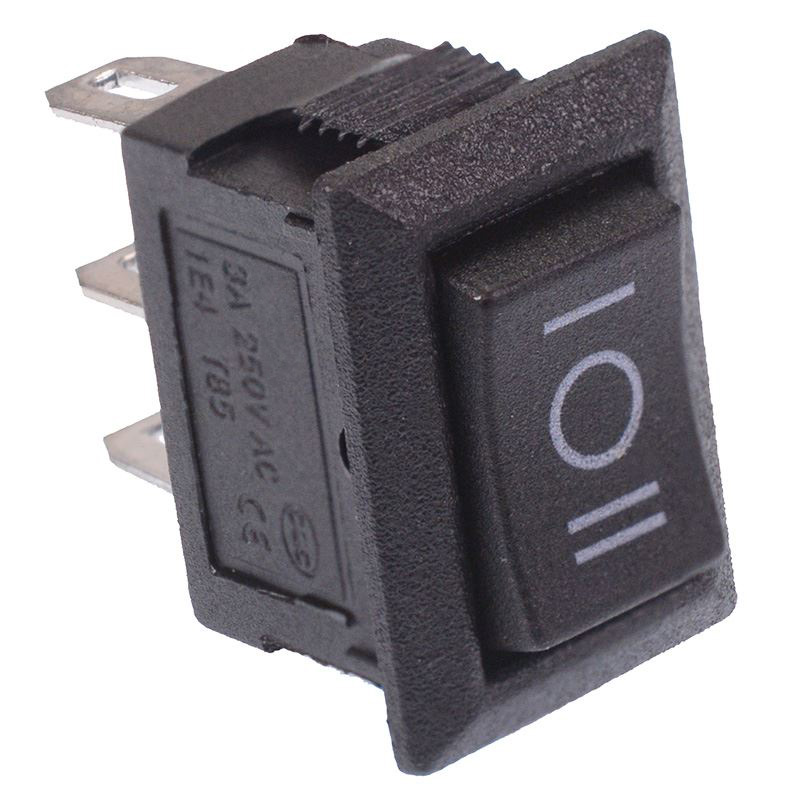

Miniature On-Off-On Rectangle Rocker Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	3A 250VAC, 6A 125VAC
Current Rating	6A
Illuminated	No
Electrical Life	10,000 Cycles
Material	PA66
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	12 x 8mm
Switch Operation	On-Off-On
Terminal Type	Solder
Voltage Rating	250VAC

Description

Miniature On-Off-On Rectangle Rocker Switch SPDT

Mini rectangular rocker switch featuring an On-Off-On switching action and SPDT contacts. The switch features solder terminals and is suitable for low power applications where space is limited.

On-Off-On action

SPDT contacts

Solder contacts

Rating: 3A 250VAC, 6A 125VAC

Panel cut-out: 12 x 8mm

Dimensions: 19.2 x 15 x 10.5mm (Height x Length x Width)
