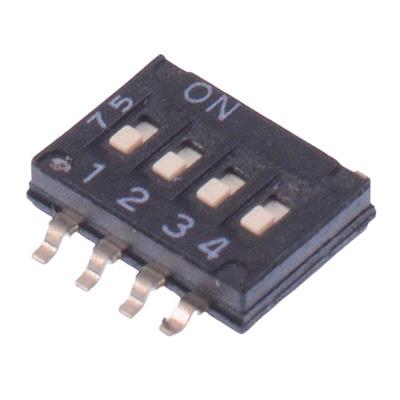

NHDS-04FTV Diptronics 4-Way Surface Mount 1.27mm DIP Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	25mA 24VDC
Current Rating	25mA
Mounting Style	Surface Mount
Number of Positions	2
Number of Ways	4
Operating Temperature	-40°C to 85°C
Pitch	1.27mm
Product Series	NHDS
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The NHDS-04FTV is a 4 way surface mount DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 100ma current rating, suitable for PCB applications.

Recessed actuator

4 ways

Contact rating: 25mA 24VDC

Gold plated terminals

1.27mm pitch

6.7mm terminal length

1.42mm height

Tape sealed
