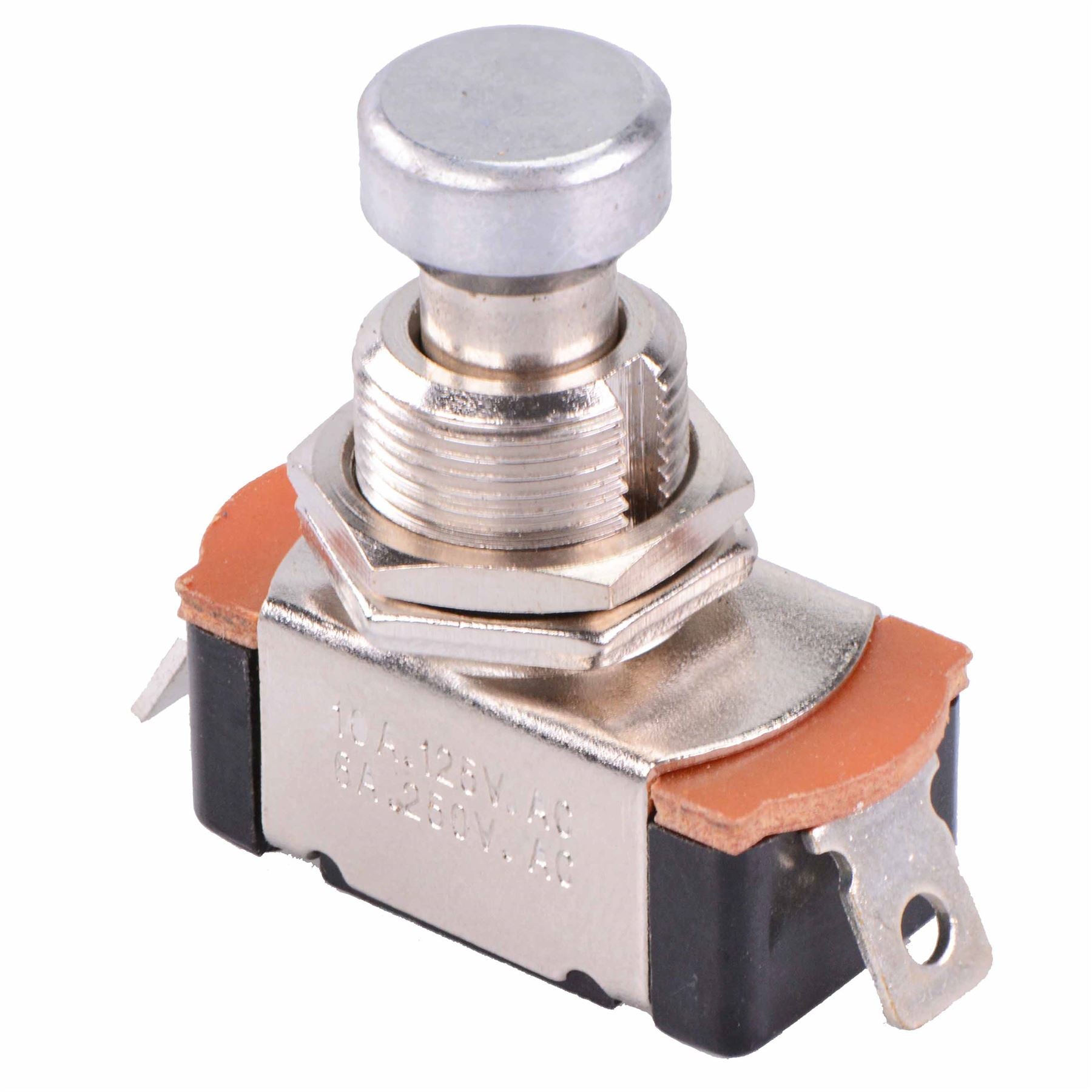

Off-(On) Low Profile Foot Switch SPST 12mm

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	6A 250VAC, 10A 125VAC
Current Rating	10A @ 125VAC
Illuminated	No
Electrical Life	50,000 Cycles
Illumination Colour	Non Illuminated
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	12mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Off-(On) Low Profile Foot Switch SPST 12mm

Low profile footswitch with a momentary operation designed to be operated by foot. The switch featues quick connect erminals and is suitable for panel mounting making it ideal for music applications.

SPST contacts

5.6mm quick connect terminals

Requires 12mm panel cut-out

Soft touch button

Rating: 10A 125VAC, 6A 250VAC

Dimensions: 32.4 x 36 x 14mm (Height x Length x Width)
