On-Off-On Long Rectangle Rocker Switch SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Rating	15A 250VAC, 20A 125VAC
Current Rating	20A
Illuminated	No
Electrical Life	10,000+ Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	3
Operating Temperature	-25°C to +85°C
Panel Cut Out	28 x 10mm
Switch Operation	On-Off-On
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

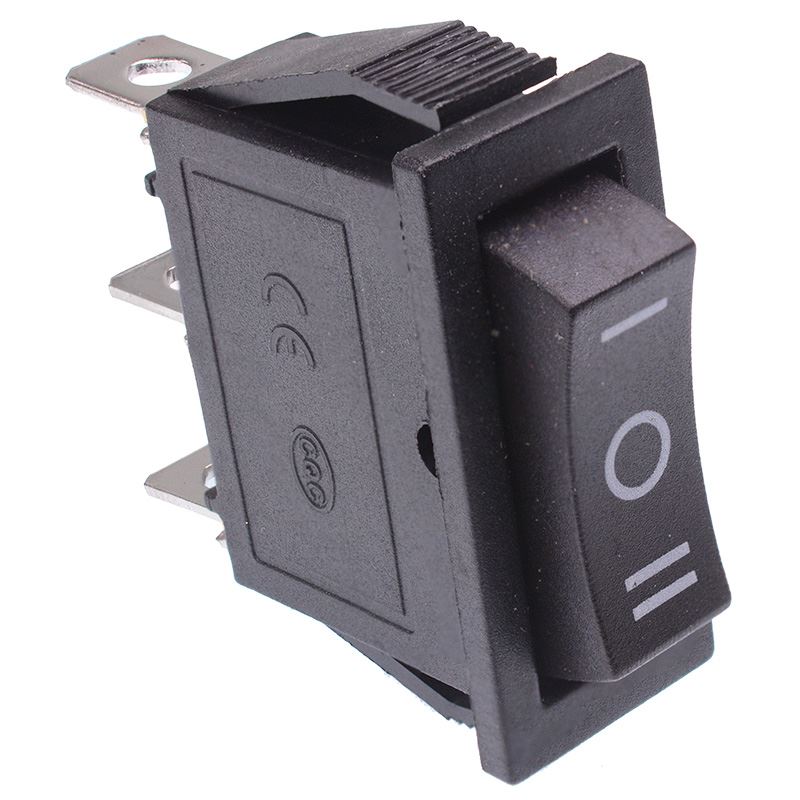

On-Off-On Long Rectangle Rocker Switch SPDT

Rectangle rocker switch with SPDT contacts and On-Off-On action suitable for snap-in mounting. The switch features a compact housing with a high rating making it suitable for a wide range of applications.

SPDT contacts

On-Off-On action

6.3mm quick connect terminals

Snap-in mounting

Panel cut-out: 28 x 10mm

Maximum voltage: 250VAC

Maximum current: 15A

Dimensions: 36.3 x 14 x 32mm (Height x Width x Length)
