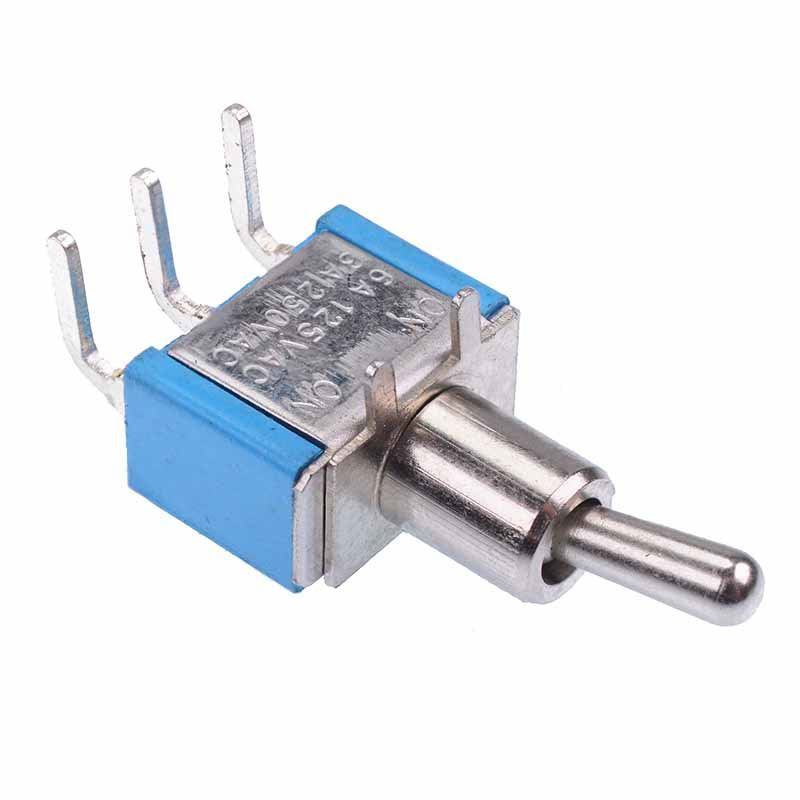

On-Off-On Miniature Horizontal PCB Toggle Switch SPDT

On-Off-On Miniature Horizontal PCB Toggle Switch SPDT
On-Off-On Miniature Horizontal PCB Toggle Switch SPDT
0 reviews - Write a review
from
$0.76
Ex Tax: $0.76
25 or more $0.66
100 or more $0.59
250 or more $0.55
500 or more $0.51
  • Stock: In Stock
  • Model: SCJ014767
  • SKU: SCJ014767
Products Sold: 0
Product Views: 60
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationLatching
Contact ConfigurationSPDT
Contact Rating6A 125VAC, 3A 250VAC
Current Rating6A
IlluminatedNo
Electrical Life10,000 Cycles
Mounting StylePCB
Number of Poles1
Number of Positions3
Operating Temperature-25°C to +85°C
Pitch4.7mm
Switch OperationOn-Off-On
Terminal TypeThrough Hole
Voltage Rating250VAC
  • Description

On-Off-On Miniature Horizontal PCB Toggle Switch SPDT

Mini On-Off-On toggle switch featuring SPDT contacts and a compact size, suitable for mounting horizontally directly to a PCB.

  • On-Off-On action
  • SPDT contacts
  • Solder PCB terminals
  • Rating: 6A 125VAC, 3A 250VAC
  • Terminal pitch: 4.7mm
  • Dimensions: 27 x 13.2 x 11.1mm (Length x Width x Height)

    • On-Off-On Miniature Horizontal PCB Toggle Switch SPDT
