PBAR2AFB000L0GX Green LED Momentary NO 22mm Piezo Switch Prewired IP66 ATEX

PBAR2AFB000L0GX Green LED Momentary NO 22mm Piezo Switch Prewired IP66 ATEX
PBAR2AFB000L0GX Green LED Momentary NO 22mm Piezo Switch Prewired IP66 ATEX
0 reviews - Write a review
from
$130.60
Ex Tax: $130.60
5 or more $116.23
10 or more $108.40
25 or more $101.87
50 or more $96.64
  • Stock: In Stock
  • Model: SCJ010331
  • SKU: SCJ010331
Products Sold: 0
Product Views: 65
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
Contact ConfigurationSPST
Contact Rating200mA 6VAC/DC, 50mA 24VAC/DC
Current Rating0.2A
IlluminatedYes
Electrical Life50,000,000 Cycles
Illumination ColourGreen
Illumination Voltage5VDC
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP66
Operating Force2 to 6N
Operating Temperature-40°C to +55°C
Panel Cut Out22.2mm
Product SeriesPBA
Switch OperationOff-(On)
Terminal TypeFlying Leads
Voltage Rating24VAC/DC
  • Description

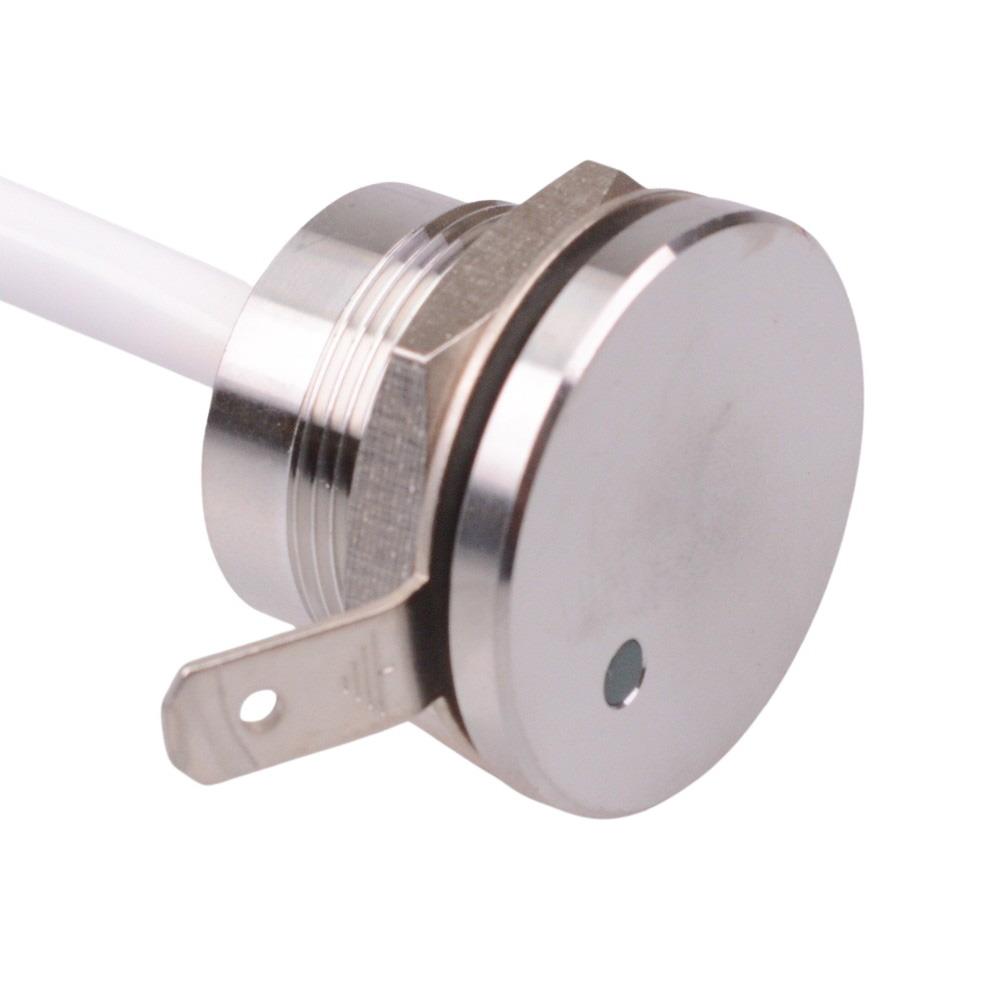

The PBAR2AFB000L0GX is a illuminated22.2mm momentary piezo switch manufactured by socoje and ATEX approved. The switch features a stainless steel body and is terminated with flying leads. The switch is sealed to IP66 and features a very long life expectancy, making it suitable for a wide range of applications in harsh environments.

  • Body material: stainless steel 316L
  • Panel cut-out: 22.2mm
  • Contacts: SPST-NO
  • Green 5VDC LED dot
  • Protection rating: IP66
  • Rating: 200mA 6VAC/DC, 50mA 24VAC/DC
  • Terminals: flying leads 300mm
  • Bushing: flat operator
  • Diameter: 28.0mm

    • PBAR2AFB000L0GX Green LED Momentary NO 22mm Piezo Switch Prewired IP66 ATEX
