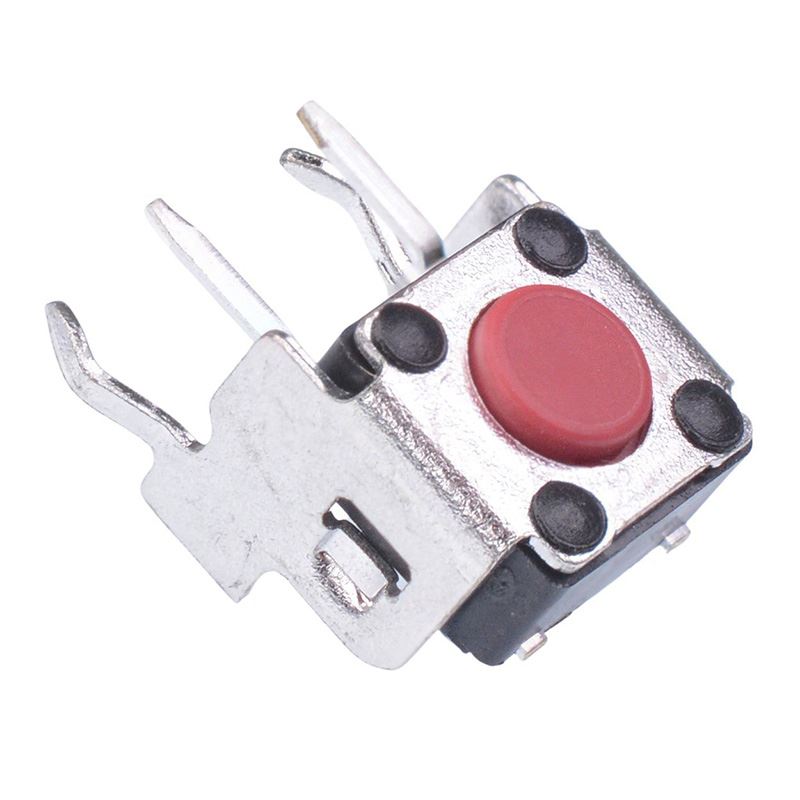

PHAP5-30RA2F3T2N2 3.15mm Button 6mm x 6mm Right Angle Through Hole Tactile Switch 260g

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	3.15mm
MOQ	5
Contact Configuration	SPST
Contact Material	Silver Plated Phosphor Bronze
Contact Rating	50mA 12VDC
Current Rating	50mA
Material	Polyamide
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Force	260g
Operating Temperature	-25°C to +70°C
Product Series	PHAP5-30
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

The PHAP5-30RA2F3T2N2 is a right angle tactile switch with a 6mm x 6mm standard package and 3.15mm height. The switch provides a positive tactile feedback and is supplied in bulk packaging, suitable for through hole mounting.

Right angle through hole mounting

6mm x 6mm package

3.15mm height

Rating: 50mA 12VDC

Operating force: 260g

Travel: 0.25mm

socoje PHAP5-30 series
