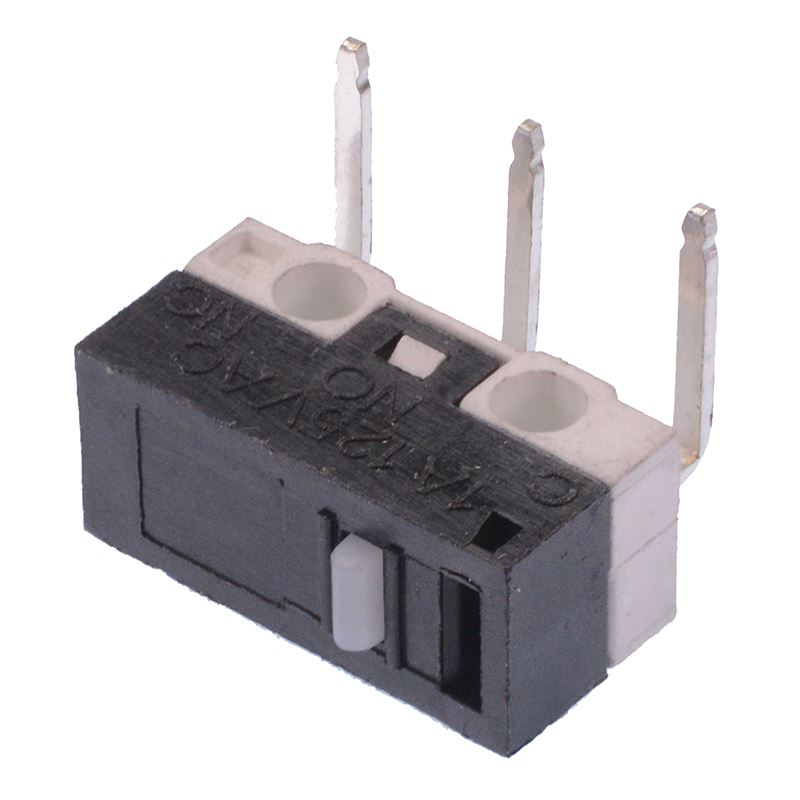

Push Button Subminiature Horizontal PCB Microswitch SPDT 3A

Buy Now

Specifications

Attributes List
Contact Configuration	SPDT
Contact Rating	3A 250VAC
Current Rating	3A
Electrical Life	50,000 Cycles
Mounting Style	PCB
Number of Positions	2
Operating Force	100gf
Operating Temperature	-25°C to +85°C
Terminal Type	Through Hole
Voltage Rating	250VAC

Description

Subminiature microswitch featuring a push button actuator housed in a compact package capable of switching up to 3A. The switch features left hand PCB terminals and is suitable for a wide range of applications.

Push button actuator

Rating: 3A 250VAC

NO / NC contacts

Left hand PCB terminals

Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
