TP32P008000 On-(On) Sub-Miniature PCB Push Button Switch

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4A 20VAC/DC
Current Rating	0.4A
Illuminated	No
Electrical Life	60,000 Cycles
Illumination Colour	Non Illuminated
Material	PBT
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-30°C to 85°C
Pitch	2.54mm
Product Series	TP
Switch Operation	On-(On)
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

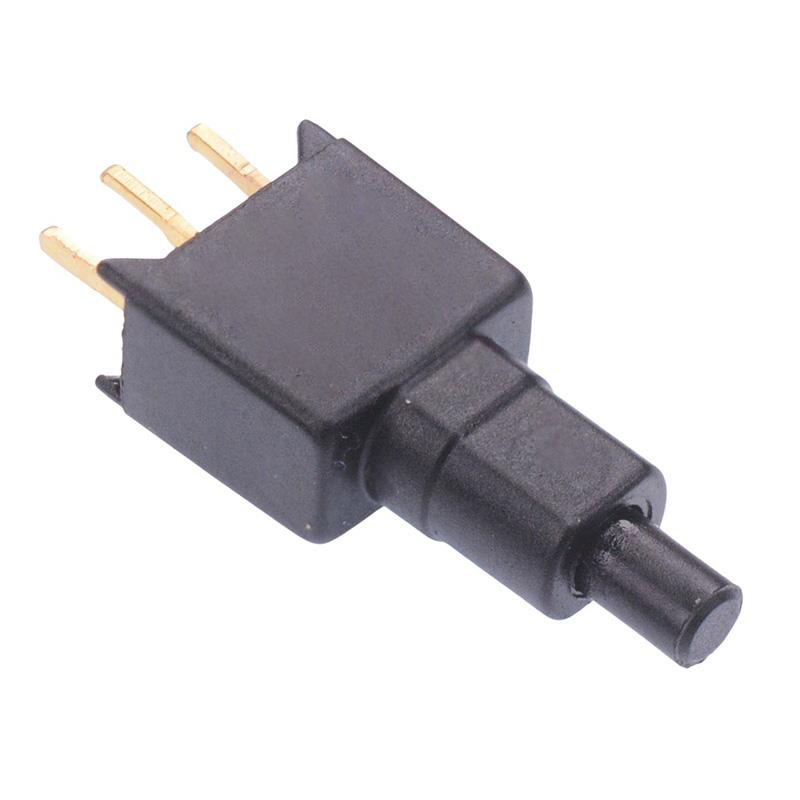

TP32P008000 On-(On) Momentary Sub-Miniature PCB Push Button Switch SPDT
The TP32P008000 is a sub-miniature momentary push button switch manufactured by socoje featuring SPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.

On-(On) momentary operation

SPDT contacts

PCB mounting

Gold plated brass terminals

2.54mm pitch

Rating: 0.4A 20V
