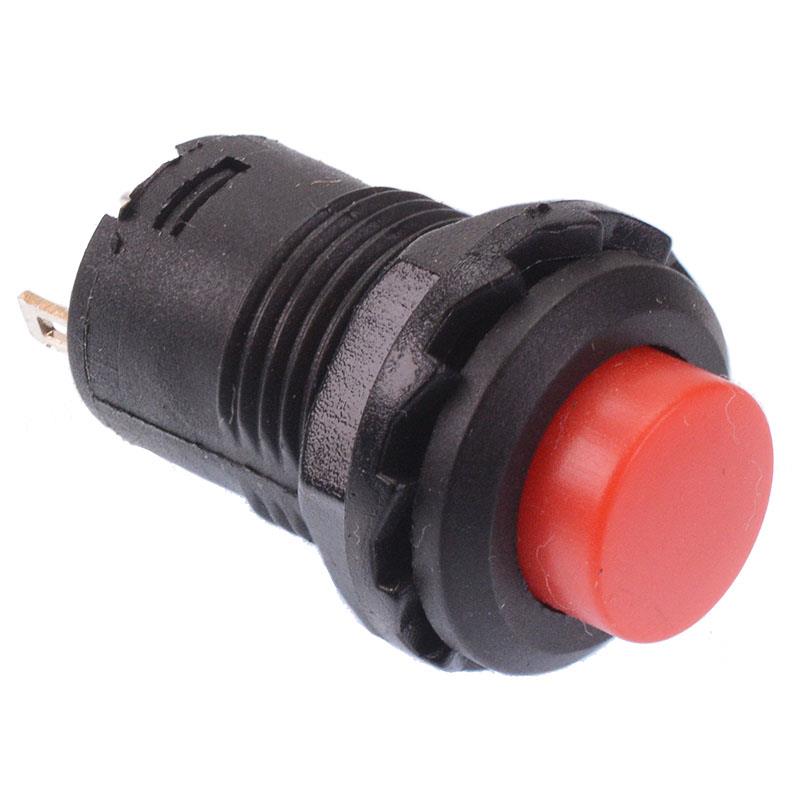

Red 12mm Latching On-Off Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Rating	1.5A 250VAC
Current Rating	1.5A
Illuminated	No
Electrical Life	10,000 Cycles
Illumination Colour	Non Illuminated
Material	PA66
Mounting Style	Panel
Number of Positions	2
Operating Temperature	-20°C to +65°C
Panel Cut Out	12mm
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	250VAC

Description

Red 12mm Latching On-Off Switch SPST

Low cost round push button switches with a latching operation and solder lug terminals ideal for a wide range of applications.

Suitable for panel mounting

Solder lug terminals

Latching on-off operation

SPST contacts

12mm panel cut-out

Dimensions: 30.5 x 16.5mm (Height x Diameter)

Maximum Panel Thickness: 5mm
