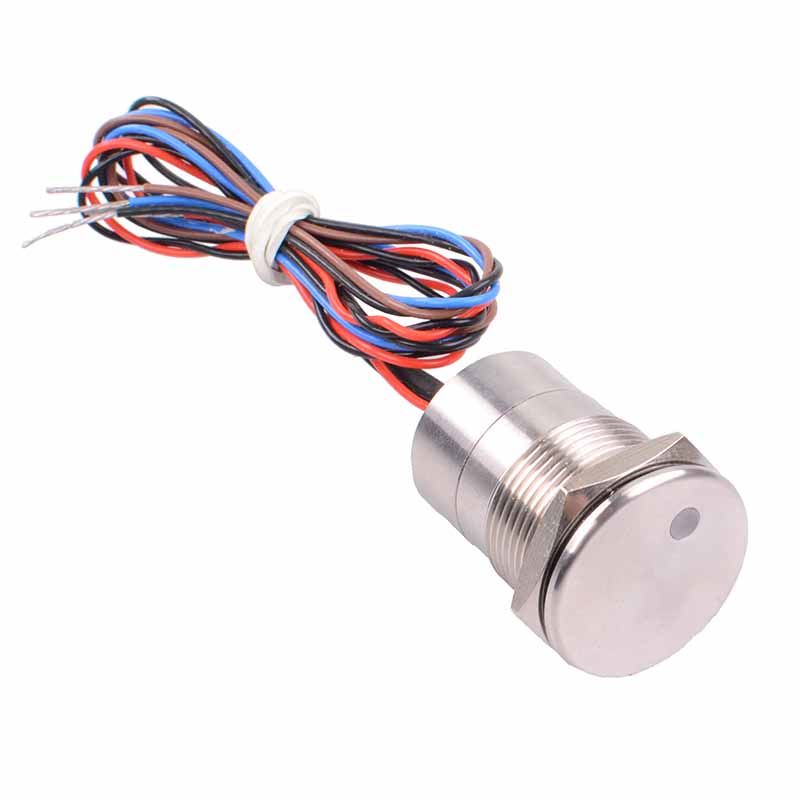

Red Dot LED Off-(On) 19mm Metal Momentary Piezo Switch NO SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Red
Contact Configuration	SPST
Contact Rating	0.2A 24V
Current Rating	0.2A
Illuminated	Yes
Electrical Life	50,000,000+ Cycles
Illumination Colour	Red
Illumination Voltage	12VDC
Material	Aluminium
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP68
Operating Temperature	-40°C to +75°C
Panel Cut Out	19mm
Switch Operation	Off-(On)
Terminal Type	Flying Leads
Voltage Rating	24VDC

Description

Red dot momentary piezo switch featuring a sealed and vandal proof design providing solid state switching. The switch has a life expectancy of over 50 million cycles and is ideal for demanding applications where reliability is critical.

NO momentary function

Red LED Dot 12VDC illumination

19mm panel cut-out diameter

1.3mm height flat operator

22mm diameter head

Flying leads

Rating: 200mA 24VAC/DC
