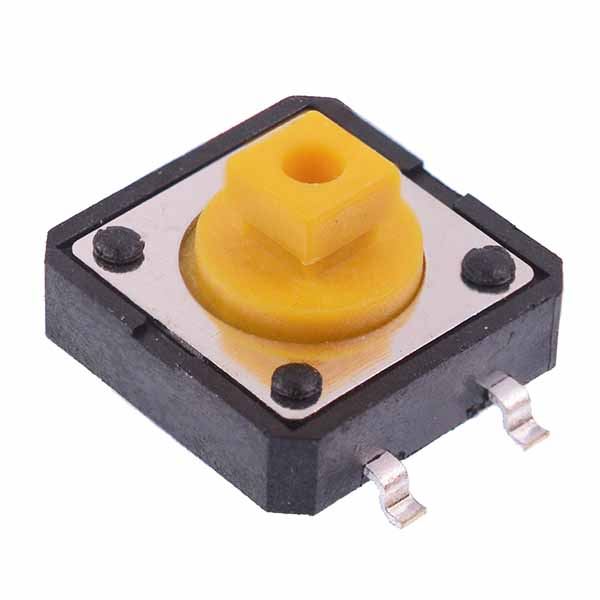

12x12x7.3mm SMT Momentary PCB Tactile Switch

Buy Now

Specifications

Attributes List
Actuation	Momentary
Height	7.3mm
MOQ	10
Contact Configuration	SPST
Contact Rating	50mA 12VDC
Current Rating	50mA
Electrical Life	100,000 Cycles
Mounting Style	PCB
Number of Positions	2
Operating Force	180gf
Operating Temperature	-20°C to +70°C
Switch Operation	Off-(On)
Terminal Type	Through Hole
Voltage Rating	12VDC

Description

7.3mm height tactile switch featuring a square actuator and housed in a standard 12 x 12mm size suitable for SMD applications.

7.3mm height

Square actuator can be used with caps

SPST normally open contacts

Positive click action

4 terminal mounting

Rating: 50mA 12VDC
