Vertical Semi-Automatic Tapping & Pillar Drilling Machine

Buy Now

Specifications

Industry-specific attributes
Type	Pillar Drilling Machine
Max. Drilling Dia. (mm)	20
Other attributes
Condition	New
Range of Spindle Speed(r.p.m)	1 - 1400 r.p.m
CNC or Not	Normal
Place of Origin	Zhejiang, China
Weight (KG)	500 KG
Key Selling Points	Automatic
Showroom Location	None
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Core Components	Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
Drilling Speed	430mm
Model Number	N74
Voltage	380V/220V
Dimension(LWH)	4893115cm
Power (kW)	1.5
After-sales Service Provided	Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Name	Tapping machine
Spindle Taper	MT.2
Swing	430mm
Working Area	340*340mm
Application	metal or wood
Max. tapping diameter	M16
Spindle travel:	65mm
Keyword:	automatic tapping machine
Color	White Grey
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:	None
Certificate:	CE ISO
Packaging and delivery
Packaging Details	Each piece is wrapped with stretch film or packed in a wooden case.
Port	ningbo
Supply Ability
Supply Ability	500 Set/Sets per Month 500sets/mon drilling machine

Video

Description

Vertical Multi-Spindle Semi-Automatic Rubber Tapping & Pillar Drilling Machine - Metal/Wood

Product Description

High precision tapping to ensure concentricity and vertical degree
Simple operation, high efficiency rapidly
Saving time ,labor,province

Model :

1) Automatic cycle operation, there is no requirement for the operateration experience, help you reduce labor costs
2) Support pedal-operated, and leave operator hand free to improve production efficiency
3) Timer function support long time high-speed continuous loop and one-way loop.

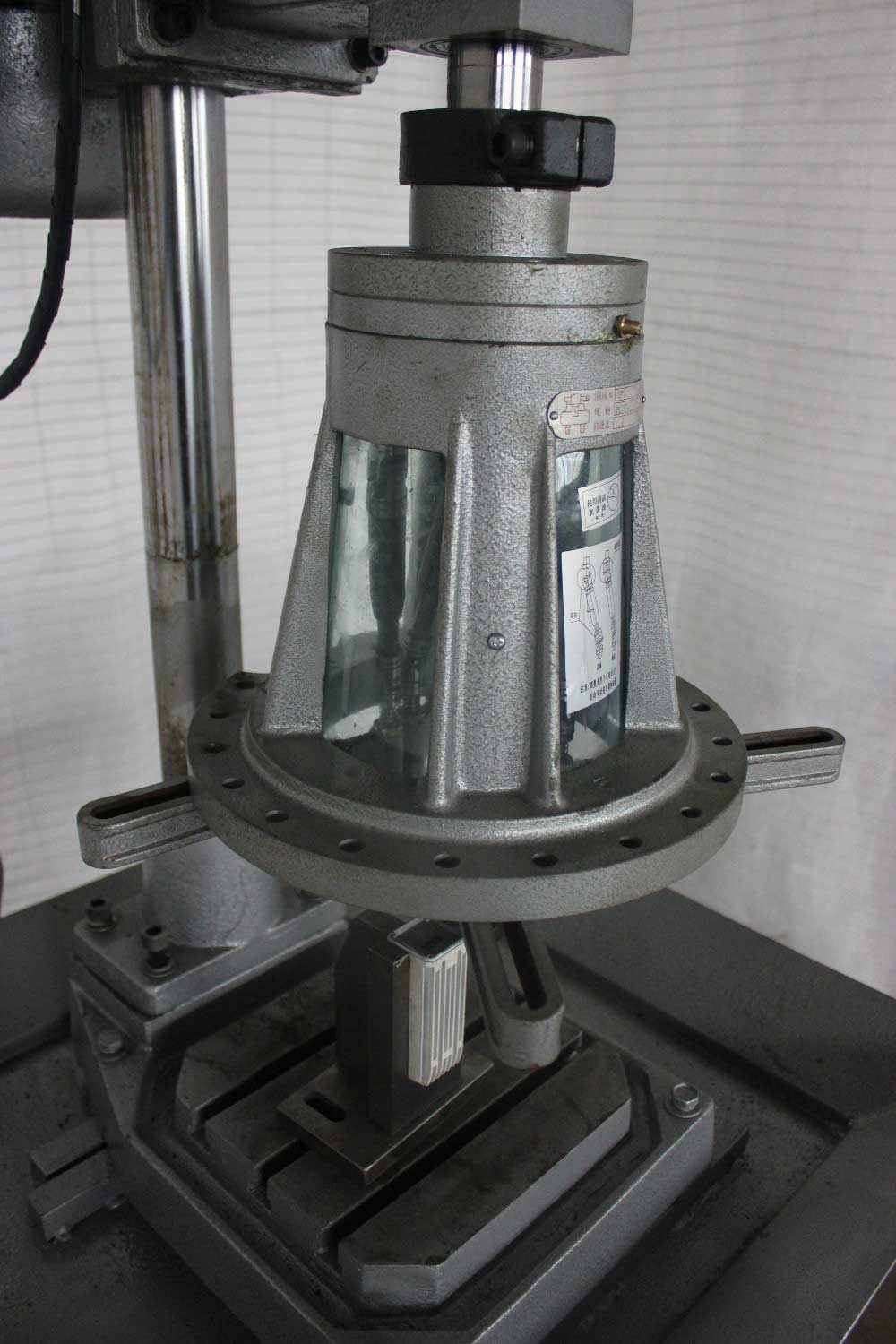

4) Could be equipped with multiple axes, Drilling multiple holes at the same time, Greatly improves the production efficiency and save labor cost, Increasing the competitiveness.

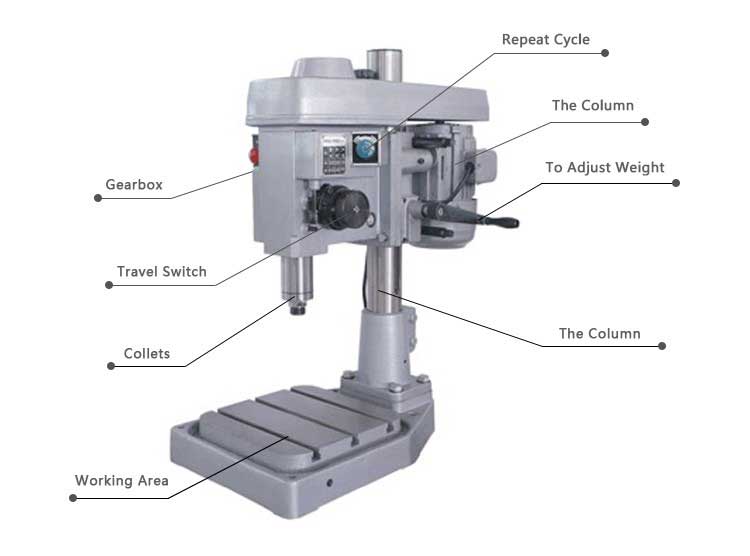

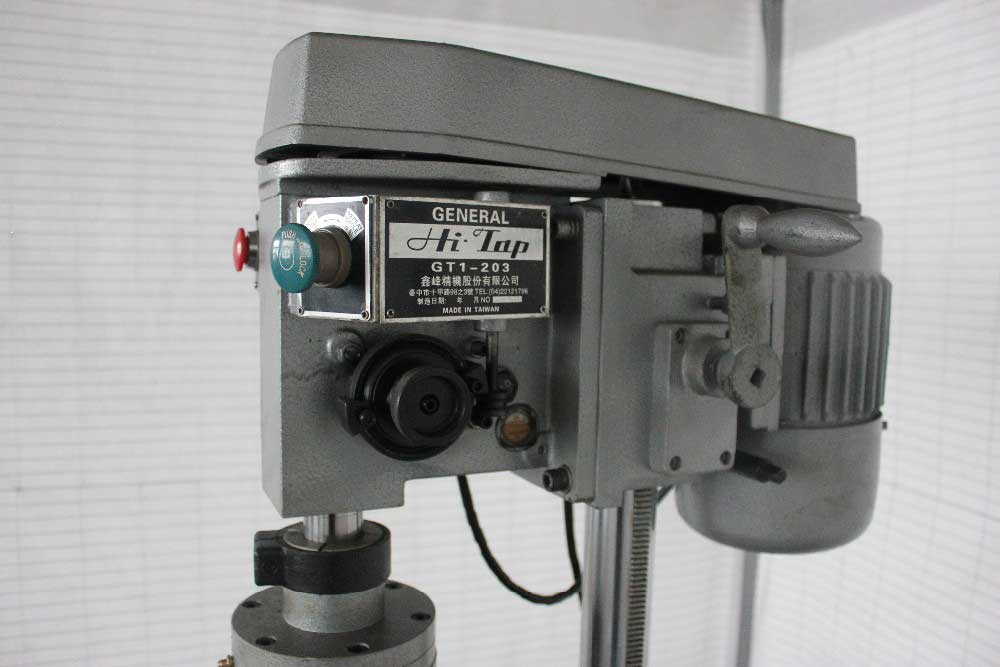

Product Images

High Precision Vertical Multi Spindle Semi Automatic Rubber Tapping Machine Pillar Drilling Machine Metal or Wood CE ISO 500 KG

Details information
Model	DK-II
Bore diameter	M16
Swing	430mm
Distance from Spindle Nose to Working Table	470mm
Motor Power	1.5KW
Voltage	380V 50HZ
Working Table Size	340*340mm
Weight(not including the cabinet)	150kg

Great Features Of Tapping Machine

Good design, high quality and easy for your operation.
