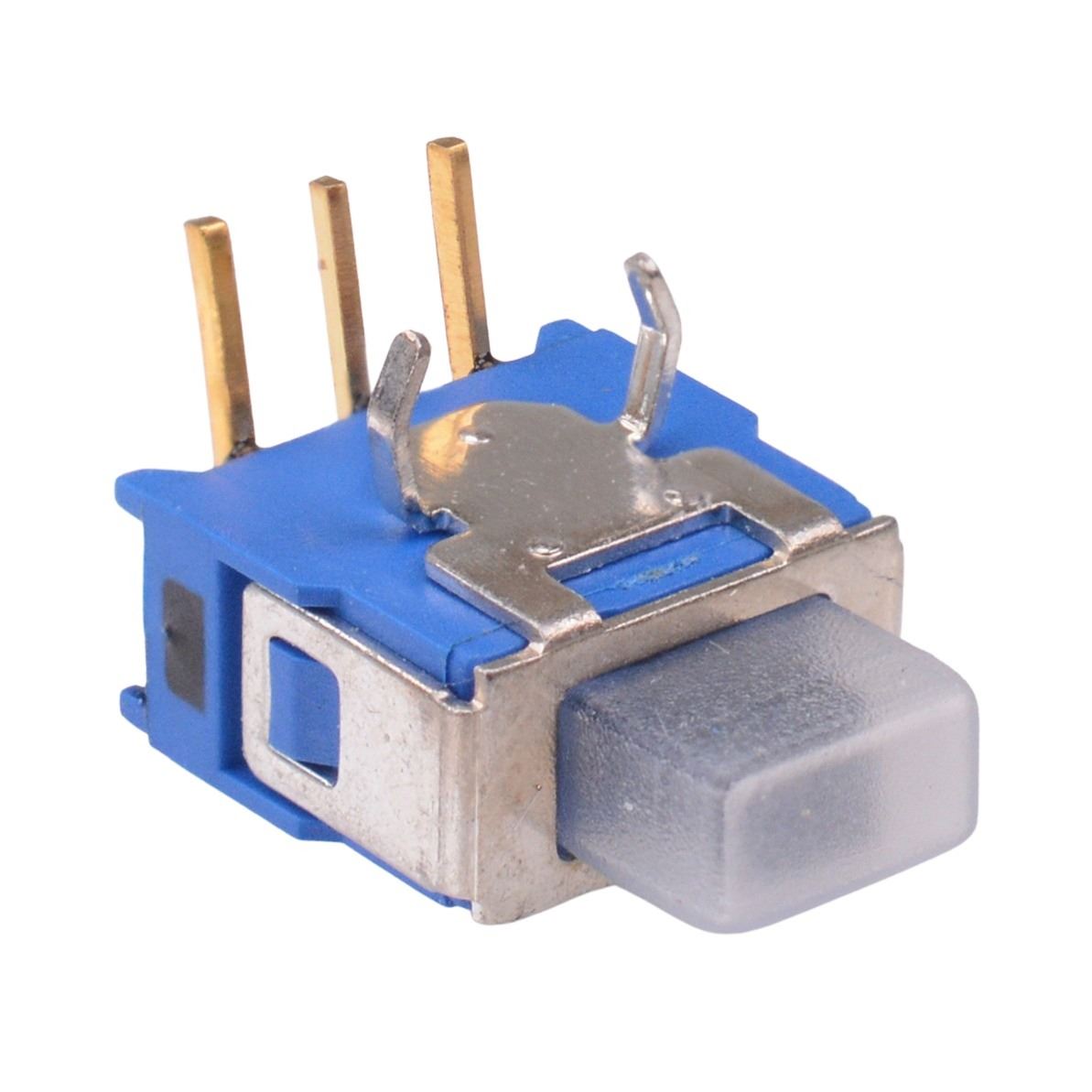

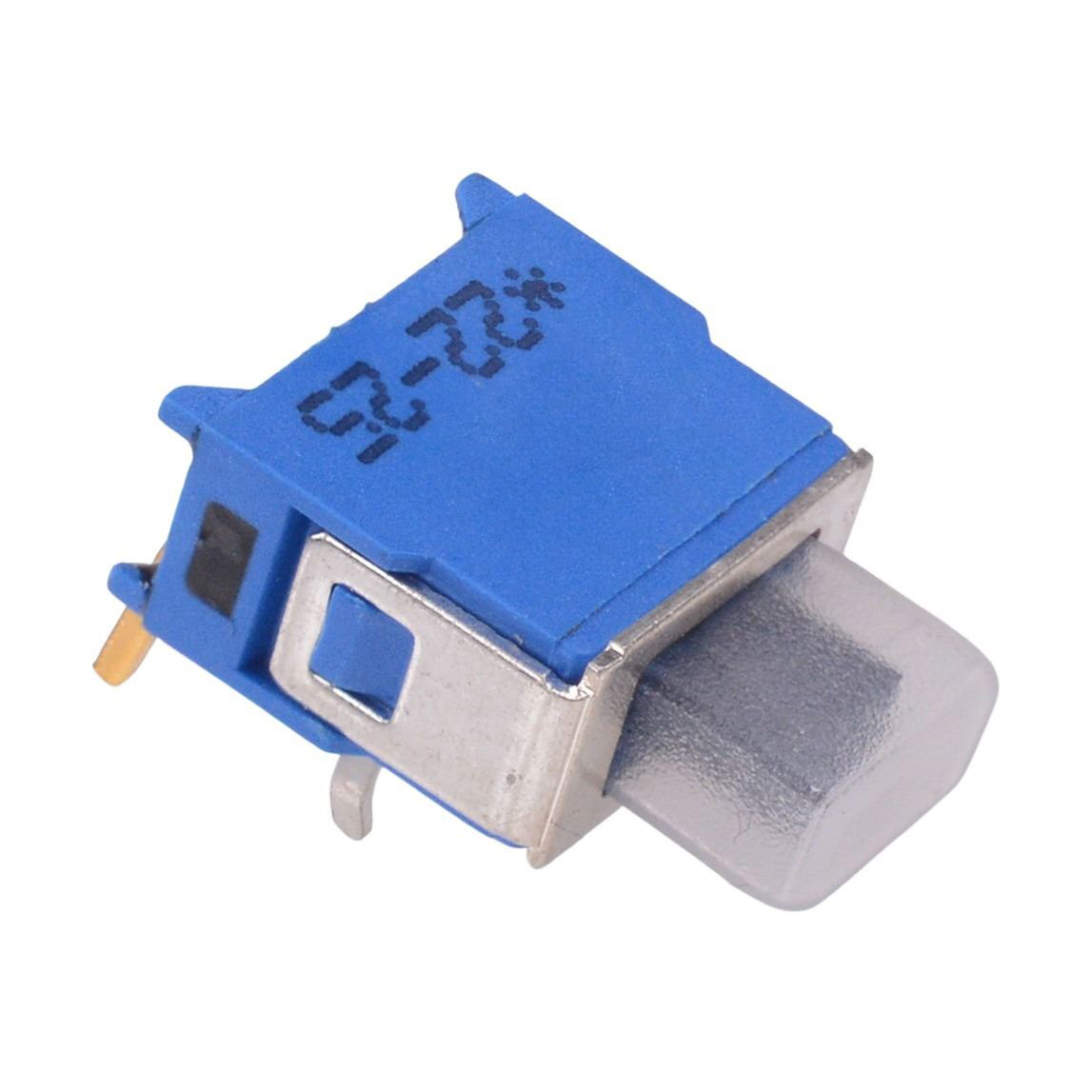

TG39W000050 On-Off-On Sub-Miniature Right Angle PCB Slide Switch SPDT

TG39W000050 On-Off-On Sub-Miniature Right Angle PCB Slide Switch SPDT 1

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold Plated Brass
Contact Rating	0.4A 20V
Current Rating	0.4A
Electrical Life	30,000 Cycles
Material	Thermoplastic
Mounting Style	PCB
Number of Poles	1
Number of Positions	3
Operating Temperature	-30°C to 85°C
Pitch	2.54mm
Product Series	TG
Switch Operation	On-Off-On
Terminal Type	Solder
Voltage Rating	20VAC/DC

Description

The TG39W000050 is a sub-miniature slide switch manufactured by socoje featuring SPDT contacts, designed for horizontal PCB mounting. The slide switch features a single piece case and epoxy sealed terminals making them suitable for a wide range of applications.

On-Off-On operation

SPDT contacts

Right angle horizontal mounting

Gold plated brass terminals

2.54mm pitch

Rating: 0.4A 20V

Download
