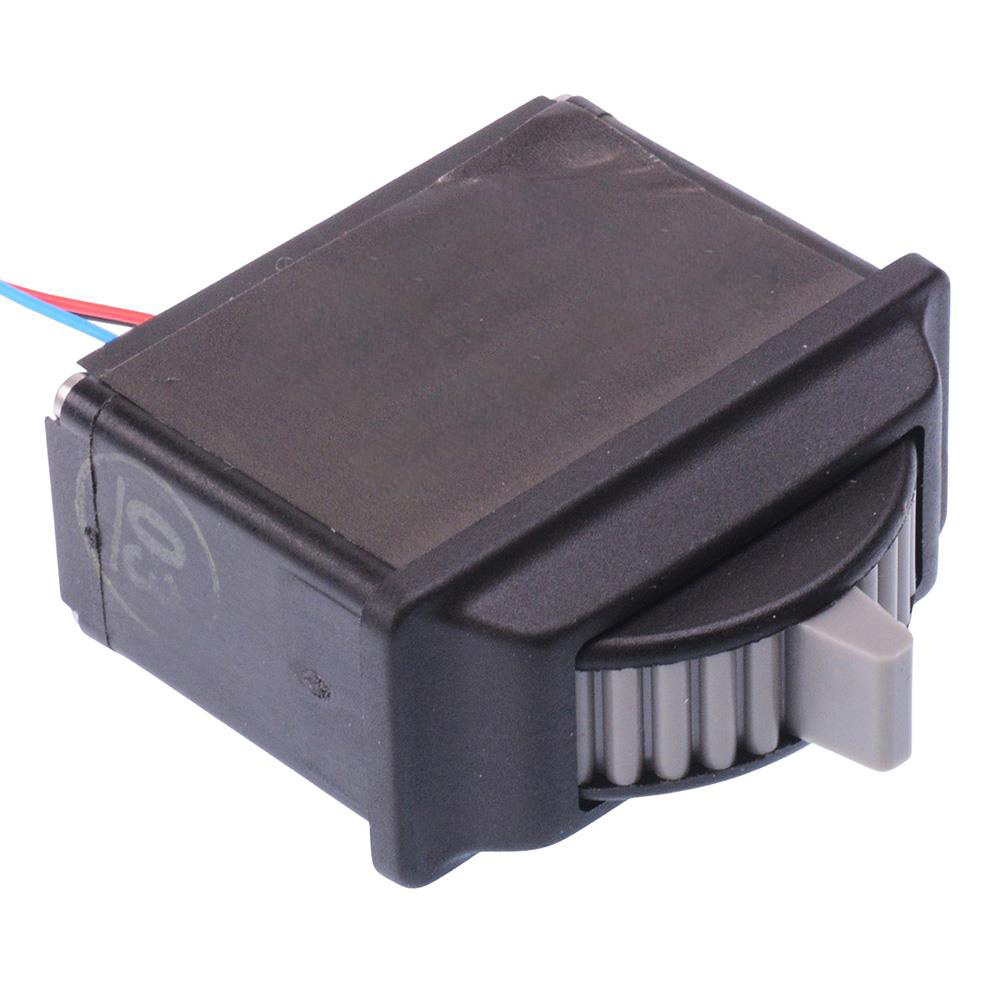

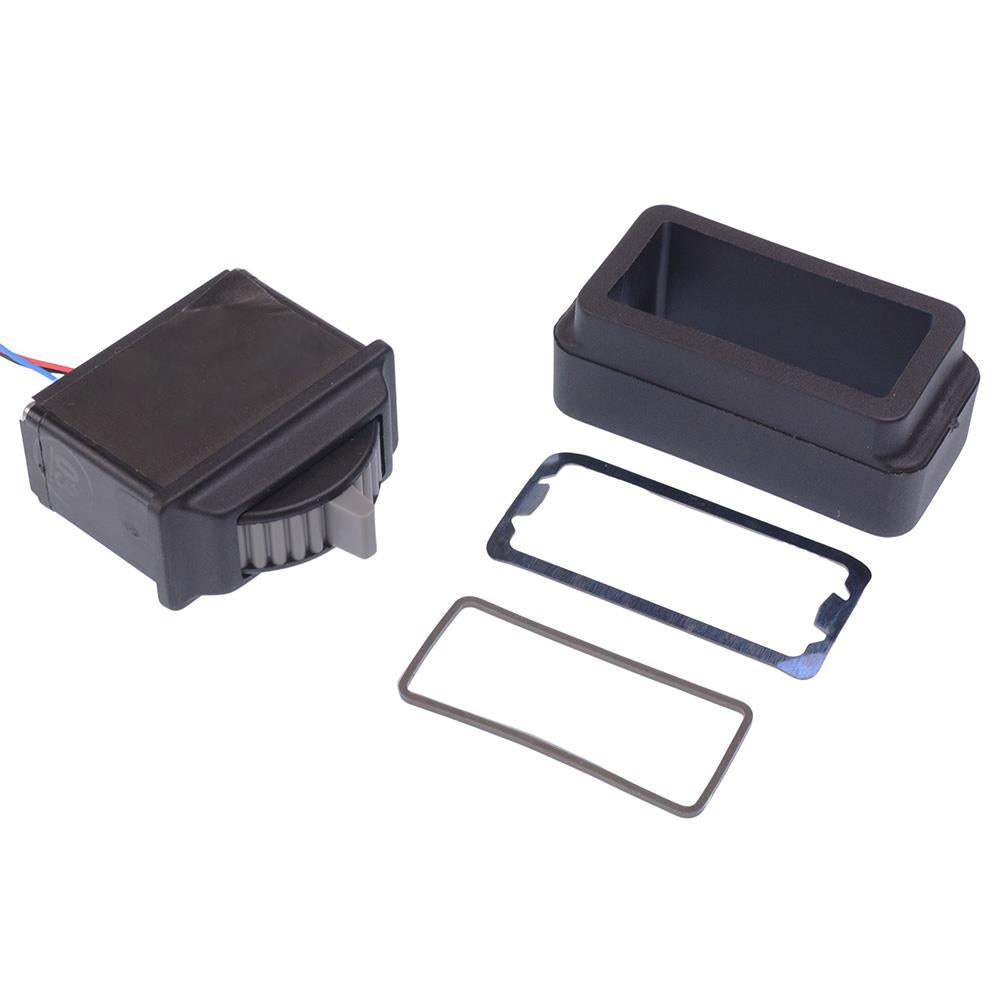

TW01GRY Hall Effect Thumbwheel Self Centering Joystick

Buy Now

Specifications

Attributes List
Handle	Thumbwheel
Joystick Travel	±40°
Mechanical Life	5,000,000 Cycles
Number of Axis	1
Technology	Hall Effect
Protection Level	IP67
Operating Temperature	-40°C to +85°C
Terminal Type	Tail Leads

Description

The TW01GRY is a minimum width, low profile joystick that provides smooth, precise fingertip control in one axis. Featuring non-contacting hall effect technology for long life performance, the joystick offers excellent proportional control, stable output, long life and is designed for panel mount applications and joystick integration.

Supply voltage: 5VDC

Output voltage: 0-5VDC

Spring return to center

IP67 sealing

Grey actuator

Panel cut-out: 36.45 x 16.05mm

28AWG 25cm cables

Default wire colour code: red +5V, black ground, blue output
