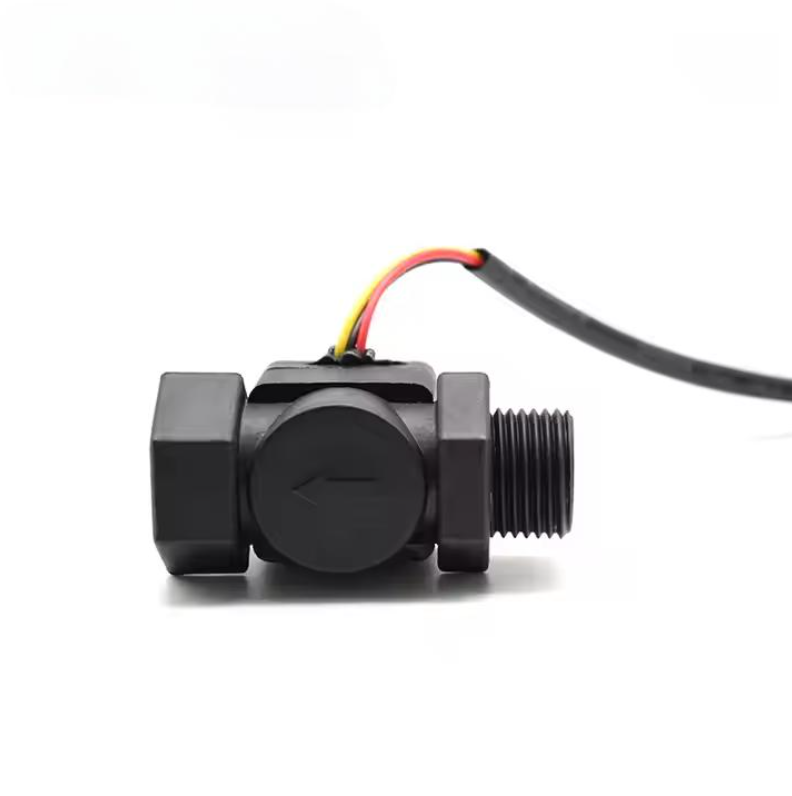

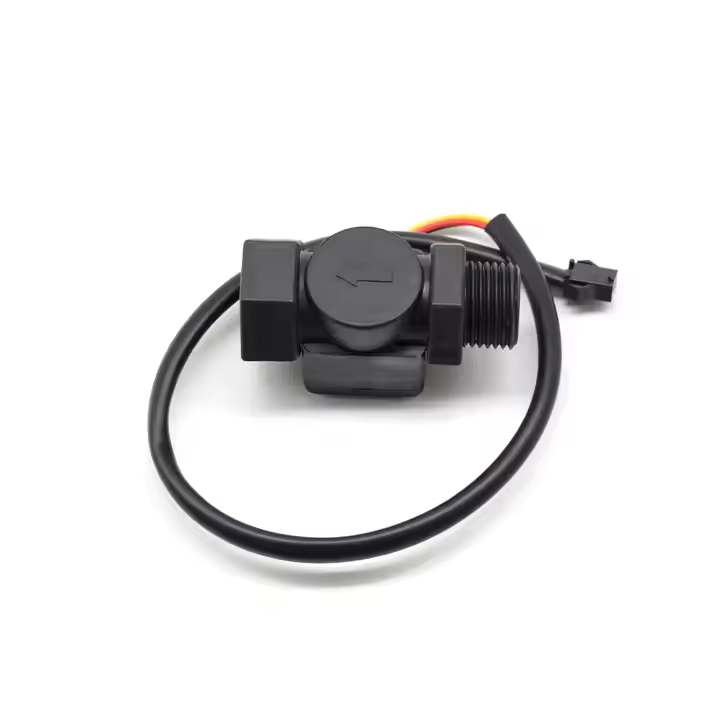

Ultra-sensitive magnetic electric water heater flow Fluid Flow Meter Water Control Hall Water Flow switch Sensor

1.Water inlet and outiet in a zigzag structure2. Waterproof and explosion-proof, heat-resistantand cold resistant

3. Can be used as a flow meter or water fiow switch

4. Pulse signal output

5.Simple structure and convenient installation

Buy Now

Technical Parameters

Use

flow detection flow meter

Other attributes

Mounting Type

Any direction

Description

flow rate detection

Model Number

SCJ2300107J

Type

Liquid Flow Sensor

Series

flow sensor

Place of Origin

China

Brand Name

SCJ

Theory

Hall principle

Output

Pulse signal output

Description

flow rate sensor

Using objects

Water, etc

Low temperature version

≤60℃

High temperature version

≤115℃

Optional voltage range

3V,5V,24V

Rated voltage and current

DC3V,≤10μA ; DC5V,≤10mA

pulseDuty Ratio

50%

insulation resistance

>100MΩ

electric strength

AC500V,50Hz

Flow range

1-30L/min

pressure resistant performance

≤1.75 Mpa

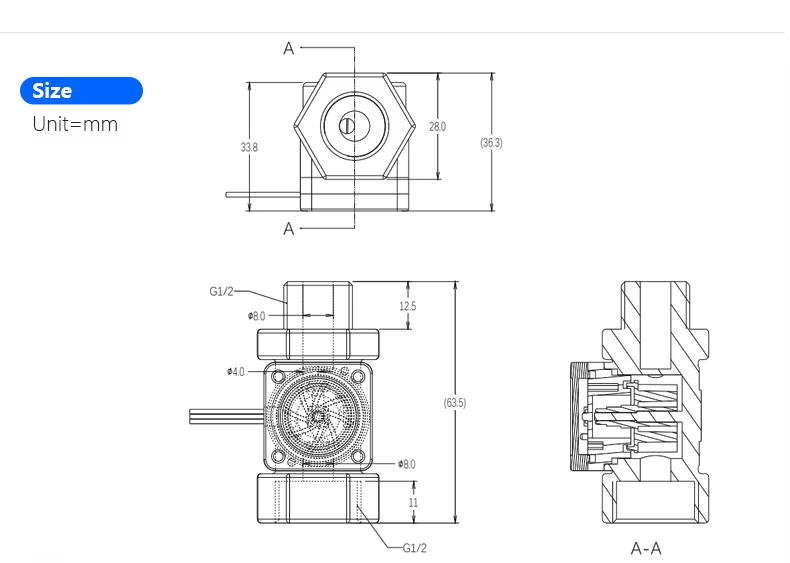

Installation method

Using media	Water; Low temperature version ≤ 60 ℃; High temperature version ≤ 115 ℃
Optional voltage range	3V:1.8-5.5V	5V:2.2-18V	24V:4.5-26.4V
Rated voltage/current	DC3V,≤10μA	DC5V,≤10mA	DC5V,≤10mA
Output voltage Pulse duty cycle: 50%	rated voltage＜DC5V: high level Vcc Above 0.2V, Low Level Below 0.2V rated voltage ≥ DC5V: high level Vcc Above 0.5V, Low Level Below 0.5V
insulation resistance	>100 MΩ
Electrical strength	AC500V,50Hz
Flow range	1-30L/min
Voltage resistance performance	≤1.75 Mpa

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X5 cm

Single gross weight:

1.000 kg

Description

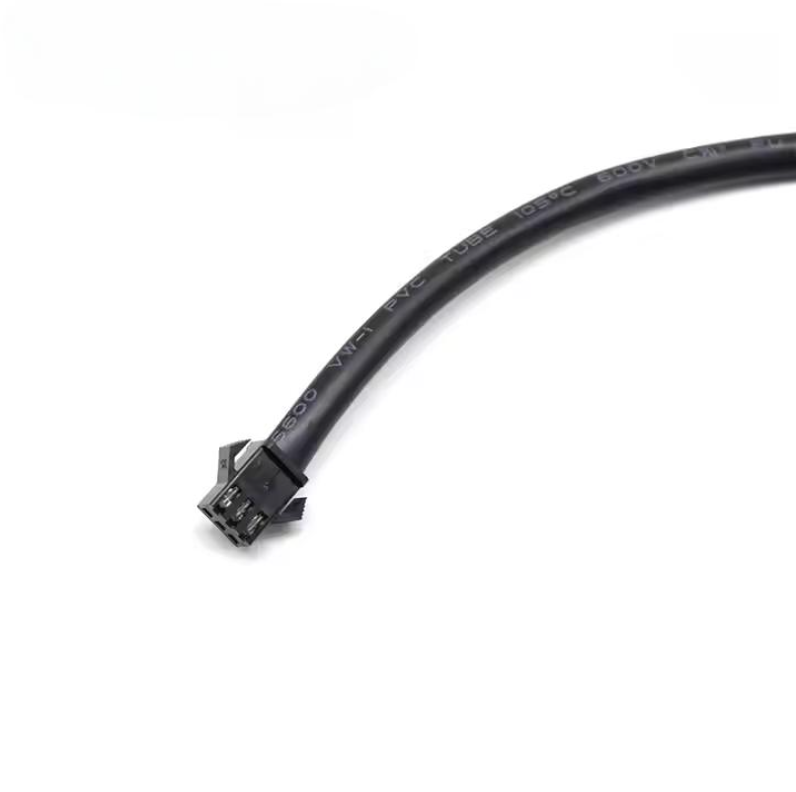

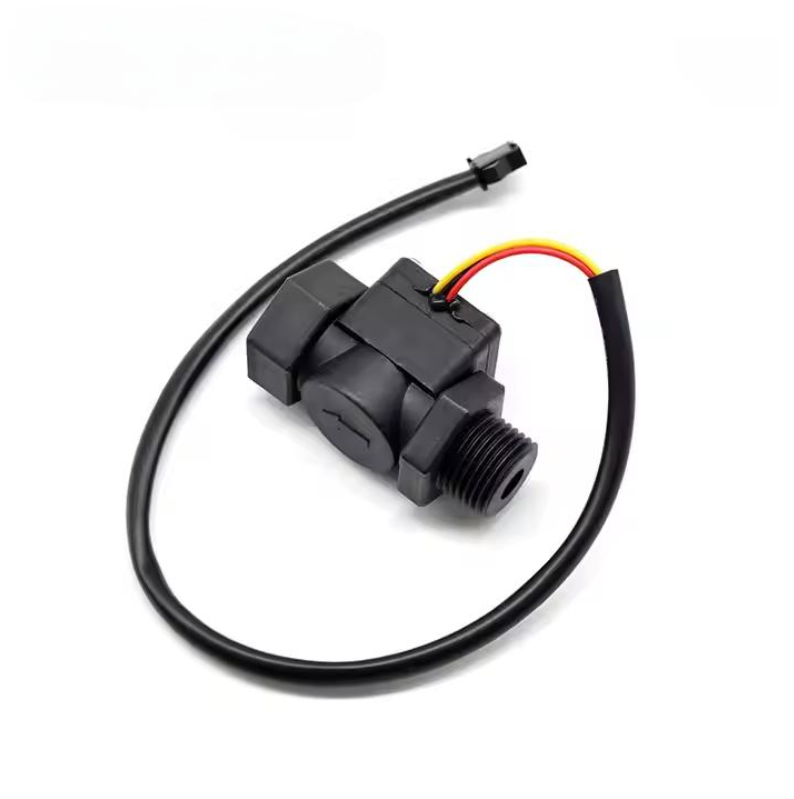

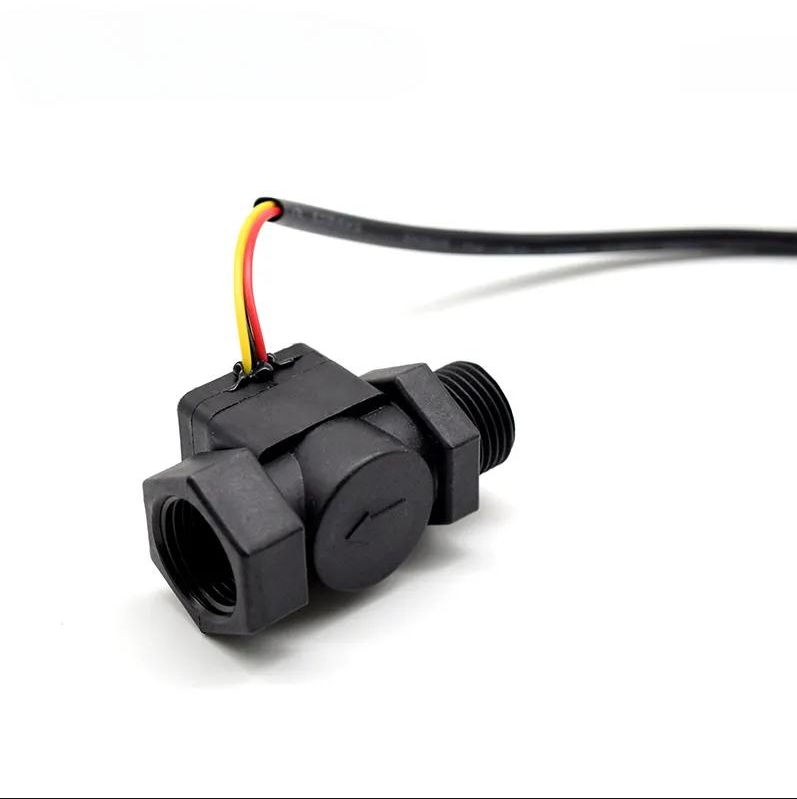

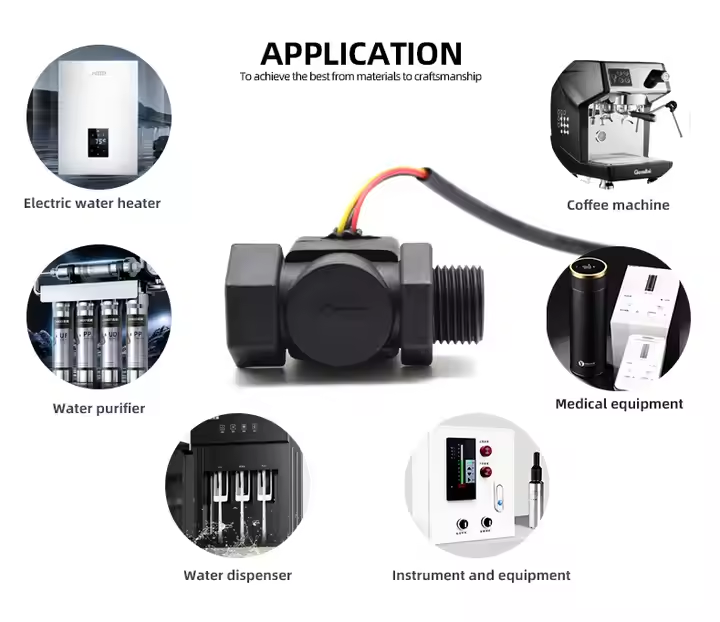

This composite water flow sensor with inner and outer teeth, straight in and out water, Hall working principle, pulse signal output, can be used as a water flow switch, and can also be used to measure flow. Three wire connection: red represents the positive pole, black represents the negative pole, and yellow represents the pulse signal; Can be used for constant temperature machines, water control machines, mechanical equipment, water storage and water heaters, etc. The length of the connecting wire and the type of connecting terminal can be set according to customer requirements.
